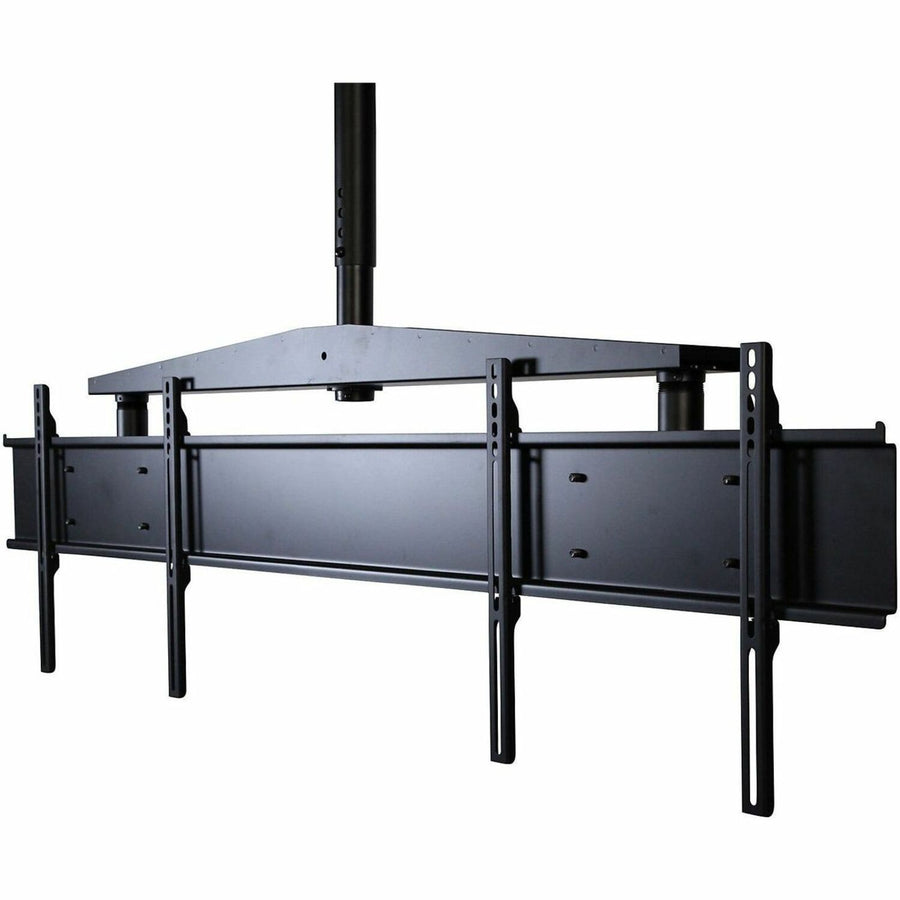

Peerless 37-46-inch Dual Display Ceiling Mount – DST940

The Peerless DST940 is a dual display ceiling mount for two 37-inch to 46-inch flat panel displays. It sets both screens on one plane with a shared adaptor plate, supports 34.02 kg to 68.04 kg, and offers 2 to 20 degrees of tilt. Procure.ae supplies the DST940 as an authorised reseller across the UAE.

The DST940 uses one long adaptor plate that spans both displays, so the two screens sit on the same plane for close alignment. Easy-glide brackets attach each display to the plate, and the displays slide horizontally to meet together for a seamless look. Each display tilts up to 20 degrees to reach its ideal viewing angle. The mount accepts a 600 x 400 mm mounting pattern and has a minimum supported pattern of 100 x 100 mm. Assembly is required.

Type

Dual Display Ceiling Mount

Weight

23.59 kg

Key features

Shared adaptor plate

A single plate spans both displays to keep their faces on the same plane.

Horizontal adjustment

Displays slide together for a seamless appearance.

Universal display adaptors

Adaptors hook quickly onto the adaptor plate for faster installation.

Tilt adjustment

Each display tilts from 2 to 20 degrees.

Load capacity

Supports 34.02 kg to 68.04 kg.

Black powder-coated finish

Powder-coated black finish for ceiling installations.

Specifications

General
Application	Airports, restaurant menu boards
Key Features	Shared adaptor plate, glide bracket attachment, horizontal adjustment, 2-20° tilt, universal display adaptors, assembly required
Model	DST940
Type	Dual Display Ceiling Mount
What's in the Box	Dual display ceiling mount system, 2 x PLCM-2 mounts, 2 x EXT006 poles, adaptor plate, 2 x cross supports, 2 x adaptor bracket sets, assembly hardware

Display
Supported Screen Sizes	37-46 inch (93.98-116.84 cm)

Physical
Adjustability	Horizontal sliding and tilt
Color	Black
Finish	Powder coated
Form Factor	Ceiling mountable
Load Capacity	34.02-68.04 kg
Mounting	Ceiling
Tilt	2-20°
VESA Mount	600 x 400 mm
Weight	23.59 kg

Compliance
Warranty	5 years
