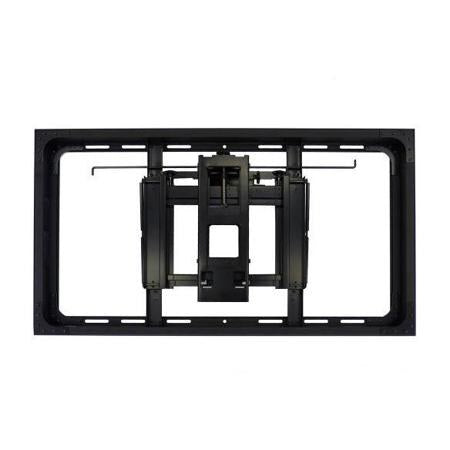

Panasonic Video Wall Installation Mount – TY-VK55LV2

The Panasonic TY-VK55LV2 is an installation mount for building video walls from compatible Panasonic 55-inch displays, including the TH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H and TH-55LFV8. It weighs approx. 21.0 kg and pulls out from 184 mm to 384 mm deep. Procure.ae is an authorised reseller and supplies it in the UAE.

The Panasonic TY-VK55LV2 measures 1215 x 686 x 184 mm when stored and extends to 384 mm deep when pulled out. The mount itself weighs approx. 21.0 kg, and the shipping carton measures 1334 x 211 x 779 mm at a gross weight of approx. 31 kg. Fine adjustment covers a vertical shift of ±7 mm (level) or ±4.5 mm individually per side, a horizontal shift of ±9.5 mm and a tilt of ±1.5°.

The set includes the installation mount, two mount brackets and four surface alignment magnets, together with frame linking screws, nuts, washers, magnet screws and a hexagonal wrench. The manufacturer lists the TH-55LFV50/5, TH-55LFV70, TH-55LFV60/6, TH-55VF1H and TH-55LFV8 as corresponding models. The fitting instructions also cover the smaller TY-VK49LV2, so order the TY-VK55LV2 for 55-inch displays. Bolts for the mounting surface are not included.
