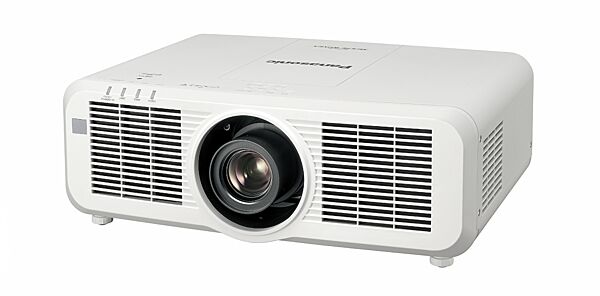

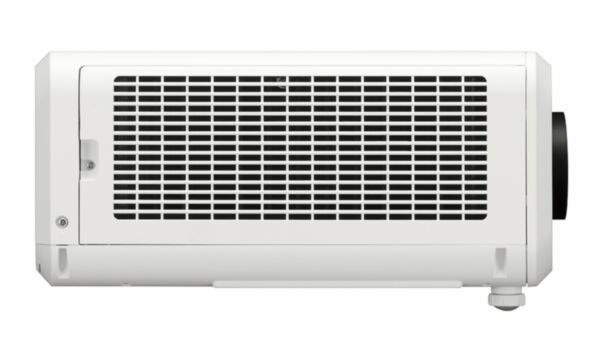

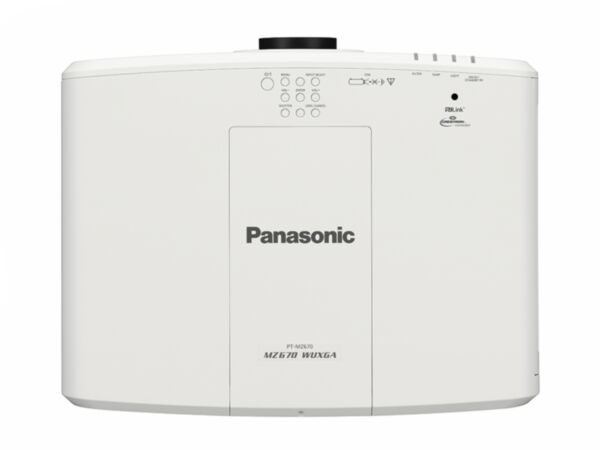

Panasonic Installation Projector LCD Series PT-MZ670/L
- SKU: PT-MZ670
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-MZ670 / MZ670L PT-MZ570 / MZ570L Power supply 100–240 V AC, 50/60 Hz 100–240 V AC, 50/60 Hz Power consumption 525W (Approx. 0.5 W with Standby Mode set to ECO, Approx. 22 W with Standby Mode set to NORMAL) 450W (Approx. 0.5 W... See More
Specification
PT-MZ670 / MZ670L |
PT-MZ570 / MZ570L |
|
---|---|---|
Power supply | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
Power consumption | 525W (Approx. 0.5 W with Standby Mode set to ECO, Approx. 22 W with Standby Mode set to NORMAL) | 450W (Approx. 0.5 W with Standby Mode set to ECO, Approx. 22 W with Standby Mode set to NORMAL) |
LCD panel | ||
Panel size | 19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio) | 19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio) |
Display method | Transparent LCD panel (× 3, R/G/B) | Transparent LCD panel (× 3, R/G/B) |
Drive method | Active matrix | Active matrix |
Pixels | 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels | 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels |
Lens | PT-MZ670: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MZ670L: Optional powered zoom/focus lenses |
PT-MZ570: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MZ570L: Optional powered zoom/focus lenses |
Light source | Laser diode (Class 1) (Class 3R for US models) | Laser diode (Class 1) (Class 3R for US models) |
Filter | x 1, estimated maintenance time: approx. 20,000 hours*1 | x 1, estimated maintenance time: approx. 20,000 hours*1 |
Screen size (diagonal) | 1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio |
1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio |
Brightness*2 | 6,500 lm | 5,500 lm |
Center-to-corner uniformity*2 | 90 % | 90 % |
Contrast | 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2) | 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2) |
Resolution | 1920 × 1200 pixels*3 | 1920 × 1200 pixels*3 |
RGB | fH: 15 kHz–91 kHz, fV: 24 Hz–100 Hz, dot clock: up to 162 MHz | fH: 15 kHz–91 kHz, fV: 24 Hz–100 Hz, dot clock: up to 162 MHz |
Video | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
Optical axis shift | Vertical (from center of screen): ±67 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max. ±60 %, ELW21; cannot use optical axis shift function) Horizontal (from center of screen): ±35 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max ±30%, ELW21; cannot use optical axis shift function) |
Vertical (from center of screen): ±67 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max. ±60 %, ELW21; cannot use optical axis shift function) Horizontal (from center of screen): ±35 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max ±30%, ELW21; cannot use optical axis shift function) |
Keystone correction range*4 | Vertical: ±25 °, horizontal: ±30 ° |
Vertical: ±25 °, horizontal: ±30 ° |
Installation | Horizontal/Vertical, free 360-degree installation | Horizontal/Vertical, free 360-degree installation |
Built-in speaker | 10 W (monaural) | 10 W (monaural) |
Cabinet materials | Molded plastic (PC + ABS) | Molded plastic (PC + ABS) |
Dimensions (W x H x D) | PT-MZ670: 560 x 205*5 x 443 mm (22 1/16˝ x 8 1/16˝ *5 x 17 7/16˝ ) (with supplied lens) PT-MZ670L: 560 x 205*5 x 428 mm (22 1/16˝ x 8 1/16˝ *5 x 16 27/32˝ ) (without lens) |
PT-MZ570: 560 x 205*5 x 443 mm (22 1/16˝ x 8 1/16˝ *5 x 17 7/16˝ ) (with supplied lens) PT-MZ570L: 560 x 205*5 x 428 mm (22 1/16˝ x 8 1/16˝ *5 x 16 27/32˝ ) (without lens) |
Weight*6 | PT-MZ670: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MZ670L: Approximately 16.1 kg (35.5 lbs) (without lens) |
PT-MZ570: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MZ570L: Approximately 16.1 kg (35.5 lbs) (without lens) |
Operating noise*2 | 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode) | 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode) |
Operating environment | Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*7, operating humidity: 20 %–80 % (no condensation) | Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*7, operating humidity: 20 %–80 % (no condensation) |
Applicable software/application | Wireless Manager ME6.4 for Windows/Mac, Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control, Plug and Share, Wireless Projector Apps for iOS/Android | Wireless Manager ME6.4 for Windows/Mac, Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control, Plug and Share, Wireless Projector Apps for iOS/Android |
Supplied accessories | Power cord with power cord holder*8, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual) | Power cord with power cord holder*8, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual) |

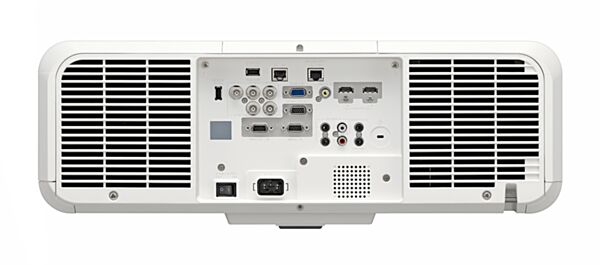

TerminalsPT-MZ670 / MZ670L
|
![]() |
PT-MW630 / MW630L |
PT-MW530 / MW530L |
|
---|---|---|
Power supply | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
Power consumption | 505W (Approx. 0.5 W with Standby Mode set to ECO, Approx. 22 W with Standby Mode set to NORMAL) | 415W (Approx. 0.5 W with Standby Mode set to ECO, Approx. 22 W with Standby Mode set to NORMAL) |
LCD panel | ||
Panel size | 19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio) | 19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio) |
Display method | Transparent LCD panel (× 3, R/G/B) | Transparent LCD panel (× 3, R/G/B) |
Drive method | Active matrix | Active matrix |
Pixels | 1,024,000 (1280 × 800) × 3, total of 3,072,000 pixels | 1,024,000 (1280 × 800) × 3, total of 3,072,000 pixels |
Lens | PT-MW630: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MW630L: Optional powered zoom/focus lenses |
PT-MW530: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MW530L: Optional powered zoom/focus lenses |
Light source | Laser diode (Class 1) (Class 3R for US models) | Laser diode (Class 1) (Class 3R for US models) |
Filter | x 1, estimated maintenance time: approx. 20,000 hours*1 | x 1, estimated maintenance time: approx. 20,000 hours*1 |
Screen size (diagonal) | 1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio |
1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio |
Brightness*2 | 6,500 lm | 5,500 lm |
Center-to-corner uniformity*2 | 90 % | 90 % |
Contrast | 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2) | 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2) |
Resolution | 1280 × 800 pixels*3 | 1280 × 800 pixels*3 |
RGB | fH: 15 kHz–91 kHz, fV: 24 Hz–100 Hz, dot clock: up to 162 MHz | fH: 15 kHz–91 kHz, fV: 24 Hz–100 Hz, dot clock: up to 162 MHz |
Video | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
Optical axis shift | Vertical (from center of screen): ±67 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max. ±60 %, ELW21; cannot use optical axis shift function) Horizontal (from center of screen): ±35 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max ±30%, ELW21; cannot use optical axis shift function) |
Vertical (from center of screen): ±67 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max. ±60 %, ELW21; cannot use optical axis shift function) Horizontal (from center of screen): ±35 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max ±30%, ELW21; cannot use optical axis shift function) |
Keystone correction range*4 | Vertical: ±35 °, horizontal: ±35 ° (Up to a total of ±55 ° during simultaneous horizontal and vertical correction) | Vertical: ±35 °, horizontal: ±35 ° (Up to a total of ±55 ° during simultaneous horizontal and vertical correction) |
Installation | Horizontal/Vertical, free 360-degree installation | Horizontal/Vertical, free 360-degree installation |
Built-in speaker | 10 W (monaural) | 10 W (monaural) |
Cabinet materials | Molded plastic (PC + ABS) | Molded plastic (PC + ABS) |
Dimensions (W x H x D) | PT-MW630: 560 x 205*5 x 443 mm (22 1/16˝ x 8 1/16˝ *5 x 17 7/16˝ ) (with supplied lens) PT-MW630L: 560 x 205*5 x 428 mm (22 1/16˝ x 8 1/16˝ *5 x 16 27/32˝ ) (without lens) |
PT-MW530: 560 x 205*5 x 443 mm (22 1/16˝ x 8 1/16˝ *5 x 17 7/16˝ ) (with supplied lens) PT-MW530L: 560 x 205*5 x 428 mm (22 1/16˝ x 8 1/16˝ *5 x 16 27/32˝ ) (without lens) |
Weight*6 | PT-MW630: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MW630L: Approximately 16.1 kg (35.5 lbs) (without lens) |
PT-MW530: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MW530L: Approximately 16.1 kg (35.5 lbs) (without lens) |
Operating noise*2 | 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode) | 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode) |
Operating environment | Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*7, operating humidity: 20 %–80 % (no condensation) | Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*7, operating humidity: 20 %–80 % (no condensation) |
Applicable software/application | Wireless Manager ME6.4 for Windows/Mac, Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control, Plug and Share, Wireless Projector Apps for iOS/Android | Wireless Manager ME6.4 for Windows/Mac, Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control, Plug and Share, Wireless Projector Apps for iOS/Android |
Supplied accessories | Power cord with power cord holder*8, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual) | Power cord with power cord holder*8, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual) |
TerminalsPT-MW630 / MW630L
|
![]() |
