Panasonic Installation Projector PT-DZ780/PT-DW750/PT-DX820

Panasonic Installation Projector PT-DZ780/PT-DW750/PT-DX820

SKU: PT-DZ780

Actual Stock Can Be Confirmed After Placing the Order.

Specification Model PT-DZ780 PT-DW750 PT-DX820 Power supply 100-240 V AC, 9.0-4.0 A, 50/60 Hz Power consumption 790 W (810 VA)(0.3 W when STANDBY MODE set to ECO*1, 3 W when STANDBY MODE set to NORMAL) Dissipation BTU 2,696 BTU/hour (without light output: 2,601 BTU/hour)... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specification

Model			PT-DZ780	PT-DW750	PT-DX820
Power supply			100-240 V AC, 9.0-4.0 A, 50/60 Hz
Power consumption			790 W (810 VA) (0.3 W when STANDBY MODE set to ECO*1, 3 W when STANDBY MODE set to NORMAL)
Dissipation BTU			2,696 BTU/hour (without light output: 2,601 BTU/hour)
DLP™ chip	Panel size		17.0 mm (0.67 in) diagonal (16:10 aspect ratio)	16.5 mm (0.65 in) diagonal (16:10 aspect ratio)	17.8 mm (0.7 in) diagonal (4:3 aspect ratio)
	Display method		DLP™ chip x 1, DLP™ projection system
	Pixels		2,304,000 (1,920 x 1,200) pixels	1,024,000 (1,280 x 800) pixels	786,432 (1,024 x 768) pixels
Lens	PT-DZ780/ DW750/ DX820		Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7 mm	Powered zoom (throw ratio 1.8-2.5:1), powered focus F 1.7-1.9, f 25.6-35.7 mm

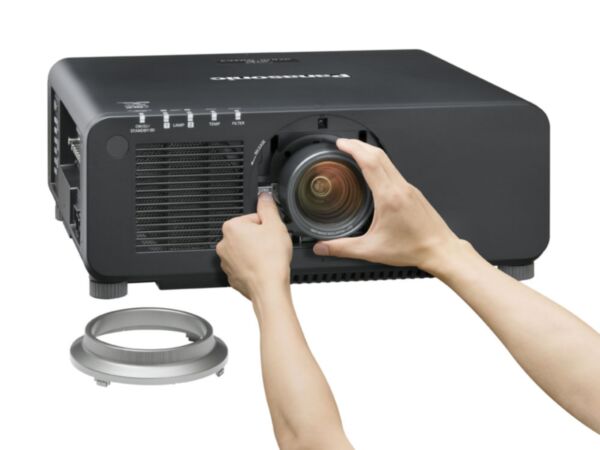

Lens	PT-DZ780L/ DW750L/ DX820L		Optional powered zoom/focus lenses and fixed-focus lens
Lamp			310 W UHM lamp x 2

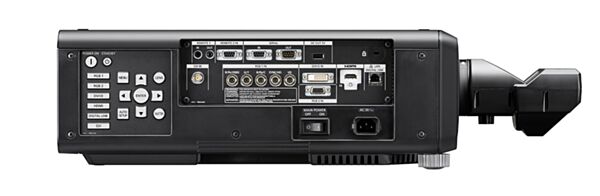

Screen size (diagonal)			1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with the ET-DLE055, 2.54-8.89 m (100-350 in) with the ET-DLE030, 16:10 aspect ratio		1.27–15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with the ET-DLE055, 2.54-8.89 m (100-350 in) with the ET-DLE030, 4:3 aspect ratio
Brightness*2			7,000 lm (dual-lamp, LAMP MODE: NORMAL)		8,200 lm (dual-lamp, LAMP MODE: NORMAL)
Center-to-corner uniformity*2			90 %
Contrast*2			3,000:1 (full on/full off)		2,400:1 (full on/full off)
Resolution			1,920 x 1,200 pixels	1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)	1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
Scanning frequency	SDI	3G-SDI	SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, [YPBPR 4:2:2 10-bit] 1125(1080)/60p, 1125(1080)/50p	-
		HD-SDI	SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 750(720)/60p, 750(720)/50p, 1125(1035)/60i, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p	-
		SD-SDI	SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 525i(480i), 625i(576i)	-
	HDMI*3/DVI-D		fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
	RGB		fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz
	YPBPR (YCBCR)		fH: 15.75 kHz, fV: 60 Hz [480i (525i)] fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
	Video/YC		fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*4	Vertical		+50%, -16% from center of screen (powered)	+60%, -16% from center of screen (powered)	+50%, -13% from center of screen (powered)*5
Optical axis shift*4	Horizontal		+30%, -10% (+28%, -10% with the ET-DLE085) from center of screen (powered)
Keystone correction range			Vertical ±40°67, horizontal ±15°
Keystone correction range with the optional upgrade kit ET-UK20*8			Vertical ±45°679, horizontal ±40°10	-
Installation			Ceiling/floor, front/rear

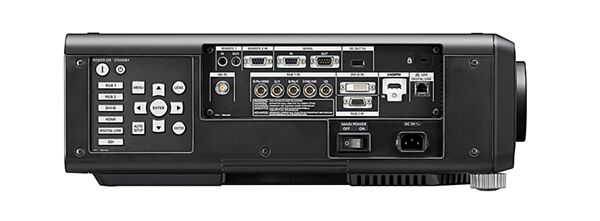

Terminals	SDI IN		BNC x 1 (3G/HD/SD-SDI)	-
	HDMI IN		HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
	DVI-D IN		DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
	RGB 1 IN		BNC x 5 (RGB/YPBPR/YCBCR/YC/Video x 1)
	RGB 2 IN		D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
	SERIAL IN		D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
	SERIAL OUT		D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
	REMOTE 1 IN		M3 x 1 for wired remote control
	REMOTE 1 OUT		M3 x 1 for link control (for wired remote control)
	REMOTE 2 IN		D-sub 9-pin (female) x 1 for external control (parallel)
	LAN / DIGITAL LINK		RJ-45 x 1 (for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™, Deep Color, compatible with HDCP)
	USB		DC OUT (5 V, 0.9 A)
Cabinet materials			Molded plastic
Dimensions (W x H x D)	PT-DZ780/ DW750/ DX820		498 x 17511 x 521 mm (19-19/32 x 6-7/811 x 20-1/2 in) (with supplied lens)
Dimensions (W x H x D)	PT-DZ780L/ DW750L/ DX820L		498 x 17511 x 508 mm (19-19/32 x 6-7/811 x 20 in) (without lens)
Weight*12	PT-DZ780/ DW750/ DX820		Approximately 17.8 kg (39.2 lbs) (with supplied lens)
Weight*12	PT-DZ780L/ DW750L/ DX820L		Approximately 17.0 kg (37.5 lbs) (without lens)
Operation noise*2			30 dB (dual lamp operation, lamp mode: NORMAL), 28 dB (dual lamp operation, lamp mode: ECO)
Operating temperature			0°C-45°C [32°F-113°F] (less than 1,400 m [4,593 ft] above sea level), 0°C-40°C [32°F-104°F] (between 1,400 m and 2,700 m [4,593 ft and 8,858 ft] above sea level)*13
Operating humidity			10-80 % (no condensation)
Applicable software			Logo Transfer Software, Multi Projector Monitoring & Control Software, Geometry Manager Pro (included in the ET-UK20), ET-CUK10*14	Logo Transfer Software, Multi Projector Monitoring & Control Software
Supplied accessories			Power cord with secure lock, wireless/wired remote control unit, batteries (R03/AAA type x 2), software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)
