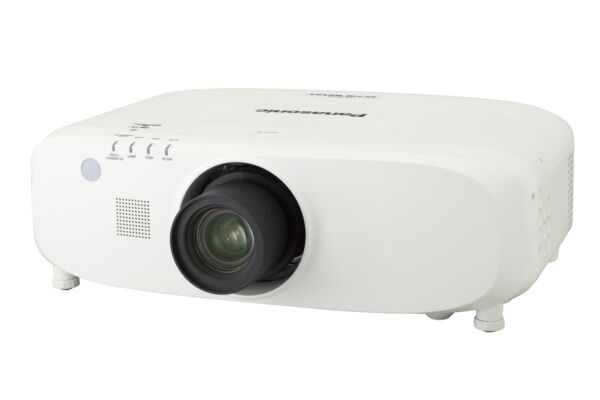

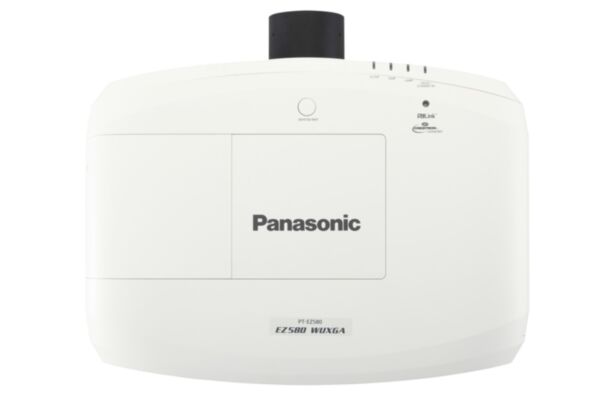

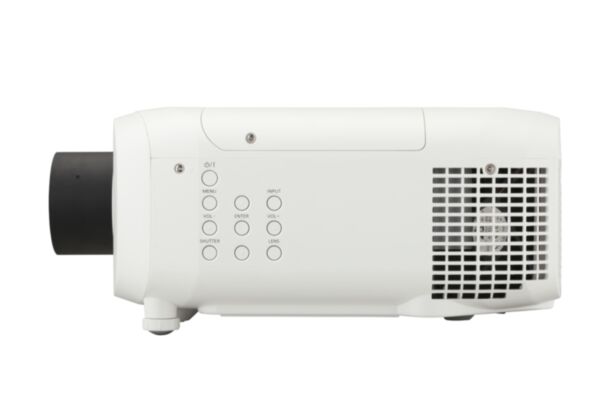

Panasonic Installation Projector LCD Series PT-EZ580
- SKU: PT-EZ580
Actual Stock Can Be Confirmed After Placing the Order.
Specification Model PT-EZ580 / EZ580L PT-EW640 / EW640L PT-EW540 / EW540L Power supply 100-240 V AC, 50/60 Hz Power consumption 510 W (0.3 W whenSTANDBY MODEset to ECO*1,10 W when STANDBY MODEset to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to... See More
Specification
Model |
PT-EZ580 / EZ580L |
PT-EW640 / EW640L |
PT-EW540 / EW540L |
|
---|---|---|---|---|
Power supply | 100-240 V AC, 50/60 Hz | |||
Power consumption | 510 W (0.3 W when STANDBY MODE set to ECO*1, 10 W when STANDBY MODE set to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to ON)) |
495 W (0.3 W when STANDBY MODE set to ECO*1, 10 W when STANDBY MODE set to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to ON)) |
485 W (0.3 W when STANDBY MODE set to ECO*1, 4 W when STANDBY MODE set to NORMAL (34 W when STANDBY MODE of AUDIO SETTING set to ON)) |
|
LCD panel | Panel size | 19.0 mm (0.76 in) diagonal (16:10 aspect ratio) | ||
Display method | Transparent LCD panel (x 3, R/G/B) | |||
Drive method | Active matrix | |||
Pixels | 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels |
||
Lens | PT-EZ580/ EW640/ EW540 |
Powered zoom (throw ratio 1.7-2.8:1), powered focus F 1.7-2.3, f 26.9-45.4 mm | ||
PT-EZ580L/ EW640L/ EW540L |
Optional powered zoom/focus lenses and fixed-focus lens | |||
Lamp | 335 W UHM lamp x 1, lamp replacement cycle (lamp power: Normal/Eco): 4,000 hours/4,500 hours*2 |
|||
Screen size (diagonal) | 1.02-10.16 m (40-400 in), 1.52-10.16 m (60-400 in) with the ET-ELW22, 16:10 aspect ratio |
|||
Brightness*3 | 5,400 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens) |
5,800 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens) |
5,000 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens) |
|
Center-to-corner uniformity*3 | 90 % | |||
Contrast*3 | 5,000:1 (full on/full off, lamp power: Auto, iris: On) |
2,000:1 (full on/full off, lamp power: Auto) |
||
Resolution | 1,920 x 1,200 pixels | 1,280 x 800 pixels*4 | ||
Scanning frequency |
DVI-D/ HDMI/ DiplayPort/ DIGITAL LINK |
Dot clock: 25-162 MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP) DisplayPort and DIGITAL LINK not included on PT-EW540/EW540L. |
||
RGB | fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz | |||
YPBPR (YCBCR) |
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
|||
Video/YC | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|||
Optical axis shift*5 |
Vertical | ±60 % (±50 % with the ET-ELW22) from center of screen (powered) | ||
Horizontal | ±10 % from center of screen (powered) | |||
Keystone correction range*6 | Vertical ±40°, horizontal ±30° | |||
Installation | Ceiling/floor, front/rear | |||
Built-in speaker | 3.7 cm round shape x 1, output power 10.0 W (monaural) | |||

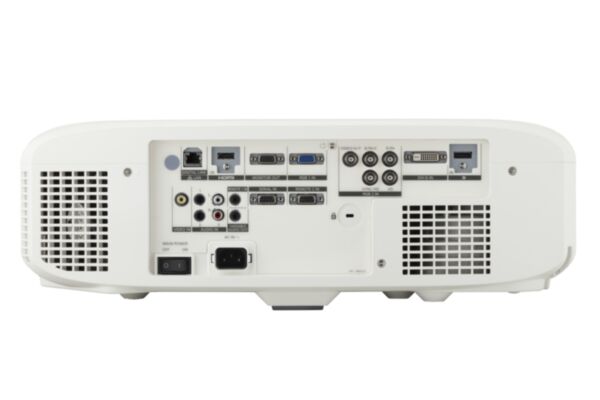

Terminals | DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
||
HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
|||
DisplayPort IN | DP-20P x 1 (DisplayPort 1.1, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
- | ||
RGB 1 IN | D-Sub HD 15-pin (female) x 1 | |||
RGB 2 IN | BNC x 5 (RGB or YPBPR/YCBCR x 1) shared with VIDEO IN (S-video/composite video) |
|||
VIDEO IN | Pin jack x 1 (composite video) | |||
MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR) | |||
AUDIO IN | Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2) | |||
AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |||
SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |||
REMOTE 1 IN | M3 x 1 for wired remote control | |||
REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |||
LAN / DIGITAL LINK |
RJ-45 x 1 (for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible) |
RJ-45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™ |
||
Operation noise*3 | 35 dB (lamp power: NORMAL), 29 dB (lamp power: ECO) | |||

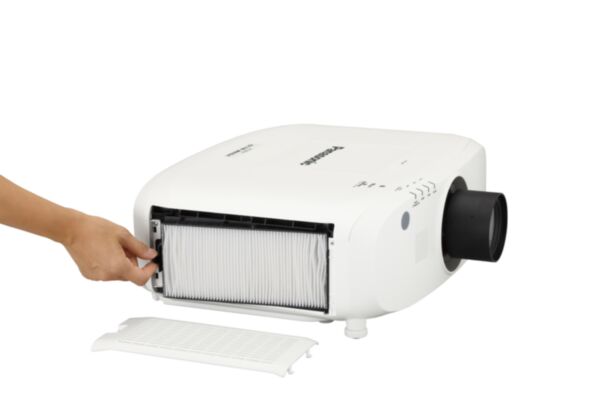

Filter | x 1, recommended replacement cycle: 17,000 hours*7 | |||
Mechanical shutter | Yes | - (AV mute) | ||
Cabinet materials | Molded plastic (PC + ABS) | |||
Dimensions (W x H x D) |
PT-EZ580/ EW640/ EW540 |
530 x 177*8 x 445 mm (20-7/8 x 6-31/32*8 x 17-1/2 in) (with supplied lens) | ||
PT-EZ580L/ EW640L/ EW540L |
530 x 177*8 x 385 mm (20-7/8 x 6-31/32*8 x 15-5/32 in) (without lens) | |||
Weight*9 | PT-EZ580/ EW640/ EW540 |
Approximately 10.6 kg (23.4 lbs) (with supplied lens) | ||
PT-EZ580L/ EW640L/ EW540L |
Approximately 9.8 kg (21.6 lbs) (without lens) | |||
Operating environment | Operating temperature: 0-45 °C (32-113 °F)*10, operating humidity: 10-80 % (no condensation) |
|||

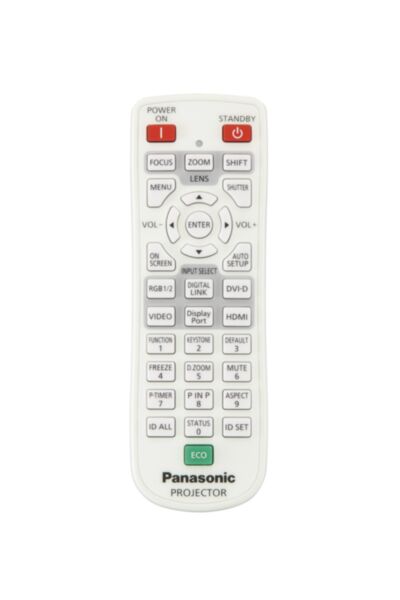

Supplied accessories | Power cord (including power cord holder) x 1*11, wireless/wired remote control unit x 1, batteries for remote control (AAA/R03/LR03 type) x 2, software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x 1 |
PT-EX610 / EX510
Model |
PT-EX610 / EX610L |
PT-EX510 / EX510L |
|
---|---|---|---|
Power supply | 100-240 V AC, 50/60 Hz | ||
Power consumption | 495 W (0.3 W when STANDBY MODE set to ECO*1, 10 W when STANDBY MODE set to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to ON)) |
485 W (0.3 W when STANDBY MODE set to ECO*1, 4 W when STANDBY MODE set to NORMAL (34 W when STANDBY MODE of AUDIO SETTING set to ON)) |
|
LCD panel | Panel size | 20.0 mm (0.79 in) diagonal (4:3 aspect ratio) | |
Display method | Transparent LCD panel (x 3, R/G/B) | ||
Drive method | Active matrix | ||
Pixels | 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels | ||
Lens | PT-EX610/ EX510 |
Powered zoom (throw ratio 1.7-2.8:1), powered focus F 1.7-2.3, f 26.9-45.4 mm | |
PT-EX610L/ EX510L |
Optional powered zoom/focus lenses and fixed-focus lens | ||
Lamp | 335 W UHM lamp x 1, lamp replacement cycle (lamp power: Normal/Eco): 4,000 hours/4,500 hours*2 |
||
Screen size (diagonal) | 1.02-10.16 m (40-400 in), 1.52-10.16 m (60-400 in) with the ET-ELW22, 4:3 aspect ratio |
||
Brightness*3 | 6,200 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens) |
5,300 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens) |
|
Center-to-corner uniformity*3 | 90 % | ||
Contrast*3 | 5,000:1 (full on/full off, lamp power: Auto, iris: On) |
2,000:1 (full on/full off, lamp power: Auto) |
|
Resolution | 1,024 x 768 pixels*4 | ||
Scanning frequency |
DVI-D/ HDMI/ DiplayPort/ DIGITAL LINK |
Dot clock: 25-162 MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP) DisplayPort and DIGITAL LINK not included on PT-EX510/EX510L. |
|
RGB | fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz | ||
YPBPR (YCBCR) |
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
||
Video/YC | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
||
Optical axis shift*5 |
Vertical | ±50 % (±35 % with the ET-ELW22) from center of screen (powered) | |
Horizontal | ±10 % from center of screen (powered) | ||
Keystone correction range*6 | Vertical ±40°, horizontal ±30° | ||
Installation | Ceiling/floor, front/rear | ||
Built-in speaker | 3.7 cm round shape x 1, output power 10.0 W (monaural) | ||
Terminals | DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
|
HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
||
DisplayPort IN | DP-20P x 1 (DisplayPort 1.1, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
- | |
RGB 1 IN | D-Sub HD 15-pin (female) x 1 | ||
RGB 2 IN | BNC x 5 (RGB or YPBPR/YCBCR x 1) shared with VIDEO IN (S-video/composite video) |
||
VIDEO IN | Pin jack x 1 (composite video) | ||
MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR) | ||
AUDIO IN | Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2) | ||
AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | ||
SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | ||
REMOTE 1 IN | M3 x 1 for wired remote control | ||
REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | ||
LAN / DIGITAL LINK |
RJ-45 x 1 (for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible) |
RJ-45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™ |
|
Operation noise*3 | 35 dB (lamp power: NORMAL), 29 dB (lamp power: ECO) | ||
Filter | x 1, recommended replacement cycle: 17,000 hours*7 | ||
Mechanical shutter | Yes | - (AV mute) | |
Cabinet materials | Molded plastic (PC + ABS) | ||
Dimensions (W x H x D) |
PT-EX610/ EX510 |
530 x 177*8 x 445 mm (20-7/8 x 6-31/32*8 x 17-1/2 in) (with supplied lens) | |
PT-EX610L/ EX510L |
530 x 177*8 x 385 mm (20-7/8 x 6-31/32*8 x 15-5/32 in) (without lens) | ||
Weight*9 | PT-EX610/ EX510 |
Approximately 10.6 kg (23.4 lbs) (with supplied lens) | |
PT-EX610L/ EX510L |
Approximately 9.8 kg (21.6 lbs) (without lens) | ||
Operating environment | Operating temperature: 0-45 °C (32-113 °F)*10, operating humidity: 10-80 % (no condensation) |
||
Supplied accessories | Power cord (including power cord holder) x 1*11, wireless/wired remote control unit x 1, batteries for remote control (AAA/R03/LR03 type) x 2, software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x 1 |
No datasheet available.
