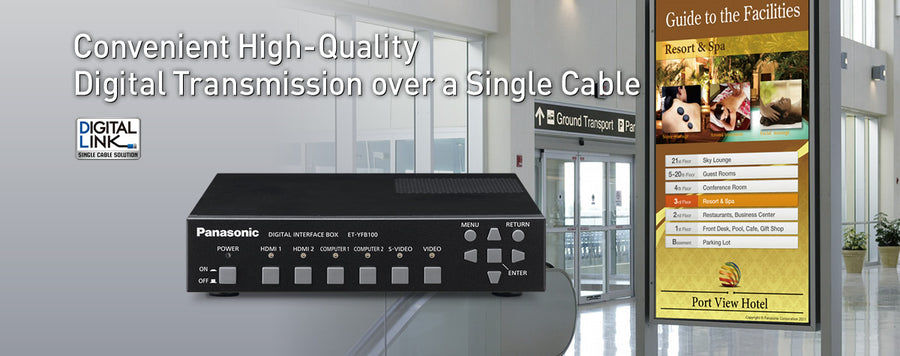

Panasonic DIGITAL LINK Interface Box – ET-YFB100G
The Panasonic ET-YFB100G is a DIGITAL LINK interface box for ceiling-mounted and other permanent AV installations. It takes HDMI, RGB, composite and S-Video sources and sends HD video, audio and control signals over a single CAT5e cable up to 100 m. Procure.ae supplies the ET-YFB100G across the UAE.
The ET-YFB100G has a DIGITAL LINK output that transmits uncompressed HD digital video, audio and control signals (Ethernet and RS-232C) over one CAT5e (STP) or higher cable for up to 100 m (328 ft). Its inputs include two HDMI, two RGB (D-sub 15-pin) computer inputs, a composite video input and an S-Video input, plus audio in and out. A separate audio output lets sound play when the display is switched off. Digital Cinema Reality converts interlaced video into progressive images.
The ET-YFB100G works with DIGITAL LINK-ready Panasonic displays and projectors, and its input can be selected with the remote control of a compatible Panasonic display. Because DIGITAL LINK is based on HDBaseT technology, it can also feed other manufacturers' HDBaseT equipment, such as Crestron DigitalMedia 8G+ and Extron XTP, where the manufacturer's compatibility list confirms support. Brackets support server rack (EIA) or countertop installation.
Type
Digital Interface Box
Weight
1.15 kg (without AC adaptor)
- Single-cable DIGITAL LINK
- Multiple input types
- Automatic PC scaling
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Single-cable DIGITAL LINK
One CAT5e (STP) or higher cable carries HD video, audio and control up to 100 m.
02
Multiple input types
Two HDMI, two RGB (D-sub 15-pin), composite and S-Video inputs.
03
Automatic PC scaling
PC signals resize to the display panel resolution when the output is set to AUTO.
04
Eco mode
Stops the DIGITAL LINK output automatically when no input signal is detected.
05
Rack or countertop mounting
Server rack (EIA) brackets, countertop brackets and four legs are supplied.
06
Serial, parallel and LAN control
RS-232C serial, parallel remote and 10BASE-T/100BASE-TX LAN ports for external control.
Specifications
18 specificationsGeneral
ControlsRS-232C serial, parallel remote, LAN
Key FeaturesDIGITAL LINK output, up to 100 m over CAT5e, two HDMI and two RGB inputs, automatic PC scaling, Eco mode, closed caption support, rack or countertop mounting, RS-232C and LAN control
ModelET-YFB100G
TypeDigital Interface Box
What's in the BoxAC adaptor, 3 power cords (2 m), rack and countertop brackets, screws, 4 legs
Audio
Audio OutStereo mini jack (M3), variable
Connectivity
Cable StandardCAT5e (STP) or higher, up to 100 m
ConnectivityDIGITAL LINK (HDBaseT-based), RS-232C, parallel remote, LAN
Ethernet10BASE-T / 100BASE-TX (RJ-45)
HDMI Inputs2
PortsHDMI In × 2, RGB (D-sub 15-pin) In × 2, Composite In × 1, S-Video In × 1, Audio In × 1, Audio Out × 1, DIGITAL LINK Out × 1, RS-232C × 1, Parallel Remote × 1, LAN × 1
Power
Power Consumption16 W (0.2 W with power off)
Power SourceDC 16 V (AC adaptor supplied)
Physical
Dimensions210 x 44 x 250 mm (W x H x D)
MountingServer rack (EIA) or countertop, with legs
Operating Humidity20% to 80% (no condensation)
Operating Temperature0 to 40 °C
Weight1.15 kg (without AC adaptor)
Questions
Can’t find your answer? Ask on WhatsApp
What does the ET-YFB100G do?
The ET-YFB100G is a DIGITAL LINK interface box. It takes HDMI, RGB, composite and S-Video sources and sends video, audio and control signals to a DIGITAL LINK-ready display over one cable. It suits ceiling-mounted and other permanent installations where cabling needs to be simplified.
How far can the ET-YFB100G transmit a signal?
Up to 100 m (328 ft) over a single CAT5e (STP) or higher cable. The signal stays digital, so the manufacturer states that image and sound quality do not degrade over that distance. Eco mode stops the output when no input signal is detected.
Can the ET-YFB100G be mounted in a server rack?
Yes. Brackets for server rack (EIA standard) installation are included, along with countertop brackets, four legs and screws. The unit measures 210 x 44 x 250 mm (W x H x D) and weighs about 1.15 kg without its AC adaptor.
