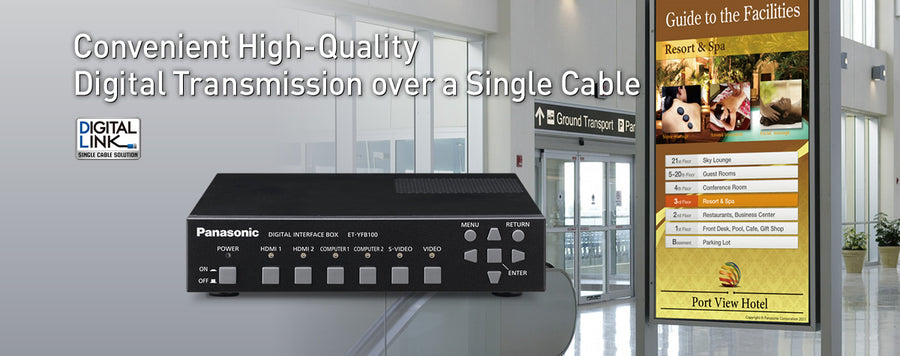

Panasonic DIGITAL LINK Interface Box – ET-YFB100G

The Panasonic ET-YFB100G is a DIGITAL LINK interface box for ceiling-mounted and other permanent AV installations. It takes HDMI, RGB, composite and S-Video sources and sends HD video, audio and control signals over a single CAT5e cable up to 100 m. Procure.ae supplies the ET-YFB100G across the UAE.

The ET-YFB100G has a DIGITAL LINK output that transmits uncompressed HD digital video, audio and control signals (Ethernet and RS-232C) over one CAT5e (STP) or higher cable for up to 100 m (328 ft). Its inputs include two HDMI, two RGB (D-sub 15-pin) computer inputs, a composite video input and an S-Video input, plus audio in and out. A separate audio output lets sound play when the display is switched off. Digital Cinema Reality converts interlaced video into progressive images.

The ET-YFB100G works with DIGITAL LINK-ready Panasonic displays and projectors, and its input can be selected with the remote control of a compatible Panasonic display. Because DIGITAL LINK is based on HDBaseT technology, it can also feed other manufacturers' HDBaseT equipment, such as Crestron DigitalMedia 8G+ and Extron XTP, where the manufacturer's compatibility list confirms support. Brackets support server rack (EIA) or countertop installation.

Type

Digital Interface Box

Weight

1.15 kg (without AC adaptor)

Key features

Single-cable DIGITAL LINK

One CAT5e (STP) or higher cable carries HD video, audio and control up to 100 m.

Multiple input types

Two HDMI, two RGB (D-sub 15-pin), composite and S-Video inputs.

Automatic PC scaling

PC signals resize to the display panel resolution when the output is set to AUTO.

Eco mode

Stops the DIGITAL LINK output automatically when no input signal is detected.

Rack or countertop mounting

Server rack (EIA) brackets, countertop brackets and four legs are supplied.

Serial, parallel and LAN control

RS-232C serial, parallel remote and 10BASE-T/100BASE-TX LAN ports for external control.

Specifications

General
Controls	RS-232C serial, parallel remote, LAN
Key Features	DIGITAL LINK output, up to 100 m over CAT5e, two HDMI and two RGB inputs, automatic PC scaling, Eco mode, closed caption support, rack or countertop mounting, RS-232C and LAN control
Model	ET-YFB100G
Type	Digital Interface Box
What's in the Box	AC adaptor, 3 power cords (2 m), rack and countertop brackets, screws, 4 legs

Audio
Audio Out	Stereo mini jack (M3), variable

Connectivity
Cable Standard	CAT5e (STP) or higher, up to 100 m
Connectivity	DIGITAL LINK (HDBaseT-based), RS-232C, parallel remote, LAN
Ethernet	10BASE-T / 100BASE-TX (RJ-45)
HDMI Inputs	2
Ports	HDMI In × 2, RGB (D-sub 15-pin) In × 2, Composite In × 1, S-Video In × 1, Audio In × 1, Audio Out × 1, DIGITAL LINK Out × 1, RS-232C × 1, Parallel Remote × 1, LAN × 1

Power
Power Consumption	16 W (0.2 W with power off)
Power Source	DC 16 V (AC adaptor supplied)

Physical
Dimensions	210 x 44 x 250 mm (W x H x D)
Mounting	Server rack (EIA) or countertop, with legs
Operating Humidity	20% to 80% (no condensation)
Operating Temperature	0 to 40 °C
Weight	1.15 kg (without AC adaptor)
