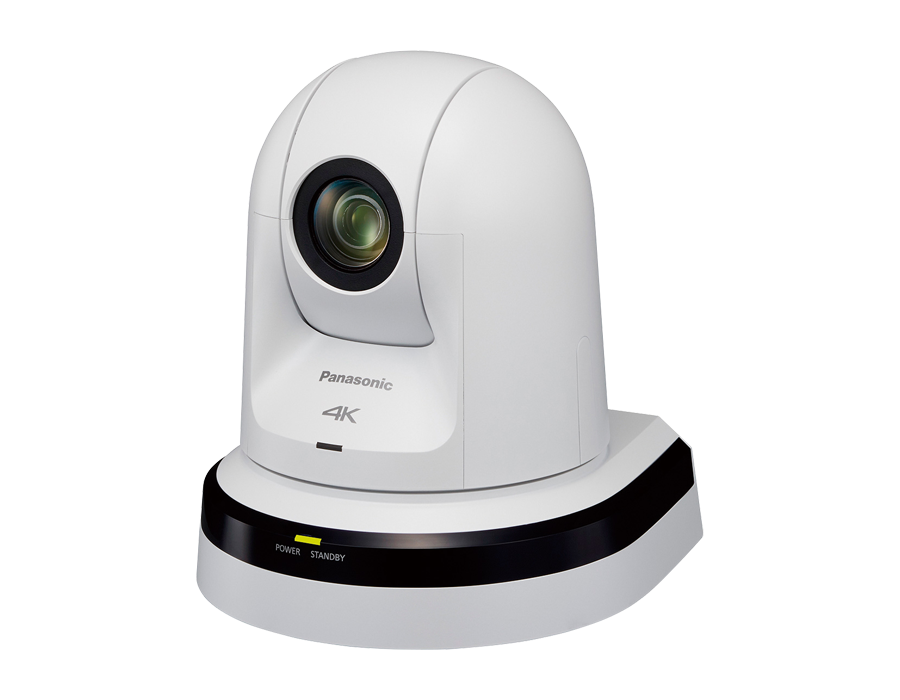

Panasonic 4K PTZ Integrated Camera with NDI HX1 – AW-UN70
The Panasonic AW-UN70 is a 4K PTZ integrated camera with NDI HX1 built in, for IP video streaming, conferences and lecture capture. It has a 20x optical zoom lens and outputs 4K UHD over HDMI, 3G/HD-SDI, USB and IP. Procure.ae supplies the AW-UN70 across the UAE.
The AW-UN70 uses a 1/2.3-type MOS sensor and a 20x optical zoom lens, F1.8 to F3.6, with a focal length of 4.08 to 81.6 mm. Super resolution extends the zoom to 30x, and minimum illumination is 0.7 lx at 50 IRE with 59.94 Hz. Video can be output as 4K (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP, and recorded as MP4 to a microSD card. Panasonic lists NDI HX1 as built into this model, which sends video over the network. Pan speed reaches 300 degrees per second in preset movements and 90 degrees per second in manual operation.
The AW-UN70 suits IP video streaming, conferences, lecture capture, wedding and funeral halls, and event production, where a 4K source is needed on the network as well as on local outputs. It connects through HDMI, 3G/HD-SDI, USB Mini-B and LAN, with RS-232C and RS-422 for serial control. It works with the AW-RP50, AW-RP120G and AK-HRP200G controllers, and Panasonic also lists compatibility with the KAIROS IT/IP platform. It can sit on a desk or be suspended from a ceiling.
Resolution
3840 x 2160 (4K UHD)
Speed
Preset up to 300°/s; manual up to 9...
Type
PTZ Camera
Weight
1.5 kg
- NDI HX1 built in
- 4K UHD output
- 20x optical zoom
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
NDI HX1 built in
NDI HX1 is built into the AW-UN70 for IP video streaming, as listed by Panasonic.
02
4K UHD output
Outputs 4K UHD (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP.
03
20x optical zoom
F1.8 to F3.6 lens with 20x optical zoom and super resolution up to 30x.
04
Wide pan and tilt range
Pan of ±175 degrees and tilt from -30 to 90 degrees.
05
Fast preset movement
Preset movement up to 300 degrees per second, and manual movement up to 90 degrees per second.
06
USB video output
Outputs UVC video and USB audio at up to 3840 x 2160, at a maximum of 30 fps.
07
microSD recording
Records MP4 to a microSD card, with 3840 x 2160 at 29.97p up to 72 Mbps.
08
PoE+ or 12 V power
Supports PoE+ (IEEE 802.3at) for lower installation costs, or a DC 12 V adapter.
Specifications
23 specificationsGeneral
ControlsAW-RP50, AW-RP120G, AK-HRP200G
Key Features4K UHD output, 20x optical zoom, pan ±175°, tilt -30° to 90°, USB UVC video, microSD recording, PoE+ or 12 V DC power, 0.7 lx minimum illumination
ModelAW-UN70
TypePTZ Camera
Display
Resolution3840 x 2160 (4K UHD)
Zoom20x optical; super resolution 30x
Performance
SpeedPreset up to 300°/s; manual up to 90°/s
Storage Conditions-20 to 50 °C
Audio
Audio InStereo mini-jack 3.5 mm (mic/line)
Connectivity
PoEPoE+ (IEEE 802.3at)
PortsHDMI × 1, 3G/HD-SDI (BNC) × 1, LAN (RJ-45) × 1, RS-232C × 2, RS-422 (RJ-45) × 1, USB Mini-B × 1, microSD slot × 1, G/L IN (BNC) × 1
ProtocolsTCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, FTP
SD Card SlotmicroSD (MP4 recording)
USB PortsUSB Mini-B × 1 (UVC video output)
Power
Power Consumption1.3 A (AC adapter), 0.5 A (PoE+)
Power SourceDC 12 V adapter or PoE+ (IEEE 802.3at)
Physical
ColorPearl white or metallic black
Dimensions160 x 186 x 179 mm (W x H x D)
MountingDesktop or suspended (hanging)
Operating Humidity20% to 90% RH (no condensation)
Operating Temperature0 to 40 °C
RotationPan ±175°, tilt -30° to 90°
Weight1.5 kg
Downloads
Manufacturer documents for the Panasonic 4K PTZ Integrated Camera with NDI HX1 – AW-UN70 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the AW-UN70 have NDI?
Yes. Panasonic lists NDI HX1 as built into the AW-UN70, for IP video transmission over the network. The camera also streams JPEG and H.264 over IP, so standard IP video systems can receive its output.
Does the AW-UN70 output 4K?
Yes. It outputs 4K UHD (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP. Its USB output runs at a maximum of 30 fps in 59.94 Hz mode. The manufacturer lists 4K output via HDMI, USB and LAN.
Can the AW-UN70 be powered over Ethernet?
Yes. It supports PoE+ (IEEE 802.3at) and can also run from a DC 12 V AC adapter. Panasonic lists PoE+ current at 0.5 A and the adapter at 1.3 A.
Can the AW-UN70 be controlled over IP?
Yes. It has a LAN connector for IP control with auto-detection of straight and crossover cables. Controllers listed by Panasonic include the AW-RP50, AW-RP120G and AK-HRP200G. Panasonic also notes IP control with image monitoring from PC, Mac and mobile terminals.
Is the AW-UN70 suitable for wedding and funeral halls?
Yes. Panasonic positions the 4K integrated camera for wedding and funeral hall content production, lecture recording and conferences. It also suits lecture recording and conferences, which Panasonic lists for this 4K integrated camera.
