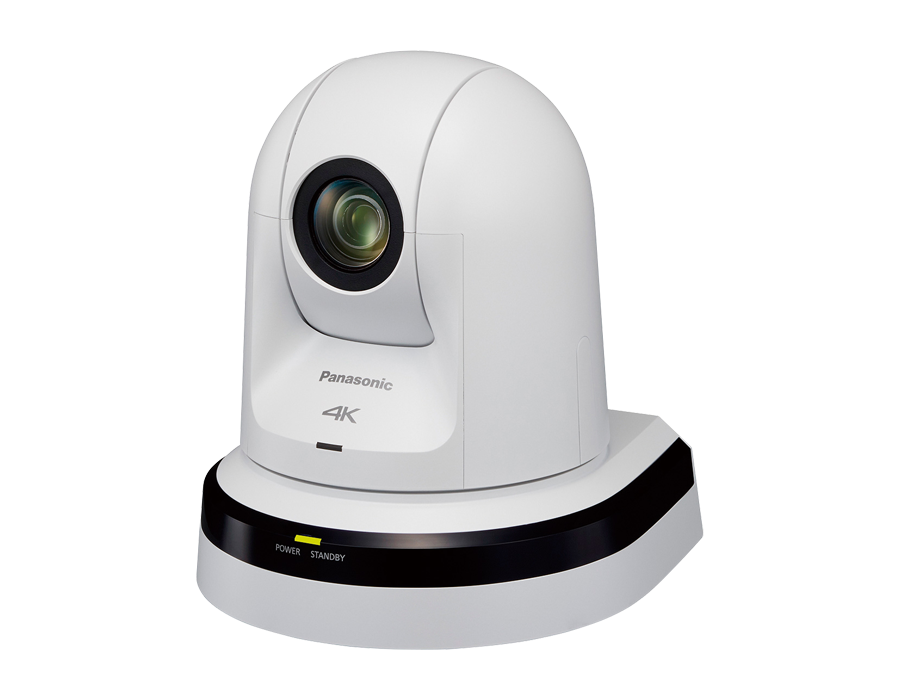

Panasonic 4K PTZ Integrated Camera with NDI HX1 – AW-UN70
The Panasonic AW-UN70 is a 4K PTZ integrated camera with NDI HX1 built in, for IP video streaming, conferences and lecture capture. It has a 20x optical zoom lens and outputs 4K UHD over HDMI, 3G/HD-SDI, USB and IP. Procure.ae supplies the AW-UN70 across the UAE.
The AW-UN70 uses a 1/2.3-type MOS sensor and a 20x optical zoom lens, F1.8 to F3.6, with a focal length of 4.08 to 81.6 mm. Super resolution extends the zoom to 30x, and minimum illumination is 0.7 lx at 50 IRE with 59.94 Hz. Video can be output as 4K (3840 x 2160) over HDMI, 3G/HD-SDI, USB and IP, and recorded as MP4 to a microSD card. Panasonic lists NDI HX1 as built into this model, which sends video over the network. Pan speed reaches 300 degrees per second in preset movements and 90 degrees per second in manual operation.
The AW-UN70 suits IP video streaming, conferences, lecture capture, wedding and funeral halls, and event production, where a 4K source is needed on the network as well as on local outputs. It connects through HDMI, 3G/HD-SDI, USB Mini-B and LAN, with RS-232C and RS-422 for serial control. It works with the AW-RP50, AW-RP120G and AK-HRP200G controllers, and Panasonic also lists compatibility with the KAIROS IT/IP platform. It can sit on a desk or be suspended from a ceiling.
Key features
Specifications
| Controls | AW-RP50, AW-RP120G, AK-HRP200G |
| Key Features | 4K UHD output, 20x optical zoom, pan ±175°, tilt -30° to 90°, USB UVC video, microSD recording, PoE+ or 12 V DC power, 0.7 lx minimum illumination |
| Model | AW-UN70 |
| Type | PTZ Camera |
| Resolution | 3840 x 2160 (4K UHD) |
| Zoom | 20x optical; super resolution 30x |
| Speed | Preset up to 300°/s; manual up to 90°/s |
| Storage Conditions | -20 to 50 °C |
| Audio In | Stereo mini-jack 3.5 mm (mic/line) |
| PoE | PoE+ (IEEE 802.3at) |
| Ports | HDMI × 1, 3G/HD-SDI (BNC) × 1, LAN (RJ-45) × 1, RS-232C × 2, RS-422 (RJ-45) × 1, USB Mini-B × 1, microSD slot × 1, G/L IN (BNC) × 1 |
| Protocols | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, FTP |
| SD Card Slot | microSD (MP4 recording) |
| USB Ports | USB Mini-B × 1 (UVC video output) |
| Power Consumption | 1.3 A (AC adapter), 0.5 A (PoE+) |
| Power Source | DC 12 V adapter or PoE+ (IEEE 802.3at) |
| Color | Pearl white or metallic black |
| Dimensions | 160 x 186 x 179 mm (W x H x D) |
| Mounting | Desktop or suspended (hanging) |
| Operating Humidity | 20% to 90% RH (no condensation) |
| Operating Temperature | 0 to 40 °C |
| Rotation | Pan ±175°, tilt -30° to 90° |
| Weight | 1.5 kg |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
