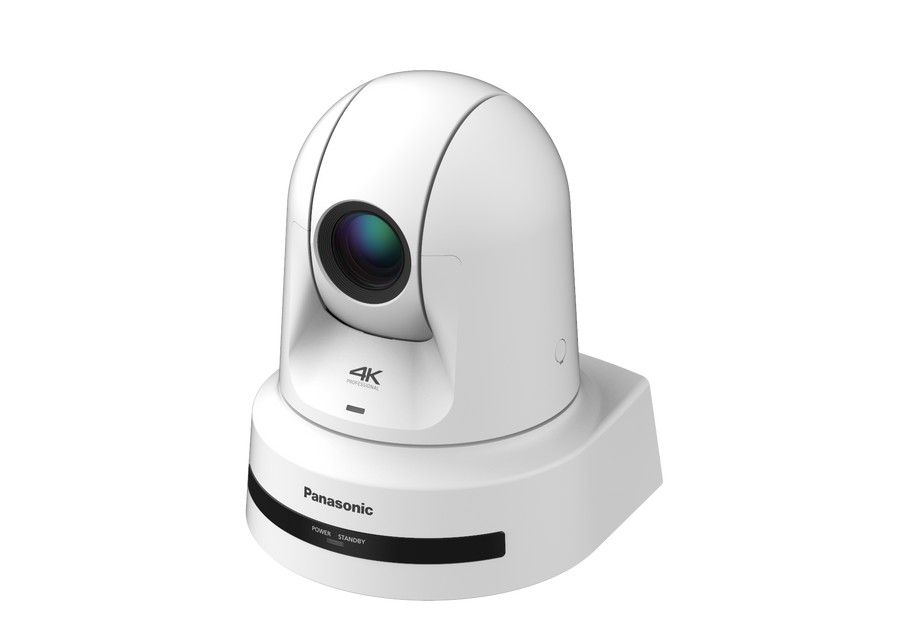

Panasonic 4K 60p Dome PTZ Camera with 24x Optical Zoom – AW-UE80
The Panasonic AW-UE80 is a dome-style 4K 60p PTZ camera with a 24x optical zoom lens, for live production, streaming and recording of events. It outputs up to 4K 50p or 60p over HDMI, 3G-SDI and IP, with NDI and SRT streaming. Procure.ae supplies the AW-UE80 across the UAE.
The AW-UE80 uses a 1/2.5-type 4K MOS sensor with about 8.49 million effective pixels and a motorised 24x optical zoom lens, F1.8 to F4.0, with a focal length of 4.12 to 98.9 mm. The horizontal angle of view runs from 74.1 degrees at the wide end to 3.3 degrees at the tele end. i.Zoom extends the zoom to 28x in UHD and 36x in Full HD. Pan runs ±175 degrees and tilt from -30 to 90 degrees, with three speed modes up to 180 degrees per second. High bandwidth NDI can carry full HD video up to 250 Mbps.
The AW-UE80 suits production of reality shows, internal business and educational events, and any setting where a dome-shaped camera should not disturb the scene. It connects through HDMI 2.0, 3G-SDI, LAN and RS-422, and it supports FreeD for virtual studio tracking, TSL 5.0 and SNMP for external devices. The camera is powered by PoE++ or a DC 12 V adapter. Panasonic's compatibility chart lists the operation devices and software it supports, and the unit can sit on a desk or be suspended from a ceiling.
Resolution
3840 x 2160 (4K UHD)
Speed
Pan/tilt up to 180°/s (3 speed modes)
Type
PTZ Camera
Weight
2.0 kg (excluding ceiling mounting ...
- 4K 60p output
- 24x optical zoom
- Wide 74.1-degree lens
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K 60p output
Outputs up to 4K 50p or 60p at 3840 x 2160 over HDMI, 3G-SDI and IP.
02
24x optical zoom
Motorised 24x optical zoom, with i.Zoom reaching 28x in UHD and 36x in Full HD.
03
Wide 74.1-degree lens
Horizontal angle of view of 74.1 degrees at the wide end, narrowing to 3.3 degrees at the tele end.
04
NDI and SRT streaming
Supports High bandwidth NDI up to 250 Mbps, NDI HX version 2 and SRT, over one LAN cable.
05
Quiet direct drive
Direct drive system with operating noise of NC25 or less for smooth pan and tilt.
06
Optical and electronic stabilisation
OIS and EIS keep pan and tilt movement smooth in busy spaces or on a robotic mount.
07
PoE++ single cable
PoE++ (IEEE 802.3bt) carries power, control and video over one LAN cable.
08
FreeD and TSL support
Compatible with FreeD for virtual studio use, and TSL 5.0 and SNMP for external devices.
Specifications
20 specificationsGeneral
Key Features4K 50p/60p output, 24x optical zoom, NDI HX v2 and High bandwidth NDI, SRT, FreeD, pan ±175°, tilt -30° to 90°, NC25 or less operating noise, PoE++
ModelAW-UE80
TypePTZ Camera
Display
Resolution3840 x 2160 (4K UHD)
Zoom24x optical; i.Zoom 28x (UHD), 36x (FHD)
Performance
SpeedPan/tilt up to 180°/s (3 speed modes)
Storage Conditions-20 to 50 °C
Audio
Audio In3.5 mm stereo mini-jack (mic/line)
Connectivity
PoEPoE++ (IEEE 802.3bt)
PortsHDMI 2.0 × 1, 3G-SDI (BNC) × 1, G/L IN (BNC) × 1, LAN (RJ-45) × 1, RS-422 (RJ-45) × 1, 3.5 mm mic/line input × 1
ProtocolsTCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCP, MDNS, SNMP, 802.1X, RTMP, RTMPS, SRT
Power
Power Consumption3.0 A (AC adapter), 1.0 A (PoE++)
Power Source12 V DC adapter or PoE++ (IEEE 802.3bt)
Physical
ColorWhite or Black
Dimensions170 x 211 x 171 mm (W x H x D)
MountingDesktop or suspended (hanging)
Operating Humidity20% to 90% RH (no condensation)
Operating Temperature0 to 40 °C
RotationPan ±175°, tilt -30° to 90°
Weight2.0 kg (excluding ceiling mounting bracket)
Product videos
Downloads
Manufacturer documents for the Panasonic 4K 60p Dome PTZ Camera with 24x Optical Zoom – AW-UE80 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the AW-UE80 output 4K 60p?
Yes. The manufacturer lists up to 4K 50p and 60p output at 3840 x 2160, over HDMI, 3G-SDI and IP, with 1080 and 720 HD formats also available. The NDI High bandwidth mode can carry full HD video up to 250 Mbps.
Can the AW-UE80 be powered over Ethernet?
Yes. It accepts PoE++ (IEEE 802.3bt) at DC 42 V to 57 V, which supplies power, control and video over one cable. It can also run from its supplied DC 12 V adapter.
Does the AW-UE80 support NDI?
Yes. It supports High bandwidth NDI and NDI HX version 2, and SRT. Both NDI modes use one LAN cable. NDI HX version 2 suits low-bitrate video transmission, and both NDI modes need only one LAN cable.
Can the AW-UE80 work with FreeD tracking?
Yes. Panasonic lists FreeD support over IP and RS-422, and TSL 5.0 and SNMP as external device cooperation protocols. FreeD is listed as a VR support protocol over IP and RS-422.
Is the AW-UE80 suitable for live events?
Yes. Its dome-shaped design is aimed at production where the camera should not disturb the atmosphere, and its direct drive system runs at NC25 or less. Panasonic also describes its direct drive motor as very quiet, so it does not disturb production activity.
