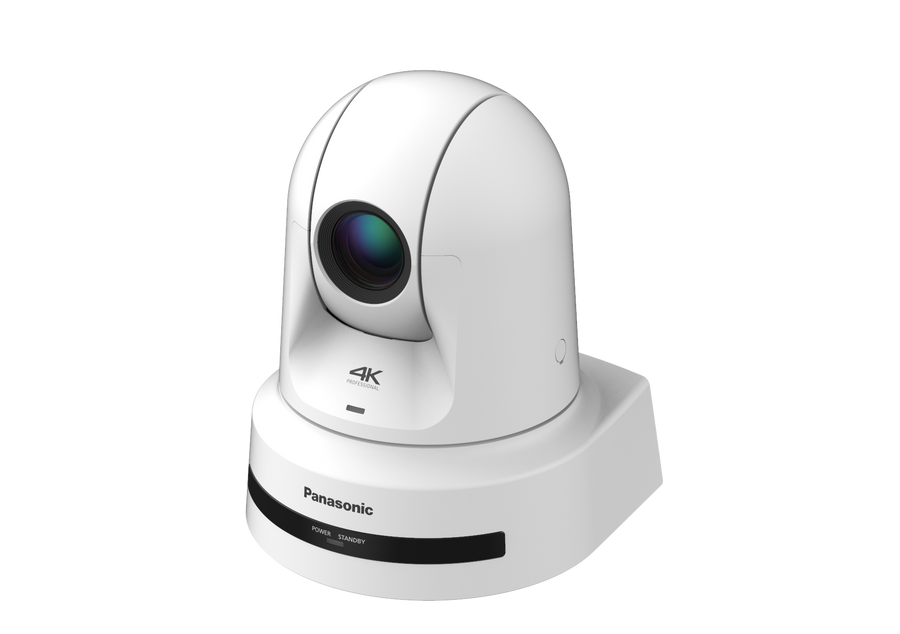

Panasonic 4K 60p Dome PTZ Camera with 24x Optical Zoom – AW-UE80
The Panasonic AW-UE80 is a dome-style 4K 60p PTZ camera with a 24x optical zoom lens, for live production, streaming and recording of events. It outputs up to 4K 50p or 60p over HDMI, 3G-SDI and IP, with NDI and SRT streaming. Procure.ae supplies the AW-UE80 across the UAE.
The AW-UE80 uses a 1/2.5-type 4K MOS sensor with about 8.49 million effective pixels and a motorised 24x optical zoom lens, F1.8 to F4.0, with a focal length of 4.12 to 98.9 mm. The horizontal angle of view runs from 74.1 degrees at the wide end to 3.3 degrees at the tele end. i.Zoom extends the zoom to 28x in UHD and 36x in Full HD. Pan runs ±175 degrees and tilt from -30 to 90 degrees, with three speed modes up to 180 degrees per second. High bandwidth NDI can carry full HD video up to 250 Mbps.
The AW-UE80 suits production of reality shows, internal business and educational events, and any setting where a dome-shaped camera should not disturb the scene. It connects through HDMI 2.0, 3G-SDI, LAN and RS-422, and it supports FreeD for virtual studio tracking, TSL 5.0 and SNMP for external devices. The camera is powered by PoE++ or a DC 12 V adapter. Panasonic's compatibility chart lists the operation devices and software it supports, and the unit can sit on a desk or be suspended from a ceiling.
Key features
Specifications
| Key Features | 4K 50p/60p output, 24x optical zoom, NDI HX v2 and High bandwidth NDI, SRT, FreeD, pan ±175°, tilt -30° to 90°, NC25 or less operating noise, PoE++ |
| Model | AW-UE80 |
| Type | PTZ Camera |
| Resolution | 3840 x 2160 (4K UHD) |
| Zoom | 24x optical; i.Zoom 28x (UHD), 36x (FHD) |
| Speed | Pan/tilt up to 180°/s (3 speed modes) |
| Storage Conditions | -20 to 50 °C |
| Audio In | 3.5 mm stereo mini-jack (mic/line) |
| PoE | PoE++ (IEEE 802.3bt) |
| Ports | HDMI 2.0 × 1, 3G-SDI (BNC) × 1, G/L IN (BNC) × 1, LAN (RJ-45) × 1, RS-422 (RJ-45) × 1, 3.5 mm mic/line input × 1 |
| Protocols | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCP, MDNS, SNMP, 802.1X, RTMP, RTMPS, SRT |
| Power Consumption | 3.0 A (AC adapter), 1.0 A (PoE++) |
| Power Source | 12 V DC adapter or PoE++ (IEEE 802.3bt) |
| Color | White or Black |
| Dimensions | 170 x 211 x 171 mm (W x H x D) |
| Mounting | Desktop or suspended (hanging) |
| Operating Humidity | 20% to 90% RH (no condensation) |
| Operating Temperature | 0 to 40 °C |
| Rotation | Pan ±175°, tilt -30° to 90° |
| Weight | 2.0 kg (excluding ceiling mounting bracket) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
