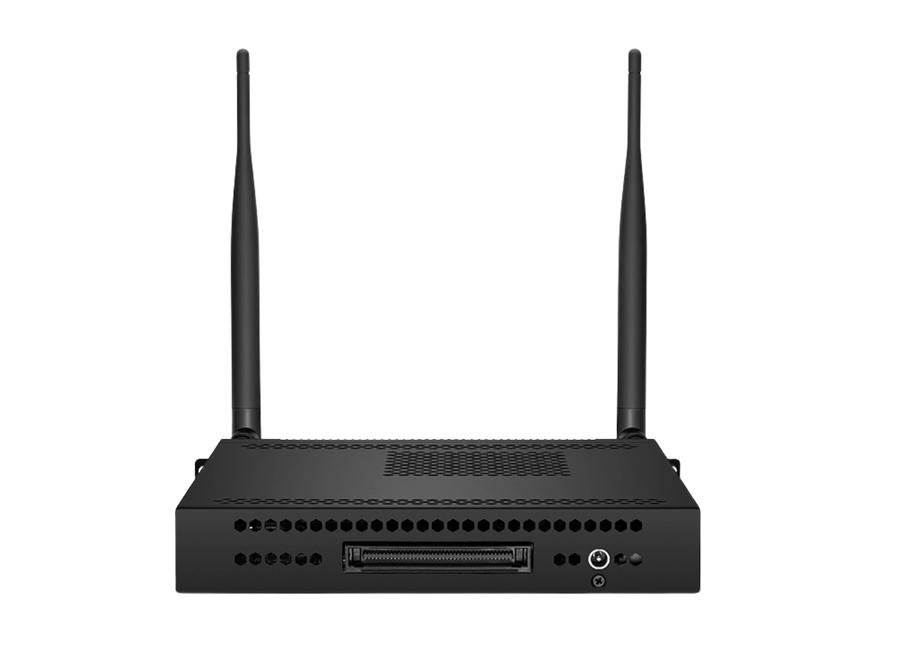

OneScreen OPS PC i7 LLF slot-in PC moduleOneScreen
Meeting Room SolutionsSKU OPS PC i7 LLF

OneScreen OPS Slot-in PC – OPS PC i7 LLF

The OneScreen OPS PC i7 LLF is a slot-in OPS computer module with an Intel Core i7-12850HX processor, 16 GB RAM, a 256 GB M.2 SATA SSD and Windows 11. It adds Wi-Fi 6, Bluetooth 5.2, six USB 3.2 ports and an RJ45 Ethernet port. Procure.ae, an authorised OneScreen reseller, supplies it across the UAE.

The OPS PC i7 LLF uses an Intel Core i7-12850HX processor with a speed range of 2.1 GHz to 4.9 GHz. It has 16 GB DDR4 memory with an additional slot, a 256 GB M.2 SATA SSD and a 2.5-inch SATA HDD or SSD bay. Intel UHD Graphics is the integrated graphics, and the unit runs Windows 11 with TPM 2.0 support. The 80-pin OPS connector takes a 12–19 V DC input and draws up to 60 W at maximum.

The module suits classrooms, meeting rooms and collaborative workspaces that need a Windows 11 computer built into the display setup. Six USB 3.2 ports, one USB-C port, a headset jack and an RJ45 Ethernet port cover peripherals and wired networking. The manufacturer lists FCC certification and an operating range of 0 to 45 °C. Procure.ae supplies and installs OPS modules across the UAE and offers free training and support.

Type
OPS Slot-in PC
Weight
1.2 kg
  • Intel Core i7 processor
  • 16 GB DDR4 memory
  • 256 GB M.2 SSD
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Intel Core i7 processor
Intel Core i7-12850HX with a 2.1 to 4.9 GHz speed range.
02
16 GB DDR4 memory
Includes an additional memory slot.
03
256 GB M.2 SSD
Plus a 2.5-inch SATA HDD or SSD bay.
04
Windows 11 with TPM 2.0
Windows 11 with TPM 2.0 support.
05
Wi-Fi 6 and Bluetooth 5.2
Dual-band 2.4 GHz and 5 GHz antennas.
06
Six USB 3.2 ports
Plus one USB-C port, one RJ45 port and a headset jack.

Specifications

24 specifications
General
Key FeaturesIntel Core i7-12850HX, Windows 11, 16 GB DDR4 RAM, 256 GB M.2 SSD, TPM 2.0, Wi-Fi 6, Bluetooth 5.2, six USB 3.2 ports
ModelOPS PC i7 LLF
TypeOPS Slot-in PC
Performance
GraphicsIntel UHD Graphics
Operating SystemWindows 11
ProcessorIntel Core i7-12850HX, 2.1 to 4.9 GHz
RAM16 GB DDR4 (additional slot)
Storage256 GB M.2 SATA SSD, plus 2.5-inch SATA HDD/SSD slot
Connectivity
Antenna2 x dual-band 2.4 GHz / 5 GHz
BluetoothBluetooth 5.2
Ethernet1 x RJ45
Input Voltage12–19 V DC
PortsUSB 3.2 × 6, USB-C × 1, headset jack × 1
Wi-FiWi-Fi 6
Power
Power Consumption60 W (max)
Standby Power40 W
Physical
Dimensions195 x 180 x 30 mm (L x W x H)
Operating Humidity10% to 95% RH (at 40 °C)
Operating Temperature0 to 45 °C
Shipping Dimensions282 x 257 x 79 mm (L x W x H)
Shipping Weight1.4 kg
Weight1.2 kg
Compliance
CertificationsFCC
Security FeaturesTPM 2.0

Downloads

Manufacturer documents for the OneScreen OPS Slot-in PC – OPS PC i7 LLF — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Which displays is the OPS PC i7 LLF compatible with?
The manufacturer's specifications do not list compatible display models. The module uses an 80-pin OPS connector and a 12–19 V DC input. Procure.ae can confirm compatibility with your panel before you order.
Does the OPS PC i7 LLF run Windows 11?
Yes. It runs Windows 11 on an Intel Core i7-12850HX processor, with 16 GB DDR4 memory, Intel UHD Graphics and TPM 2.0 support. The 256 GB M.2 SATA SSD provides storage, and a 2.5-inch SATA bay allows more.
Does the OPS PC i7 LLF have Wi-Fi and Bluetooth?
Yes. It has Wi-Fi 6 and Bluetooth 5.2, with dual-band 2.4 GHz and 5 GHz antennas. It also has one RJ45 Ethernet port for wired networking and a headset jack for audio.
Can I buy the OPS PC i7 LLF in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
