NewlineDigital SignageSKU 98" STV+

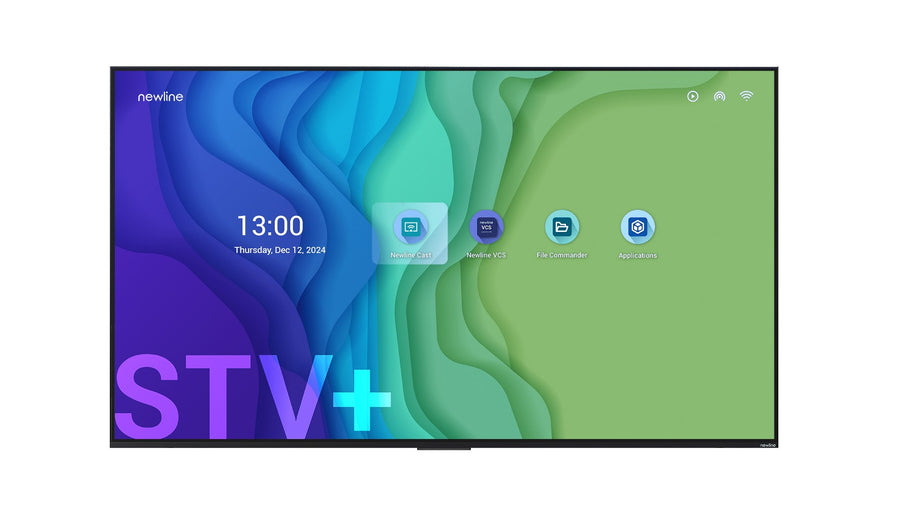

Newline STV+ 98-inch 4K UHD Digital Signage Display – STV-9824-Plus
The Newline STV+ 98-inch (STV-9824-Plus) is a 4K UHD digital signage display for business presentations, classroom lessons and signage. It is rated at 600 nits with a 5,000:1 contrast ratio and 24/7 operation, and it runs Android 14 with Cast+ wireless casting built in. Procure.ae supplies it across the UAE.
The STV+ 98-inch uses a direct LED panel with 3840 x 2160 resolution, 600 nits brightness, a 5,000:1 contrast ratio, a 6.5 ms response time and 178-degree viewing angles at 60 Hz, showing 1.07 billion colours. Its embedded system has an octa-core processor (4 x A73 and 4 x A53 at 2.20 GHz), an Arm Mali-G52 GPU, 4 GB of RAM and 16 GB of storage. Wi-Fi 5 and Bluetooth 5.0 are built in, with two 15 W speakers and 2.0 audio. The display is rated for 24 hours a day, seven days a week.
Use it for digital signage, business presentations and classroom lessons in lobbies, meeting rooms and teaching spaces. Cast+ shares content from any device, Signage Pro streamlines content management, and Display Management Plus centralises settings and updates across every screen. It is compatible with the Click2Cast dongle for one-click casting. Plan the mount for an 800 x 400 mm VESA pattern and a 59 kg net weight. Compared with the 85-inch STV+, this model is rated at 600 nits rather than 400 nits.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits
Type
Digital Signage Display
- 4K UHD panel
- Cast+ wireless casting
- Signage Pro integration
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution, 600 nits brightness and a 5,000:1 contrast ratio.
02
Cast+ wireless casting
Shares content from any device to the display.
03
Signage Pro integration
Streamlines content management with Newline Signage Pro software.
04
Display Management Plus
Centralises control of settings and updates across all screens.
05
Click2Cast compatible
Works with the Newline Click2Cast dongle for one-click screen casting.
06
Remote wake
Supports Wake-on-LAN and Wake-on-Wi-Fi, with 2.4 GHz and 5.0 GHz hotspot options.
07
Over-the-air updates
Receives firmware updates over the air (OTA).
08
Slim frame
Measures 2182 x 1247 x 111 mm (W x H x D) and weighs 59 kg net.
Specifications
32 specificationsGeneral
CompatibilityCast+, Broadcast, Display Management Plus, Signage Pro
Key Features4K UHD panel, Cast+ wireless casting, Signage Pro integration, Display Management Plus, Click2Cast compatible, Wake-on-LAN and Wake-on-Wi-Fi, over-the-air firmware updates, 24/7 operation
Model98" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness600 nits
Contrast Ratio5,000:1
Display TypeDirect LED
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size98 inch
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
Processor4 x A73 2.20 GHz + 4 x A53 2.20 GHz
RAM4 GB
Storage16 GB
Storage Conditions-20 to 60 °C, 20% to 80% RH
Audio
Speaker Configuration2.0
Speaker Output2 x 15 W
Connectivity
BluetoothBluetooth 5.0
PortsHDMI In 2.1 × 3 (HDCP 2.2, 4K@30 Hz), USB 3.0 Type-A × 1, USB 2.0 Type-A × 1, RJ45 LAN In × 1, RS232 × 1, AV In × 1, Audio Line Out × 1, S/PDIF Out × 1
Wi-FiWi-Fi 5
Power
Power Consumption140 W (standard mode)
Standby Power0.5 W
Physical
Dimensions2182 x 1247 x 111 mm
Duty Cycle24 hours / 7 days
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight59 kg
Downloads
Manufacturer documents for the Newline STV+ 98-inch 4K UHD Digital Signage Display – STV-9824-Plus — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Newline STV+ 98-inch used for?
It is a 4K UHD display for digital signage, business presentations and classroom lessons. Newline positions the STV+ series for these uses, with Cast+ casting from any device and Signage Pro content management for scheduling content across screens.
Does the Newline STV+ 98-inch support wall mounting?
Yes. It uses an 800 x 400 mm VESA pattern, and the display measures 2182 x 1247 x 111 mm with a net weight of 59 kg. Confirm that the wall or mount bracket is rated for that load before installation. Procure.ae provides installation across the UAE.
Can the STV+ 98-inch be managed across several screens?
Yes. Display Management Plus centralises control of settings and updates across all screens, and Signage Pro streamlines content management. Wake-on-LAN and Wake-on-Wi-Fi are supported, so screens can be woken remotely on the network.
Does it connect to a laptop or media player?
Yes. It has three HDMI 2.1 inputs with HDCP 2.2 (4K at 30 Hz), a USB 3.0 Type-A port, a LAN In port and an audio line out. Cast+ can also share content wirelessly from a laptop, tablet or phone.
How does it compare with the 85-inch STV+?
The 98-inch is rated at 600 nits and 140 W in standard mode, while the 85-inch STV+ is rated at 400 nits and 138 W. The 98-inch weighs 59 kg net and the 85-inch weighs 28.8 kg net, so the two need different mounts.
