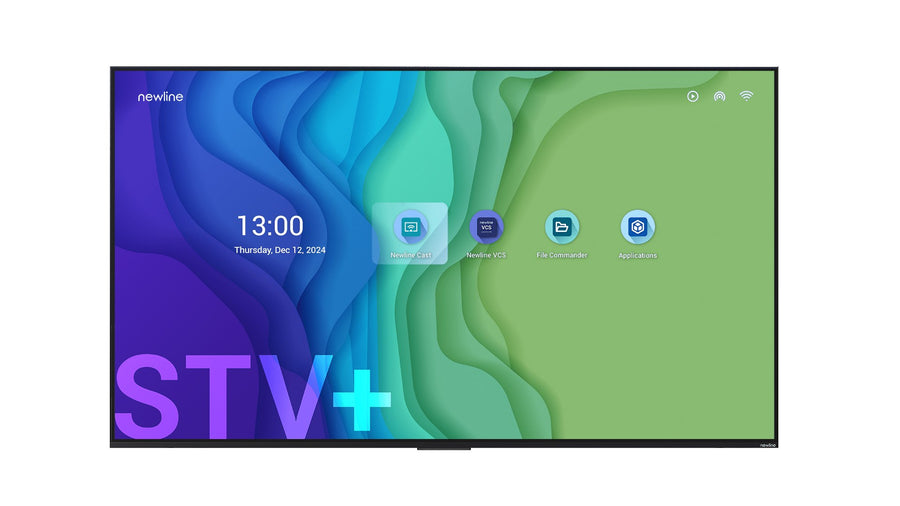

Newline STV+ 98-inch 4K UHD Digital Signage Display – STV-9824-Plus

Newline STV+ 98-inch 4K UHD Digital Signage Display – STV-9824-Plus

The Newline STV+ 98-inch (STV-9824-Plus) is a 4K UHD digital signage display for business presentations, classroom lessons and signage. It is rated at 600 nits with a 5,000:1 contrast ratio and 24/7 operation, and it runs Android 14 with Cast+ wireless casting built in. Procure.ae supplies it across the UAE.

The STV+ 98-inch uses a direct LED panel with 3840 x 2160 resolution, 600 nits brightness, a 5,000:1 contrast ratio, a 6.5 ms response time and 178-degree viewing angles at 60 Hz, showing 1.07 billion colours. Its embedded system has an octa-core processor (4 x A73 and 4 x A53 at 2.20 GHz), an Arm Mali-G52 GPU, 4 GB of RAM and 16 GB of storage. Wi-Fi 5 and Bluetooth 5.0 are built in, with two 15 W speakers and 2.0 audio. The display is rated for 24 hours a day, seven days a week.

Use it for digital signage, business presentations and classroom lessons in lobbies, meeting rooms and teaching spaces. Cast+ shares content from any device, Signage Pro streamlines content management, and Display Management Plus centralises settings and updates across every screen. It is compatible with the Click2Cast dongle for one-click casting. Plan the mount for an 800 x 400 mm VESA pattern and a 59 kg net weight. Compared with the 85-inch STV+, this model is rated at 600 nits rather than 400 nits.

Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits
Type
Digital Signage Display
Weight
59 kg

Key features

01
4K UHD panel
3840 x 2160 resolution, 600 nits brightness and a 5,000:1 contrast ratio.
02
Cast+ wireless casting
Shares content from any device to the display.
03
Signage Pro integration
Streamlines content management with Newline Signage Pro software.
04
Display Management Plus
Centralises control of settings and updates across all screens.
05
Click2Cast compatible
Works with the Newline Click2Cast dongle for one-click screen casting.
06
Remote wake
Supports Wake-on-LAN and Wake-on-Wi-Fi, with 2.4 GHz and 5.0 GHz hotspot options.
07
Over-the-air updates
Receives firmware updates over the air (OTA).
08
Slim frame
Measures 2182 x 1247 x 111 mm (W x H x D) and weighs 59 kg net.

Specifications

General
CompatibilityCast+, Broadcast, Display Management Plus, Signage Pro
Key Features4K UHD panel, Cast+ wireless casting, Signage Pro integration, Display Management Plus, Click2Cast compatible, Wake-on-LAN and Wake-on-Wi-Fi, over-the-air firmware updates, 24/7 operation
Model98" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness600 nits
Contrast Ratio5,000:1
Display TypeDirect LED
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size98 inch
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
Processor4 x A73 2.20 GHz + 4 x A53 2.20 GHz
RAM4 GB
Storage16 GB
Storage Conditions-20 to 60 °C, 20% to 80% RH
Audio
Speaker Configuration2.0
Speaker Output2 x 15 W
Connectivity
BluetoothBluetooth 5.0
PortsHDMI In 2.1 × 3 (HDCP 2.2, 4K@30 Hz), USB 3.0 Type-A × 1, USB 2.0 Type-A × 1, RJ45 LAN In × 1, RS232 × 1, AV In × 1, Audio Line Out × 1, S/PDIF Out × 1
Wi-FiWi-Fi 5
Power
Power Consumption140 W (standard mode)
Standby Power0.5 W
Physical
Dimensions2182 x 1247 x 111 mm
Duty Cycle24 hours / 7 days
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight59 kg
