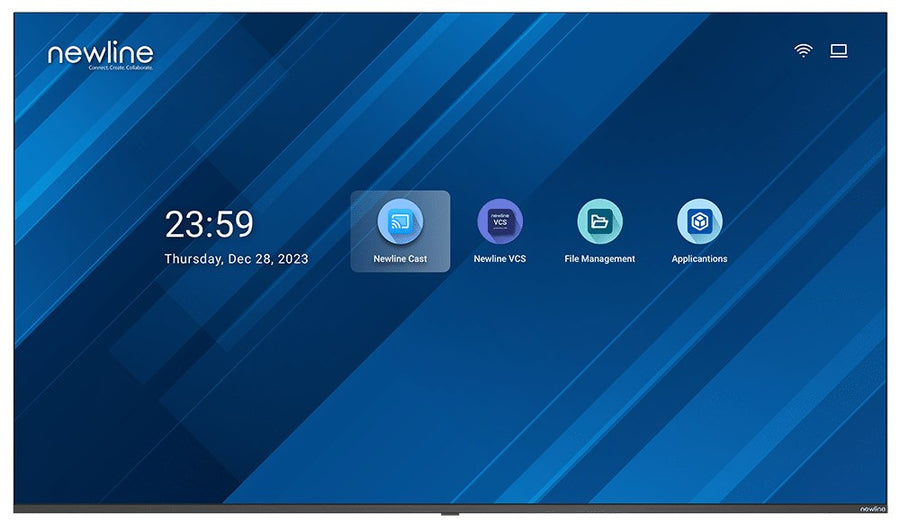

Newline 85-inch STV digital signage display, model 85" STVNewline
Digital SignageSKU 85" STV

Newline STV 85-inch 4K UHD Digital Signage Display – 85" STV

The Newline 85-inch STV (model 85" STV) is a 4K UHD non-touch digital signage display for businesses, schools and public information screens. It offers 350 nits brightness, a 5,600:1 contrast ratio and a 1 mm ultra-thin bezel, with support for the Cast+ and VCS software. Procure.ae supplies the 85-inch STV across the UAE.

The 85-inch STV uses a 3840 x 2160 (4K UHD) LCD panel with a 1872 x 1053 mm display area, a 16:9 aspect ratio and 1.07 billion colours. It is rated at 350 nits brightness with a 5,600:1 contrast ratio, a 6.5 ms response time and a 178 degree viewing angle at 60 Hz. The display supports High Dynamic Range (HDR), operates for 16 hours x 7 days and has two 15 W rear speakers. Its quad-core ARM Cortex CPU has 2 GB RAM and 16 GB storage.

Use the 85-inch STV for digital signage, corporate communications and information screens. Cast+ shares content wirelessly from various devices, and VCS broadcasts messages straight to the panel without a separate media player. The 500 x 400 mm VESA pattern is larger than the 400 x 300 mm pattern on the 65-inch and 75-inch models, and the display weighs 29.5 kg net. Compared with the 75-inch STV, it is rated at 350 nits rather than 300 nits and a 5,600:1 contrast ratio rather than 4,000:1.

Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
  • 4K UHD resolution
  • Non-touch display
  • Ultra-thin bezel
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD resolution
3840 x 2160 pixels on a 16:9 LCD panel with 1.07 billion colours.
02
Non-touch display
Built for digital signage and presentations, without touch input.
03
Ultra-thin bezel
A 1 mm bezel and a high screen-to-body ratio.
04
High brightness
350 nits (excluding wall mount) with a 5,600:1 contrast ratio.
05
High Dynamic Range
HDR support for video content.
06
Cast+ wireless casting
Shares content wirelessly from various devices.
07
VCS broadcasting
Sends messages straight to the panel without a separate media player.
08
Long operating time
Specified for 16 hours x 7 days, with a 60 Hz refresh rate.

Specifications

29 specifications
General
ApplicationDigital signage
CompatibilityNewline Cast+ and VCS
Key Features4K UHD, 1 mm bezel, HDR, non-touch, Cast+ wireless casting, VCS broadcast, 16 hours x 7 days operation
Model85" STV
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size1 mm
Brightness350 nits
Color Depth1.07 billion colours
Contrast Ratio5,600:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size85 inch
TouchscreenNon-touch
Viewing Angle178°
Performance
ProcessorQuad-core ARM Cortex
RAM2 GB
Storage16 GB
Audio
Dynamic RangeHigh Dynamic Range (HDR)
Speaker Output15 W x 2
Connectivity
Wi-FiWi-Fi 5.0
Power
Power Consumption310 W (standard mode)
Standby PowerBelow 0.5 W
Physical
Dimensions1890 x 1081 x 91 mm
Duty Cycle16 hours x 7 days
VESA Mount500 x 400 mm
Weight29.5 kg

Downloads

Manufacturer documents for the Newline STV 85-inch 4K UHD Digital Signage Display – 85" STV — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the 85-inch STV a touchscreen?
No. The 85-inch STV is a non-touch display made for digital signage and presentations. Content is shared through Cast+ and broadcast through VCS rather than touch input, so it suits viewing and signage use.
How does the 85-inch STV differ from the 75-inch STV?
The 85-inch STV is rated at 350 nits with a 5,600:1 contrast ratio, against 300 nits and 4,000:1 for the 75-inch model. It uses a 500 x 400 mm VESA pattern and 15 W x 2 speakers, and weighs 29.5 kg net against 22.7 kg. Its standard-mode power draw is 310 W against 260 W.
Can I cast content wirelessly to the 85-inch STV?
Yes. Cast+ supports wireless casting from various devices, and VCS broadcasts messages directly through the panel. Both are listed as part of Newline's interactive ecosystem for this display, so content can be shared and broadcast without a separate media player.
What VESA mount does the 85-inch STV use?
The 85-inch STV uses a 500 x 400 mm VESA pattern. Its net weight is 29.5 kg and its outline dimensions are 1890 x 1081 x 91 mm, so confirm that the mount and wall structure are rated for that size and weight. Procure.ae provides installation across the UAE.
How many hours a day can the 85-inch STV run?
Newline specifies an operation time of 16 hours x 7 days for the STV series. The 85-inch model has a 60 Hz refresh rate and a 178 degree viewing angle, and its standard-mode power draw is 310 W.
Can I buy the 85" STV in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
