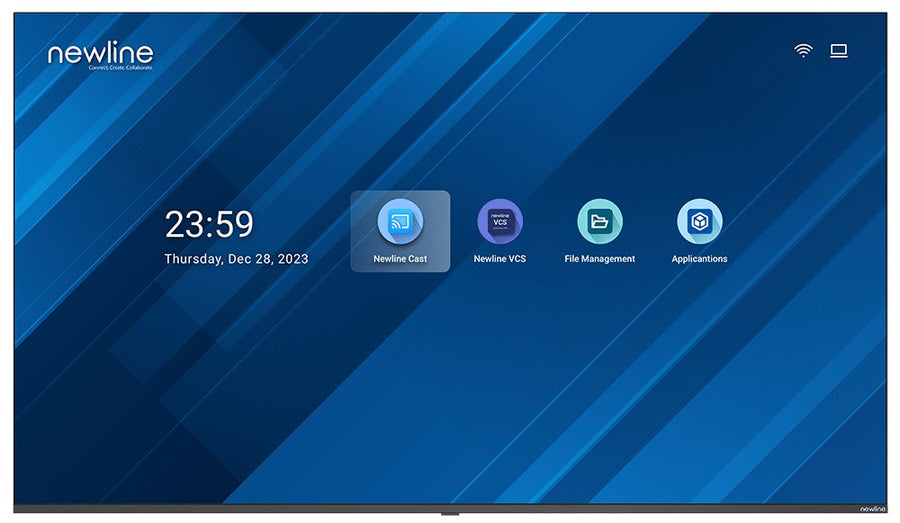

The Newline 85-inch STV (model 85" STV) is a 4K UHD non-touch digital signage display for businesses, schools and public information screens. It offers 350 nits brightness, a 5,600:1 contrast ratio and a 1 mm ultra-thin bezel, with support for the Cast+ and VCS software. Procure.ae supplies the 85-inch STV across the UAE.
The 85-inch STV uses a 3840 x 2160 (4K UHD) LCD panel with a 1872 x 1053 mm display area, a 16:9 aspect ratio and 1.07 billion colours. It is rated at 350 nits brightness with a 5,600:1 contrast ratio, a 6.5 ms response time and a 178 degree viewing angle at 60 Hz. The display supports High Dynamic Range (HDR), operates for 16 hours x 7 days and has two 15 W rear speakers. Its quad-core ARM Cortex CPU has 2 GB RAM and 16 GB storage.
Use the 85-inch STV for digital signage, corporate communications and information screens. Cast+ shares content wirelessly from various devices, and VCS broadcasts messages straight to the panel without a separate media player. The 500 x 400 mm VESA pattern is larger than the 400 x 300 mm pattern on the 65-inch and 75-inch models, and the display weighs 29.5 kg net. Compared with the 75-inch STV, it is rated at 350 nits rather than 300 nits and a 5,600:1 contrast ratio rather than 4,000:1.
| Application | Digital signage |
| Compatibility | Newline Cast+ and VCS |
| Key Features | 4K UHD, 1 mm bezel, HDR, non-touch, Cast+ wireless casting, VCS broadcast, 16 hours x 7 days operation |
| Model | 85" STV |
| Type | Digital Signage Display |
| Aspect Ratio | 16:9 |
| Bezel Size | 1 mm |
| Brightness | 350 nits |
| Color Depth | 1.07 billion colours |
| Contrast Ratio | 5,600:1 |
| Panel Technology | LCD |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 6.5 ms |
| Screen Size | 85 inch |
| Touchscreen | Non-touch |
| Viewing Angle | 178° |
| Processor | Quad-core ARM Cortex |
| RAM | 2 GB |
| Storage | 16 GB |
| Dynamic Range | High Dynamic Range (HDR) |
| Speaker Output | 15 W x 2 |
| Wi-Fi | Wi-Fi 5.0 |
| Power Consumption | 310 W (standard mode) |
| Standby Power | Below 0.5 W |
| Dimensions | 1890 x 1081 x 91 mm |
| Duty Cycle | 16 hours x 7 days |
| VESA Mount | 500 x 400 mm |
| Weight | 29.5 kg |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
