NECInteractive Flat PanelsSKU 75-inch InfinityBoard 2.2

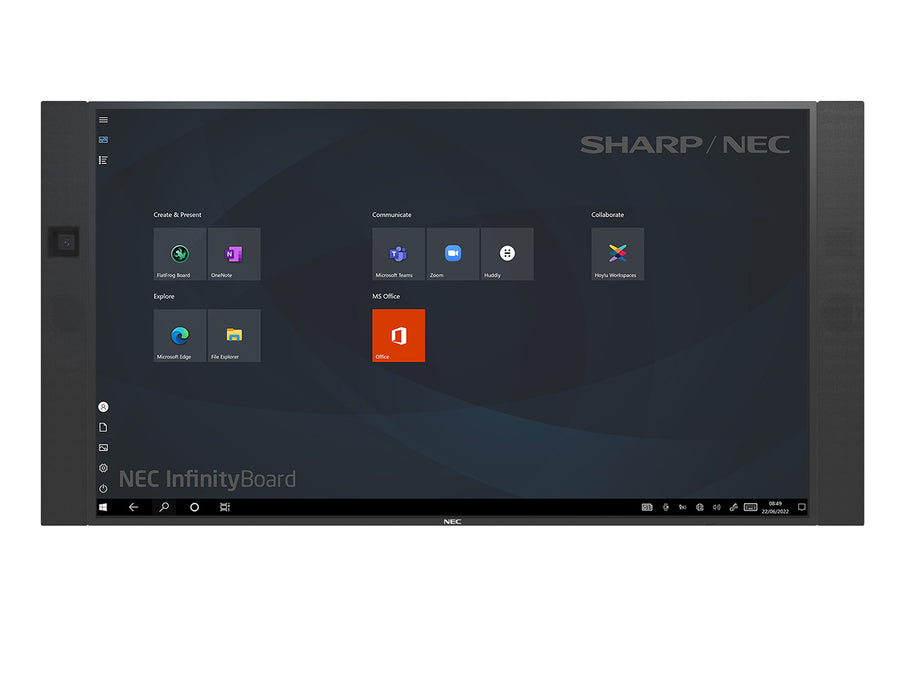

NEC InfinityBoard 2.2 75-inch Interactive Flat Panel
The NEC 75-inch InfinityBoard 2.2 is an interactive collaboration display for multi-presenter and hybrid meetings. It combines a 3840 x 2160 IPS panel, 20-point InGlass touch with palm rejection, and a Huddly IQ camera, with an OPS slot-in PC running Windows 10 Professional. Procure.ae supplies the NEC 75-inch InfinityBoard 2.2 across the UAE.
The 75-inch InfinityBoard 2.2 uses a 3840 x 2160 (4K UHD) IPS panel with 500 nits brightness (350 nits at the shipment setting) and a 1,200:1 typical contrast ratio. InGlass touch supports real multi-touch up to 20 touches with less than 1 mm accuracy, plus Windows Ink and palm rejection. The slot-in PC runs Windows 10 Professional on an Intel Core i7 with 8 GB of DDR4 RAM and a 128 GB SSD. The Huddly IQ camera outputs 1080p at 30 fps, and the side-mounted speakers have a rated impedance of 8 ohms.
The 2.2 model suits meeting rooms with several presenters, large groups and remote participants. Native multi-touch works with Windows 7-11, Linux and Android, and the open platform is not restricted to one video conferencing app. FlatFrog Board for Rooms software is included for one year and is available as a free download. Wall mounting uses 400 x 400 mm or 600 x 400 mm FDMI patterns. Compared with the 2.1 model, it adds palm rejection and the FlatFrog software.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (350 nits at shipment sett...
Touch Technology
InGlass
- 4K UHD IPS display
- 20-point InGlass touch
- Palm rejection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS display
3840 x 2160 resolution with 500 nits brightness and 10-bit colour.
02
20-point InGlass touch
Real multi-touch up to 20 touches with under 1 mm accuracy.
03
Palm rejection
Palm rejection and Windows Ink are both listed as supported on this model.
04
Huddly IQ camera
1080p at 30 fps with a 150-degree diagonal viewing angle.
05
FlatFrog Board for Rooms
Included for one year, available as a free download.
06
OPS slot-in PC
Intel Core i7 with 8 GB RAM, 128 GB storage and Windows 10 Professional.
07
Room connectivity
Three HDMI and two DisplayPort inputs, with RS232 and LAN control.
08
Low standby power
Under 0.5 W in power-saving mode and under 2 W in networked standby.
Specifications
39 specificationsGeneral
Key Features20-point InGlass touch, palm rejection, Windows Ink, Huddly IQ 1080p camera, FlatFrog Board for Rooms (1 year), OPS slot-in PC, Windows 10 Professional, RS232 and LAN control
Model75-inch InfinityBoard 2.2
TypeInteractive Flat Panel
What's in the BoxDisplay, OPS slot-in PC, Huddly IQ camera, side-mounted speakers, 2 stylus pens, remote control, DisplayPort cable, USB cables, power cable, CD-ROM user guides
Display
Aspect Ratio16:9
Brightness500 nits (350 nits at shipment setting)
CameraHuddly IQ, 1080p at 30 fps, 150 degrees diagonal viewing angle
Color Depth10-bit (1.073 billion colours)
Contrast Ratio1,200:1 (typical)
OrientationLandscape or portrait
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical, grey-to-grey)
Screen Size75 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time<= 15 ms
Touch TechnologyInGlass
Viewing Angle178 degrees horizontal / 178 degrees vertical
Performance
Operating SystemWindows 10 Professional (slot-in PC)
ProcessorIntel Core i7, 8 MB cache, 4 x 3 GHz
RAM8 GB DDR4
Storage128 GB
Audio
Speaker TypeSide-mounted speakers, 8 ohm rated impedance
Connectivity
BluetoothBluetooth 4.2
OPS SlotOpen pluggable specification (NEC / Intel OPS)
PortsHDMI In x 3, DisplayPort In x 2, DisplayPort Out x 1, USB 3.0 hub x 4, USB Type-B x 1, RS232 x 1, LAN 100 Mbit x 1, 3.5 mm audio in and out, OPS slot
Wi-Fi802.11ac dual band (Intel Wireless-AC 8260)
Power
Power Consumption167 W (shipping setting)
Standby Power< 0.5 W (power saving); < 2 W (networked standby)
Physical
Dimensions1944.6 x 1003 x 86 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm and 600 x 400 mm (FDMI), M8
Weight80.3 kg
Compliance
CertificationsCE, EAC, EMC Class B, FCC, RCM, REACH, RoHS, UL/C-UL
IP RatingIP5x (front), IP2x (back)
Warranty3 years including backlight; optional 4th and 5th year extension
Downloads
Manufacturer documents for the NEC InfinityBoard 2.2 75-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – 75-inch InfinityBoard 2.2
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – InfinityBoard
- Drawing – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
Questions
Can’t find your answer? Ask on WhatsApp
What room size suits the NEC 75-inch InfinityBoard 2.2?
The manufacturer positions the 75-inch model for meetings with multiple presenters, large groups and remote participants. Its 16:9 screen measures 1944.6 x 1003 x 86 mm without stand and weighs 80.3 kg, so confirm the wall or trolley load before installation.
Does the InfinityBoard 2.2 include a camera?
Yes. It includes a Huddly IQ video conferencing camera with 1080p output at 30 fps, a 150-degree diagonal viewing angle and digital pan, tilt and zoom with 3x lossless digital zoom.
Is any software included with the InfinityBoard 2.2?
Yes. FlatFrog Board for Rooms is included for one year and is available as a free download. The OPS slot-in PC runs Windows 10 Professional, and the open platform is not restricted to any particular software or video conferencing app.
Can it be wall mounted, and what mounts are available?
Yes. It supports 400 x 400 mm and 600 x 400 mm FDMI patterns with M8 holes. The manufacturer lists the PDW T XL-2 wall mount and PD02MHA and PD03MHA trolleys for this model. Procure.ae delivers and installs across the UAE.
Which control and input ports does it have?
It has three HDMI inputs, two DisplayPort inputs, RS232 and LAN 100 Mbit control ports, and a remote control input on a 3.5 mm jack. The Compute Module slot accepts the NEC Compute Module or Raspberry Pi Compute Module 1 and 3.
