NearityMeeting Room SolutionsSKU ASP100

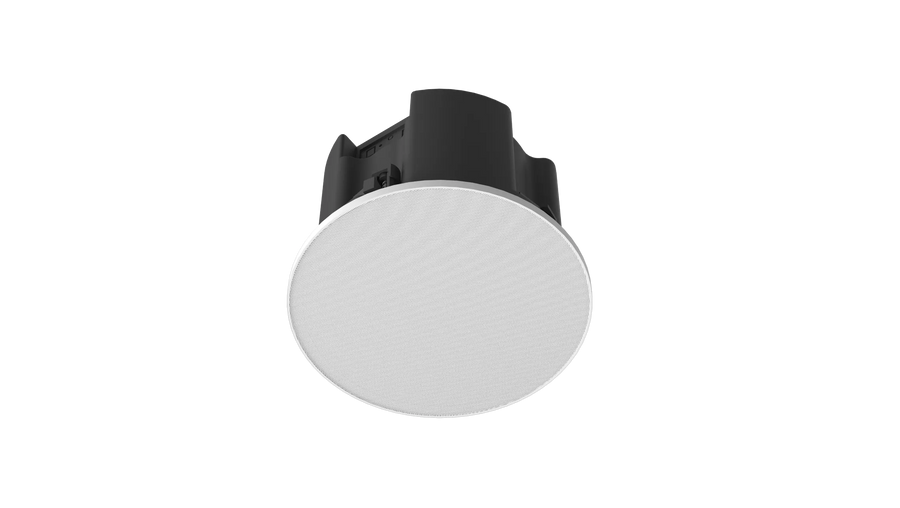

Nearity In-Ceiling Loudspeaker – ASP100
The Nearity ASP100 is a 15 W in-ceiling loudspeaker for ceiling microphone systems in conference spaces. It has an 87 ±3 dB sensitivity measured at 1 W and 1 m, with total harmonic distortion below 5%, in a 207 mm diameter unit. Procure.ae supplies the Nearity ASP100 across the UAE.
The ASP100 is rated at 15 W, with a sensitivity of 87 ±3 dB. The manufacturer measures this with a sine wave at 1 W and 1 m, averaged across 200, 400, 600 and 800 Hz. Total harmonic distortion is below 5%. The unit measures 207 mm in diameter and 150 mm in height. The manufacturer's specifications do not state frequency response, impedance or a ceiling cut-out size, so confirm these with Procure.ae before ordering.
The ASP100 is used with ceiling microphone systems and is listed in the Nearity conference loudspeaker range. Compared with the ASP110, the ASP100 is a round in-ceiling unit of 207 mm diameter and 150 mm height, against 185 x 167 x 250 mm for the ASP110. Its listed sensitivity is 87 ±3 dB against 88 ±3 dB for the ASP110, and both models are rated at 15 W.
Type
In-Ceiling Loudspeaker
- In-ceiling design
- 15 W power rating
- Sensitivity rating
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
In-ceiling design
The manufacturer describes the ASP100 as an in-ceiling loudspeaker.
02
15 W power rating
Rated at 15 W, as listed by the manufacturer.
03
Sensitivity rating
87 ±3 dB at 1 W and 1 m, averaged across 200, 400, 600 and 800 Hz.
04
Low distortion
Total harmonic distortion below 5%.
05
Unit dimensions
Ø 207 mm diameter and 150 mm height.
06
Ceiling microphone systems
Designed for use with ceiling microphone systems.
Specifications
8 specificationsGeneral
ApplicationCeiling microphone systems
ModelASP100
TypeIn-Ceiling Loudspeaker
Audio
Power Output15 W
Sensitivity87 ±3 dB (1 W at 1 m, 200–800 Hz average)
THD< 5%
Physical
DimensionsØ 207 x 150 mm (diameter x height)
MountingIn-ceiling
Downloads
Manufacturer documents for the Nearity In-Ceiling Loudspeaker – ASP100 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Nearity ASP100 used for?
The Nearity ASP100 is an in-ceiling loudspeaker for ceiling microphone systems in conference spaces. It is rated at 15 W, with 87 ±3 dB sensitivity measured at 1 W and 1 m. Procure.ae can advise on speaker placement for your room.
What is the power rating of the ASP100?
The ASP100 is rated at 15 W, according to the manufacturer. Its total harmonic distortion is below 5%, and its sensitivity is 87 ±3 dB at 1 W and 1 m, averaged across 200, 400, 600 and 800 Hz.
What are the ASP100 dimensions?
The ASP100 measures 207 mm in diameter and 150 mm in height, according to the manufacturer. The manufacturer's specifications do not state a cut-out size, so confirm the ceiling opening and clearance with Procure.ae before installation.
Does the ASP100 work with ceiling microphones?
Yes. The manufacturer describes the ASP100 as a loudspeaker used for ceiling microphone systems. The manufacturer's specifications do not list specific compatible microphone models, so confirm the pairing with Procure.ae before ordering.
How does the ASP100 differ from the ASP110?
The ASP100 is an in-ceiling unit of 207 mm diameter and 150 mm height, with 87 ±3 dB sensitivity. The ASP110 measures 185 x 167 x 250 mm and has 88 ±3 dB sensitivity. Both are rated at 15 W with total harmonic distortion below 5%.
