LGDigital SignageSKU 22XF1TJ

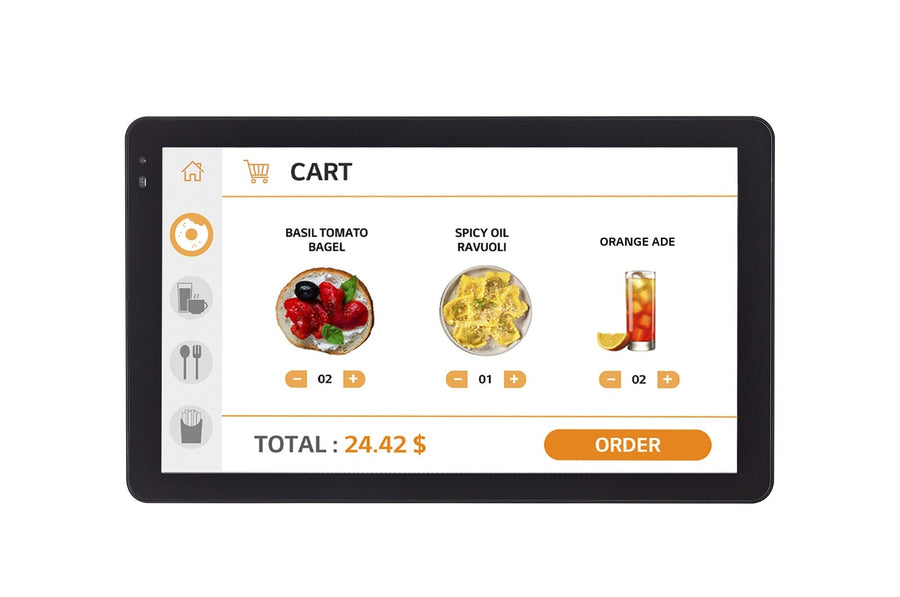

LG XF1T Outdoor Touch 21.5-inch Digital Signage Display – 22XF1TJ
The LG 22XF1TJ is a 21.5-inch outdoor touch screen for kiosk installations. It combines a 1,500-nit Full HD IPS panel with a USB touch interface and IP66 front protection. Procure.ae supplies this LG outdoor touch model across the UAE, with delivery and installation.
The 22XF1TJ has a 21.5-inch IPS (AHVA) panel at 1920 x 1080 Full HD resolution, rated at 1,500 nits typical with glass and 1,000:1 typical contrast. The front glass is tempered and shatter-proof, and the front carries an IP66 rating. The manufacturer lists the display for direct sunlight use. Its USB touch interface works alongside a 25 ms (G to G) response time, NTSC 72% colour gamut and a 178-degree viewing angle.
The 22XF1TJ is aimed at kiosk installations. It connects through HDMI, RJ45 LAN and RS232C in and out, with an external speaker output, and it is managed through SuperSign CMS and Control+ software. Compared with the 22XE1J, this model has a USB touch interface and tempered front glass, but no built-in Wi-Fi or Bluetooth. Its operating humidity range is 10% to 80%.
Screen Size
21.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
1,500 nits (typical, with glass)
Type
Outdoor Touch Digital Signage Display
- Touch interface
- Outdoor protection
- Impact-resistant glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Touch interface
a USB touch interface on the 21.5-inch panel.
02
Outdoor protection
an IP66 rating on the front of the display.
03
Impact-resistant glass
tempered and shatter-proof front glass.
04
Sunlight use
listed by the manufacturer for direct sunlight use.
05
Brightness
1,500 nits typical with glass on an IPS panel.
06
Connectivity
HDMI In, RJ45 LAN In, RS232C In and Out, and a USB 2.0 port.
07
Built-in sensors
temperature, auto brightness, humidity and gyro sensors.
08
Management
SuperSign CMS and Control+ support, with Connected Care.
Specifications
31 specificationsGeneral
Key FeaturesTouch USB interface, IP66 front rating, Tempered glass, Shatter-proof, Direct sunlight use, Auto brightness sensor, Network Ready, Connected Care
Model22XF1TJ
TypeOutdoor Touch Digital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, manual, RS-232C gender adapter
Display
Aspect Ratio16:9
Bezel Size25.5 mm (top and bottom), 30.5 mm (sides)
Brightness1,500 nits (typical, with glass)
Color Depth16.7 million colors
Color GamutNTSC 72%
Contrast Ratio1,000:1 (typical)
Panel TechnologyIPS (AHVA)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time25 ms (G to G)
Screen Size21.5 inch
TouchscreenYes (USB touch)
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.1
Storage16 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, RS232C In/Out, RJ45 LAN In × 1, USB 2.0 × 1 (touch), External speaker out × 1
Touch USB PortsYes
Power
Power Consumption0.5 W (power off)
Physical
ColorBlack
Dimensions557.3 x 322.8 x 60 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 50 °C
VESA Mount100 x 100 mm
Weight7.0 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
IP RatingIP66 (front only)
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and touch type of the LG 22XF1TJ?
The LG 22XF1TJ is a 21.5-inch IPS display with 1,920 x 1080 Full HD resolution and a USB touch interface. It is a touch model, unlike the non-touch 22XE1J. Its brightness is 1,500 nits typical with glass.
Is the 22XF1TJ suitable for outdoor kiosks?
Yes. The manufacturer lists an IP66 rating for the front, tempered and shatter-proof glass, 1,500 nits typical brightness and direct sunlight use. Its operating range is 0 to 50 °C, with 10% to 80% relative humidity.
Does the 22XF1TJ have built-in Wi-Fi?
No. The manufacturer lists no built-in Wi-Fi or Bluetooth for the 22XF1TJ. It connects through its RJ45 LAN input and supports the Network Ready and Local Network Sync features. It has one HDMI input for video.
What mounting does the 22XF1TJ support?
It has a 100 x 100 mm VESA standard mount interface. The monitor measures 557.3 x 322.8 x 60 mm and weighs 7.0 kg. Procure.ae can advise on mounting for kiosk installations.
Can the 22XF1TJ be integrated with a control system?
Yes. It has RS232C In and Out, an RJ45 LAN input, and supports HDMI-CEC, SNMP and Wake on LAN. These interfaces allow integration with control and monitoring systems. It also has an external speaker output and a USB 2.0 touch port.
Can I buy the 22XF1TJ in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
