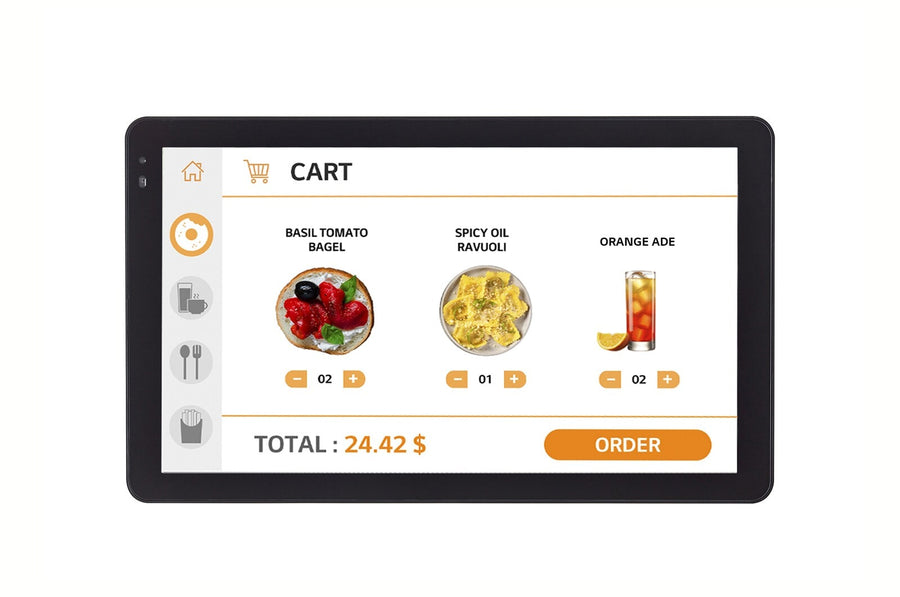

LG XF1T Outdoor Touch 21.5-inch Digital Signage Display – 22XF1TJ
The LG 22XF1TJ is a 21.5-inch outdoor touch screen for kiosk installations. It combines a 1,500-nit Full HD IPS panel with a USB touch interface and IP66 front protection. Procure.ae supplies this LG outdoor touch model across the UAE, with delivery and installation.
The 22XF1TJ has a 21.5-inch IPS (AHVA) panel at 1920 x 1080 Full HD resolution, rated at 1,500 nits typical with glass and 1,000:1 typical contrast. The front glass is tempered and shatter-proof, and the front carries an IP66 rating. The manufacturer lists the display for direct sunlight use. Its USB touch interface works alongside a 25 ms (G to G) response time, NTSC 72% colour gamut and a 178-degree viewing angle.
The 22XF1TJ is aimed at kiosk installations. It connects through HDMI, RJ45 LAN and RS232C in and out, with an external speaker output, and it is managed through SuperSign CMS and Control+ software. Compared with the 22XE1J, this model has a USB touch interface and tempered front glass, but no built-in Wi-Fi or Bluetooth. Its operating humidity range is 10% to 80%.
Key features
Specifications
| Key Features | Touch USB interface, IP66 front rating, Tempered glass, Shatter-proof, Direct sunlight use, Auto brightness sensor, Network Ready, Connected Care |
| Model | 22XF1TJ |
| Type | Outdoor Touch Digital Signage Display |
| What's in the Box | Remote controller (2 batteries), power cord, manual, RS-232C gender adapter |
| Aspect Ratio | 16:9 |
| Bezel Size | 25.5 mm (top and bottom), 30.5 mm (sides) |
| Brightness | 1,500 nits (typical, with glass) |
| Color Depth | 16.7 million colors |
| Color Gamut | NTSC 72% |
| Contrast Ratio | 1,000:1 (typical) |
| Panel Technology | IPS (AHVA) |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 25 ms (G to G) |
| Screen Size | 21.5 inch |
| Touchscreen | Yes (USB touch) |
| Viewing Angle | 178° x 178° |
| Operating System | webOS 4.1 |
| Storage | 16 GB |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 1, RS232C In/Out, RJ45 LAN In × 1, USB 2.0 × 1 (touch), External speaker out × 1 |
| Touch USB Ports | Yes |
| Power Consumption | 0.5 W (power off) |
| Color | Black |
| Dimensions | 557.3 x 322.8 x 60 mm |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 0 to 50 °C |
| VESA Mount | 100 x 100 mm |
| Weight | 7.0 kg |
| Certifications | CB / NRTL, FCC Class A, CE, KC, VCCI |
| IP Rating | IP66 (front only) |
