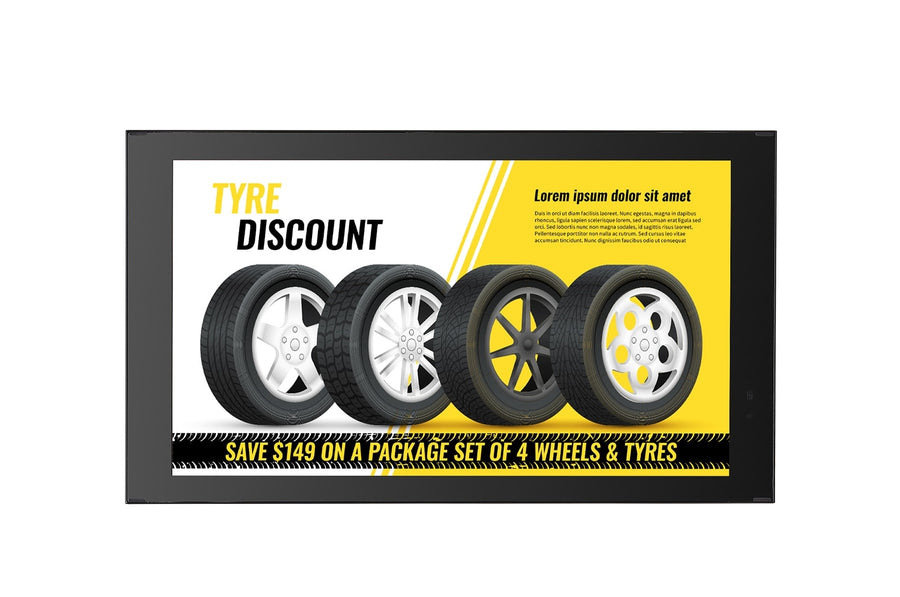

LG XE1J Outdoor High-Brightness 21.5-inch Digital Signage Display – 22XE1J
The LG 22XE1J is a 21.5-inch outdoor digital signage display with 1,500 nits typical brightness, a Full HD IPS panel and an IP56 rating. It suits outdoor sites that need a bright screen with built-in Wi-Fi, Bluetooth and webOS 4.1. Procure.ae supplies this LG model across the UAE.
The 22XE1J has a 21.5-inch IPS (AHVA) panel at 1920 x 1080 Full HD resolution, rated at 1,500 nits typical with glass and 1,000:1 typical contrast. Its chemically strengthened, anti-reflective and shatter-proof glass suits bright outdoor settings. The display offers a 25 ms (G to G) response time, NTSC 72% colour gamut and a 178-degree viewing angle, and its operation is rated 24 hours a day, 7 days a week.
The 22XE1J includes built-in Wi-Fi and Bluetooth, webOS 4.1, Network Ready and Play via URL, plus SuperSign CMS and Control+ support. It has a built-in fan and an auto brightness sensor, and it mounts on a 100 x 100 mm VESA interface in portrait or landscape. Unlike the 22XF1TJ touch model, this non-touch unit has built-in Wi-Fi and Bluetooth and two HDMI inputs. Its smart energy saving mode draws 40 W.
Screen Size
21.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
1,500 nits (typical, with glass)
Type
Outdoor Digital Signage Display
- Bright IPS panel
- IP56 rating
- Tough glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Bright IPS panel
1,500-nit typical brightness on a 21.5-inch Full HD IPS display.
02
IP56 rating
an IP56 rating for dust and water protection.
03
Tough glass
chemically strengthened, anti-reflective and shatter-proof glass.
04
Connectivity
two HDMI inputs, an RJ45 LAN input, an RS232C input and a USB 2.0 port.
05
Wireless
built-in Wi-Fi and Bluetooth for network connection.
06
Remote management
SuperSign CMS and Control+ support, with Network Ready and Play via URL.
07
Operating range
an operating temperature range of -30 to 50 °C.
08
Energy saving
smart energy saving mode draws 40 W, according to the manufacturer's listing.
Specifications
32 specificationsGeneral
Key Features1,500-nit IPS panel, IP56 rating, Chemically strengthened glass, Anti-reflective glass, Built-in sensors, Wi-Fi and Bluetooth, Play via URL, Network Ready
Model22XE1J
TypeOutdoor Digital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, manual, RS-232C gender adapter
Display
Aspect Ratio16:9
Bezel Size38.3 mm (sides), 24.0 mm (top and bottom)
Brightness1,500 nits (typical, with glass)
Color Depth16.7 million colors
Color GamutNTSC 72%
Contrast Ratio1,000:1 (typical)
OrientationPortrait and landscape
Panel TechnologyIPS (AHVA)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time25 ms (G to G)
Screen Size21.5 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.1
Storage16 GB
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, RS232C In × 1, RJ45 LAN In × 1, USB 2.0 × 1, External speaker out × 1
Wi-FiBuilt-in
Power
Power Consumption40 W (smart energy saving mode), 0.5 W (power off)
Physical
ColorBlack
Dimensions557.3 x 319.8 x 65 mm
Operating Humidity5% to 100% RH
Operating Temperature-30 to 50 °C
VESA Mount100 x 100 mm
Weight8.3 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
IP RatingIP56
Downloads
Manufacturer documents for the LG XE1J Outdoor High-Brightness 21.5-inch Digital Signage Display – 22XE1J — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and brightness of the LG 22XE1J?
The LG 22XE1J has a 21.5-inch IPS panel with 1,920 x 1080 Full HD resolution. Typical brightness is 1,500 nits with glass, and typical contrast is 1,000:1. The panel has a 25 ms (G to G) response time and displays 16.7 million colors.
Is the 22XE1J suitable for outdoor use?
Yes. It carries an IP56 rating and operates from -30 to 50 °C, with chemically strengthened, anti-reflective glass. The manufacturer's specifications list it for direct sunlight use. It also has a 178-degree viewing angle and an operating humidity range of 5% to 100%.
Can the 22XE1J be mounted on a wall or arm?
Yes. It has a 100 x 100 mm VESA standard mount interface. The monitor measures 557.3 x 319.8 x 65 mm and weighs 8.3 kg, and it supports both portrait and landscape orientation. Procure.ae can advise on mounting for your site.
Does the 22XE1J connect to a network and content management system?
Yes. It has an RJ45 LAN input, built-in Wi-Fi and Bluetooth, and supports SuperSign CMS and Control+. It also supports Network Ready, Play via URL and webRTC. Wake on LAN and HDMI-CEC are also supported.
What power supply does the 22XE1J need?
It runs on 100–240 V AC, 50/60 Hz. Smart energy saving mode draws 40 W, and it draws 0.5 W when powered off. Its operating humidity range is 5% to 100%.
