LGVideo WallsSKU 47WV30BR

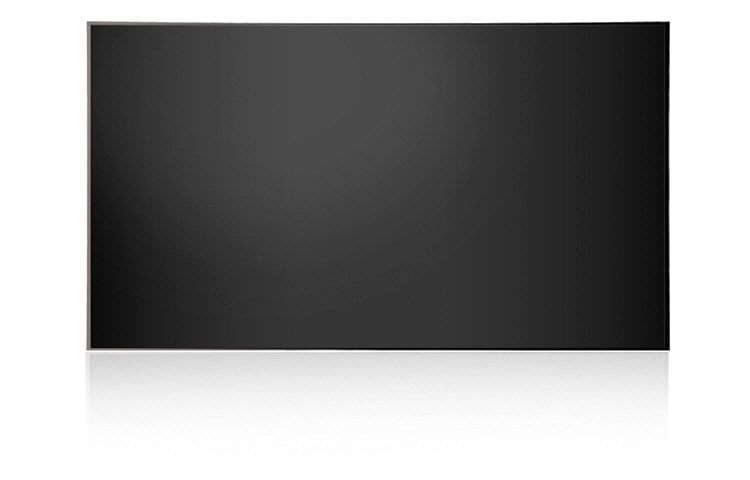

LG WV30B Series 47-inch Video Wall Display – 47WV30BR
The LG 47WV30BR is a 47-inch video wall display from the WV30B series, with a 1366 x 768 HD panel, 700 nits brightness and a 9 ms response time. It offers local dimming, Wide Color Control and RS-232C and LAN control. Procure.ae supplies the LG 47WV30BR in the UAE, with delivery and installation.
The 47WV30BR has a 47-inch 16:9 panel with 1366 x 768 (HD) resolution, 700 nits brightness and a 500,000:1 contrast ratio as listed by the manufacturer. Local dimming and 8-bit color reproduction are included, along with Wide Color Control, XD Color and Image Sticking Minimization. Picture modes include Vivid, Standard, Cinema, Sports and Game, and the Dual XD Engine is included. Audio output is 10 W + 10 W with Clear Voice II, and Energy Saving Mode offers Off, Minimum, Medium, Maximum and Screen Off.
The display suits video walls and digital signage installations where several panels show one image. It is controlled through RS-232C in and out, a LAN port and an external IR input. Mounting uses an 800 x 400 mm VESA pattern. Typical power consumption is 122 W on, with 0.5 W standby. Inputs include HDMI 1.3 with Deep Color, DVI in and out, RGB in and out, and a PC audio input.
Screen Size
47 inch
Resolution
1366 x 768 (HD)
Brightness
700 nits
Type
Video Wall Display
- Local dimming
- 700 nits brightness
- Wide Color Control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Local dimming
Local dimming is included on the 47-inch panel.
02
700 nits brightness
Typical brightness of 700 cd/m² with a 9 ms response time.
03
Wide Color Control
WCC and XD Color (active color management) are included.
04
Image sticking minimization
ISM supports white wash and color wash methods.
05
Picture modes
Vivid, Standard, Cinema, Sports and Game, with Warm, Medium and Cool color temperatures.
06
Audio output
10 W + 10 W speakers with Clear Voice II.
07
Control and connectivity
RS-232C in and out, LAN, USB, IR input and HDMI 1.3 with Deep Color.
08
Energy saving modes
Off, Minimum, Medium, Maximum and Screen Off options.
Specifications
20 specificationsGeneral
ControlsRS-232C in/out, LAN, external IR input
Key FeaturesLocal dimming, 700 nits, Wide Color Control, XD Color, image sticking minimization, Dual XD Engine, Clear Voice II, RS-232C and LAN control, 800 x 400 mm VESA
Model47WV30BR
TypeVideo Wall Display
Display
Aspect Ratio16:9
Brightness700 nits
Color Depth8-bit
Color TemperatureWarm / Medium / Cool
Contrast Ratio500,000:1 (as listed)
OrientationLandscape (16:9 and other aspect ratio modes listed)
Resolution1366 x 768 (HD)
Response Time9 ms
Screen Size47 inch
Viewing Angle178 x 178 degrees
Audio
Speaker Output10 W + 10 W
Connectivity
Input Voltage100–240 V, 50/60 Hz
PortsHDMI 1.3 with Deep Color × 1, DVI In × 1, DVI Out × 1, RGB In (D-sub 15-pin) × 1, RGB Out (D-sub 15-pin) × 1, PC audio in × 1, RS-232C In/Out, LAN, USB, IR In
Power
Power Consumption122 W (on, IEC 62087 Ed. 2)
Standby Power0.5 W
Physical
VESA Mount800 x 400 mm
Downloads
Manufacturer documents for the LG WV30B Series 47-inch Video Wall Display – 47WV30BR — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the LG 47WV30BR be used in a video wall?
Yes. The 47WV30BR is listed as a video wall display in the WV30B series, with a 1366 x 768 panel and 178 x 178 degree viewing angles. Procure.ae can advise on the panel count, controller and mounting for your wall.
What resolution and brightness does it have?
It has a 1366 x 768 (HD) resolution and 700 nits brightness. The manufacturer lists a 9 ms response time, a 178 x 178 degree viewing angle and 8-bit color reproduction.
Does it support portrait orientation?
The manufacturer's specifications do not state a portrait orientation option for the 47WV30BR. They list aspect ratio modes of 16:9, Just Scan, 4:3, Zoom and Cinema Zoom 1, and Procure.ae can confirm the mounting options for your layout.
Can it be wall-mounted?
Yes. The display has an 800 x 400 mm VESA mounting pattern. Procure.ae can advise on a suitable mount and on installation across the UAE.
How is it controlled and connected to a network?
Yes. It has RS-232C control in and out, a LAN port, USB and an external IR input. Procure.ae can advise on control and integration for your system.
Can I buy the LG 47WV30BR in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
