LGDigital SignageSKU 86UP5R-E

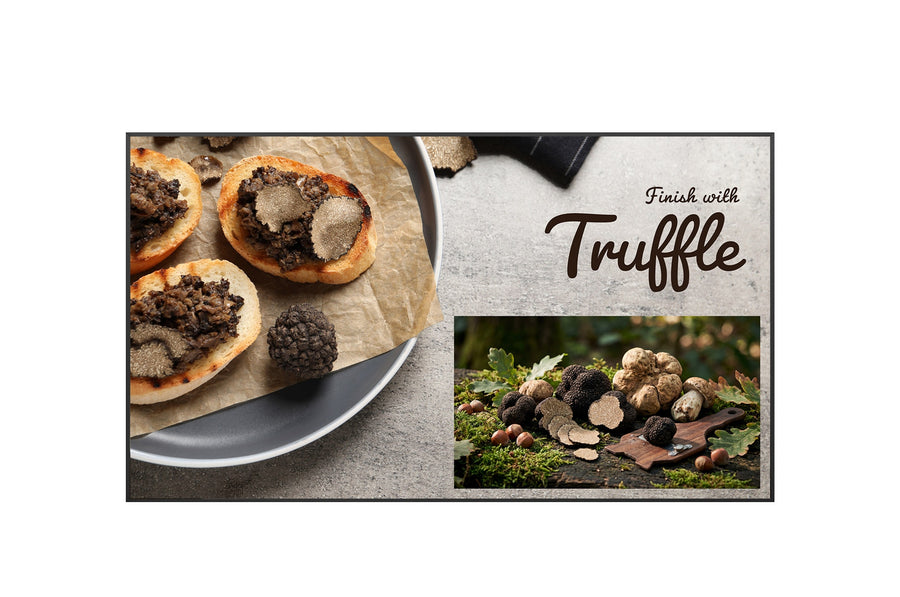

LG webOS 86-inch UHD Digital Signage Display – 86UP5R-E
The LG 86UP5R-E is an 86-inch UHD digital signage display running webOS 8.0, for lobbies, retail floors and corporate reception areas. It offers 3840 x 2160 resolution, 500 nits typical brightness and a 120 Hz refresh rate, with HDMI and DisplayPort inputs. Procure.ae supplies the LG 86UP5R-E in the UAE.
The 86UP5R-E uses an ADS panel with 3840 x 2160 (UHD) resolution, 500 nits typical brightness and a 120 Hz refresh rate. Contrast is listed at 1,200:1 with 1,000,000:1 dynamic contrast, and 178 x 178 viewing angles with BT.709 95% color gamut suit mixed content at wide angles. The display has an 8 ms grey-to-grey response time, 32 GB eMMC storage and built-in Wi-Fi and Bluetooth, and it operates 24/7 in portrait or landscape.
The display works with SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS, plus LG Connected Care for remote management. Inputs include HDMI (3), DisplayPort (HDCP 2.2/1.3), RS232C in and out, RJ45 LAN, IR in and USB ports. PIP, 4-way PBP split screen and 6 video tags support multi-screen content, and tile mode suits video walls. The model uses a 600 x 400 mm VESA mount and lists Cisco certification and Crestron Connected support.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 120 Hz refresh
- webOS 8.0 platform
- DisplayPort and HDMI inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
120 Hz refresh
120 Hz refresh rate on a 3840 x 2160 panel.
02
webOS 8.0 platform
Built-in webOS 8.0 with SuperSign and Cloud management software.
03
DisplayPort and HDMI inputs
HDMI In × 3 and DisplayPort In with HDCP 2.2/1.3.
04
Multi-screen layouts
PIP, 4-way PBP split screen and 6 video tags.
05
Video wall tile mode
Tile Mode Setting with screen rotation for multi-display walls.
06
Remote management
SNMP, Crestron Connected, Cisco certification and Connected Care.
07
Built-in connectivity
Wi-Fi and Bluetooth built in, with 32 GB eMMC storage.
08
Energy and protection
Smart Energy Saving at 144 W and an IP5X rating.
Specifications
33 specificationsGeneral
Key FeatureswebOS 8.0, 120 Hz, PIP and 4-way PBP, Tile mode, SuperSign CMS, Cloud, SNMP, Crestron Connected
Model86UP5R-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, regulation book, phone to RS232C gender, cable holders
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyADS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 8.0
Storage32 GB
Audio
Speaker Output10 W x 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In, RS232C In/Out, RJ45 LAN In, IR In, USB 3.0 × 1, USB 2.0 × 1, Audio Out
Wi-FiBuilt-in
Power
Power Consumption144 W (Smart Energy Saving, 70%)
Standby Power0.5 W
Physical
Dimensions1928.8 x 1099.8 x 29.7 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight53 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC
IP RatingIP5X
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86UP5R-E suitable for 24/7 operation?
Yes. The manufacturer lists 24/7 operation hours for the 86UP5R-E. PM mode, Wake on LAN, Smart Energy Saving and an Auto Brightness Sensor help manage power use and brightness over long running hours.
Can the LG 86UP5R-E be wall-mounted?
Yes. It uses a 600 x 400 mm VESA mount interface, and the head weight is 53 kg. Use a bracket rated for that load and have it installed by a qualified installer.
Does it support portrait orientation?
Yes. The manufacturer lists portrait and landscape operation, along with screen rotation and external input rotation. Portrait suits vertical menus, wayfinding and narrow corridors, while landscape suits wide walls and presentation use.
Can several 86UP5R-E units form a video wall?
Yes. Tile Mode Setting is listed for multi-display walls, and Gapless Playback and Setting Data Cloning help keep content and settings consistent across units. Plan the mounting frame and cable routing before installation.
How is the display integrated with a control system?
The display has RS232C in and out, RJ45 LAN, IR in and HDMI-CEC for control, plus SNMP and Crestron Connected for system integration. Use RS232C for serial control or the LAN port for network control, and confirm integration details with Procure.ae.
