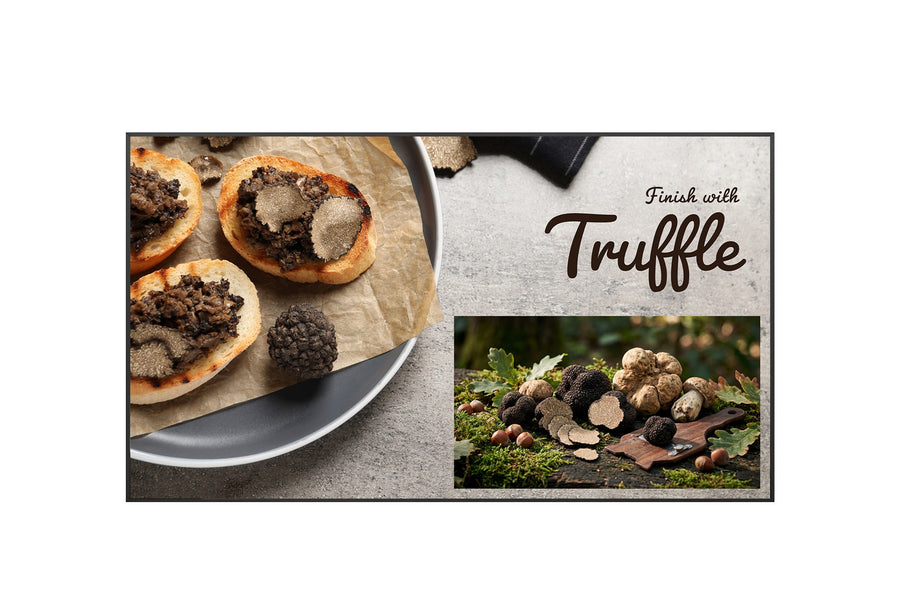

LG webOS 86-inch UHD Digital Signage Display – 86UP5R-E
The LG 86UP5R-E is an 86-inch UHD digital signage display running webOS 8.0, for lobbies, retail floors and corporate reception areas. It offers 3840 x 2160 resolution, 500 nits typical brightness and a 120 Hz refresh rate, with HDMI and DisplayPort inputs. Procure.ae supplies the LG 86UP5R-E in the UAE.
The 86UP5R-E uses an ADS panel with 3840 x 2160 (UHD) resolution, 500 nits typical brightness and a 120 Hz refresh rate. Contrast is listed at 1,200:1 with 1,000,000:1 dynamic contrast, and 178 x 178 viewing angles with BT.709 95% color gamut suit mixed content at wide angles. The display has an 8 ms grey-to-grey response time, 32 GB eMMC storage and built-in Wi-Fi and Bluetooth, and it operates 24/7 in portrait or landscape.
The display works with SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS, plus LG Connected Care for remote management. Inputs include HDMI (3), DisplayPort (HDCP 2.2/1.3), RS232C in and out, RJ45 LAN, IR in and USB ports. PIP, 4-way PBP split screen and 6 video tags support multi-screen content, and tile mode suits video walls. The model uses a 600 x 400 mm VESA mount and lists Cisco certification and Crestron Connected support.
Key features
Specifications
| Key Features | webOS 8.0, 120 Hz, PIP and 4-way PBP, Tile mode, SuperSign CMS, Cloud, SNMP, Crestron Connected |
| Model | 86UP5R-E |
| Type | Digital Signage Display |
| What's in the Box | Remote controller (2 batteries), power cord, quick start guide, regulation book, phone to RS232C gender, cable holders |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Color Depth | 1.07 billion colors |
| Color Gamut | BT.709 95% |
| Contrast Ratio | 1,200:1 |
| Orientation | Portrait / Landscape |
| Panel Technology | ADS |
| Refresh Rate | 120 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Viewing Angle | 178° x 178° |
| Operating System | webOS 8.0 |
| Storage | 32 GB |
| Speaker Output | 10 W x 2 |
| Bluetooth | Built-in |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 3, DisplayPort In, RS232C In/Out, RJ45 LAN In, IR In, USB 3.0 × 1, USB 2.0 × 1, Audio Out |
| Wi-Fi | Built-in |
| Power Consumption | 144 W (Smart Energy Saving, 70%) |
| Standby Power | 0.5 W |
| Dimensions | 1928.8 x 1099.8 x 29.7 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 10% to 80% |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 53 kg |
| Certifications | CB / NRTL, FCC Class B, CE, KC |
| IP Rating | IP5X |
