LGVideo WallsSKU 49VL5G-A

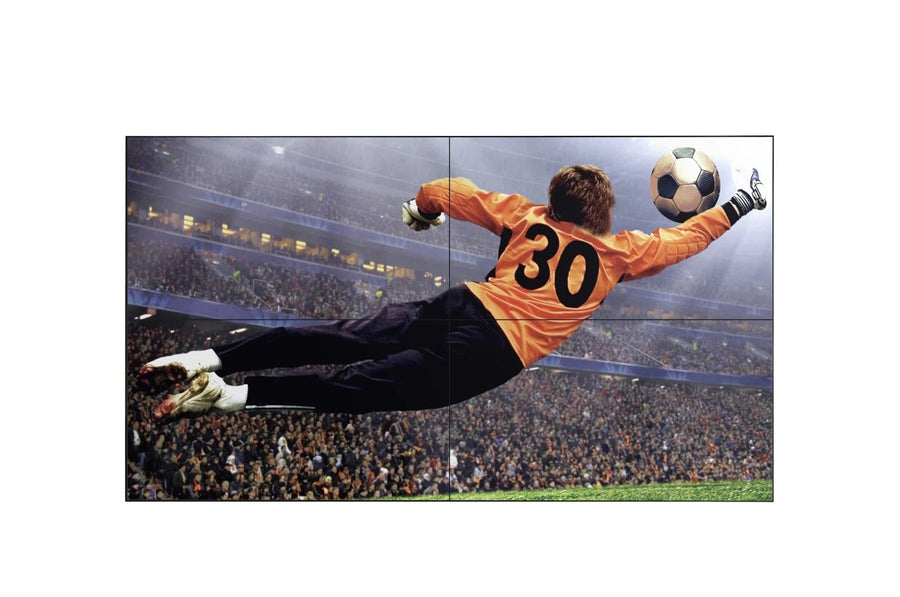

LG VL5G Series 49-inch Video Wall Display – 49VL5G-A
The LG 49VL5G-A is a 49-inch Full HD video wall display with a 1920 x 1080 IPS panel, 500 nits brightness and bezels of 1.25 to 2.25 mm. It supports SuperSign content management and on-screen display in 20 languages, including Arabic. The model is discontinued, and Procure.ae can confirm current availability in the UAE.
The 49VL5G-A uses a 49-inch IPS panel with direct backlighting, 1920 x 1080 (FHD) resolution and 500 nits typical brightness. The listed contrast ratio is 1,000:1, with 500,000:1 dynamic contrast. The panel shows 10-bit color (1.07 billion colors) at 60 Hz with an 8 ms gray-to-gray response time. Viewing angles are 178 x 178 degrees, and the 3% haze surface treatment is applied. The manufacturer lists a life of 60,000 hours typical and 50,000 hours minimum, rated for 24/7 operation in portrait or landscape orientation.
Its narrow bezels suit video walls built from multiple panels, and tile mode settings support up to 15 x 15 displays. Control options include RS-232C sync, SNMP, Wake on LAN, HDMI-CEC and Crestron Inside compatibility. The embedded CMS supports local content scheduling and fail-over. Mounting uses a 600 x 400 mm VESA pattern. The on-screen display is available in 20 languages, including Arabic.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (typical)
Type
Video Wall Display
- Full HD IPS panel
- Narrow bezels
- Tile mode
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD IPS panel
1920 x 1080 IPS panel with 500 nits typical brightness.
02
Narrow bezels
Bezel widths of 1.25 to 2.25 mm on the edges of each panel.
03
Tile mode
Tile mode setting supports up to 15 x 15 displays.
04
SuperSign software
SuperSign CMS, Control and Control+, WB and Media Editor are listed.
05
Remote management
SNMP, RS-232C, LAN and Wake on LAN are supported.
06
Arabic on-screen display
On-screen display is available in 20 languages, including Arabic.
07
Temperature sensor
Built-in temperature sensor and auto set ID.
08
Energy and safety
ErP compliant, 60 W smart energy saving and CB / NRTL safety rating.
Specifications
30 specificationsGeneral
ControlsRS-232C, RJ45 LAN, IR
Key FeaturesNarrow bezels, tile mode up to 15 x 15, SuperSign CMS, SNMP, Crestron Inside compatibility, temperature sensor, 20-language OSD including Arabic, auto set ID
Model49VL5G-A
TypeVideo Wall Display
Display
Aspect Ratio16:9
BacklightDirect
Bezel SizeT/R/L/B 2.25 / 1.25 / 2.25 / 1.25 mm
Brightness500 nits (typical)
Color Depth10-bit (1.07 billion colors)
Color GamutNTSC 72%
Contrast Ratio1,000:1 (dynamic 500,000:1)
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms (gray to gray)
Screen Size49 inch
Viewing Angle178 x 178 degrees
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsInputs: HDMI × 2 (HDCP 1.4), DP × 1 (HDCP 1.3), DVI-D × 1 (HDCP 1.4), audio in, RS-232C in, RJ45 LAN, IR in, USB 2.0 Type-A × 1; outputs: DP out, audio out, RS-232C out
Power
Power Consumption60 W (smart energy saving)
Standby Power0.5 W
Physical
Dimensions1077.6 x 607.8 x 89.7 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight16.9 kg (display head)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP
Safety RatingCB / NRTL
Downloads
Manufacturer documents for the LG VL5G Series 49-inch Video Wall Display – 49VL5G-A — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 49VL5G-A suitable for a video wall?
Yes. The display has narrow bezels of 1.25 to 2.25 mm, tile mode settings up to 15 x 15 and a 600 x 400 mm VESA mount. Procure.ae can advise on the panel count and controller for your wall.
What resolution and brightness does it have?
It has a 1920 x 1080 (Full HD) resolution and 500 nits typical brightness. The panel shows 10-bit color at 60 Hz, with an 8 ms gray-to-gray response time.
Does it support Arabic on-screen display?
Yes. The on-screen display is available in 20 languages, including Arabic, English, French, German and Spanish. Procure.ae can confirm the language setup for your installation.
Can it be controlled and monitored over a network?
Yes. It has an RJ45 LAN port, RS-232C in and out, IR in and SNMP support. The manufacturer also lists Crestron Inside compatibility and Connected Care. Procure.ae can advise on integration for your system.
Can it be wall-mounted?
Yes. The display uses a 600 x 400 mm VESA standard mount interface and has a handle. Its dimensions are 1077.6 x 607.8 x 89.7 mm, and the display head weighs 16.9 kg.
Can I buy the LG 49VL5G-A in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
