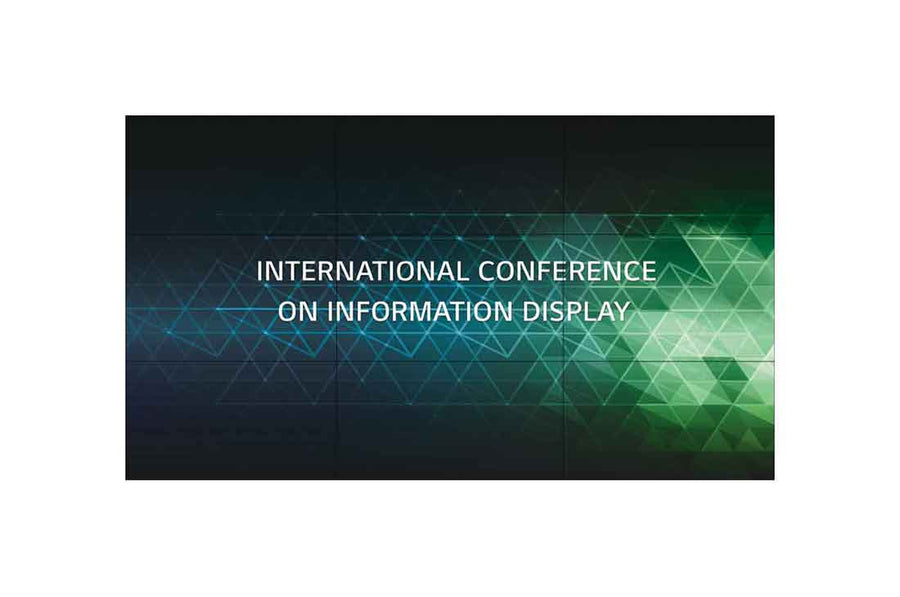

LG VH7E 55-inch Full HD Video Wall Display – 55VH7E-H
The LG 55VH7E-H is a 55-inch Full HD video wall display with a 0.9 mm even bezel and 700 nits typical brightness. It suits lobbies, control rooms and retail walls, and Procure.ae supplies it across the UAE with delivery and installation.
The 55VH7E-H has a 55-inch panel with 1920 x 1080 Full HD resolution and 700 nits typical brightness. Its 0.9 mm even bezel gives a 1.8 mm bezel-to-bezel gap when panels are tiled. The display operates at 0 to 40 °C with 10% to 80% humidity and is rated at 110 W in Smart Energy Saving mode. The 0.9 mm even bezel is listed for tiled wall layouts.
The unit uses built-in power and a 600 x 400 mm VESA mounting interface, and it is OPS type compatible in piggyback form. Control uses RS232C, RJ45 LAN and IR, and the manufacturer lists SuperSign CMS and SuperSign Control / Control+ software. It has a 1,211.4 x 682.2 x 86.5 mm head size and weighs 18.6 kg, so wall structure should be checked before installation. Model code 55VH7E-H.AMN is also listed.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Video Wall Display
- Even bezel
- Full HD
- Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Even bezel
0.9 mm even bezel with 1.8 mm bezel-to-bezel gap
02
Full HD
1920 x 1080 resolution on a 55-inch panel
03
Brightness
700 nits typical
04
Mounting
600 x 400 mm VESA interface
05
Inputs
HDMI (2), DisplayPort, DVI-D and USB 2.0
06
Control
RS232C, RJ45 LAN and IR connections
07
OPS compatible
piggyback OPS support
08
Software
SuperSign CMS and SuperSign Control / Control+
Specifications
16 specificationsGeneral
Key Features700 nits brightness, 0.9 mm even bezel, OPS-compatible (piggyback), SuperSign CMS support, RS232C and LAN control
Model55VH7E-H
TypeVideo Wall Display
What's in the BoxRemote controller, power cord, RS232C cable, LAN cable, DP cable, IR receiver, guide bracket, screws, manual
Display
Bezel Size0.9 mm even bezel (B to B 1.8 mm)
Brightness700 nits
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, DVI-D In × 1, USB 2.0 × 1, DisplayPort Out × 1, RS232C In/Out, RJ45 (LAN) In/Out, IR In
Power
Power Consumption110 W (Smart Energy Saving)
Physical
Dimensions1211.4 x 682.2 x 86.5 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight18.6 kg
Downloads
Manufacturer documents for the LG VH7E 55-inch Full HD Video Wall Display – 55VH7E-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 55VH7E-H?
The LG 55VH7E-H is a 55-inch Full HD (1920 x 1080) video wall display with a 0.9 mm even bezel and 700 nits typical brightness. It is designed for tiled walls in lobbies, control rooms and retail spaces, and it runs in portrait or landscape orientation.
Can the 55VH7E-H be wall mounted?
Yes. The display has a 600 x 400 mm VESA mounting interface and ships with a guide bracket. Its 1,211.4 x 682.2 x 86.5 mm head size and 18.6 kg weight should be checked against the wall structure before installation.
Does the 55VH7E-H support an OPS media player?
Yes. The manufacturer lists it as OPS type compatible in piggyback form, so an OPS media player can be fitted to the back of the unit. RS232C, RJ45 LAN and IR control connections allow remote management.
What software does the 55VH7E-H work with?
The manufacturer lists SuperSign CMS for content management and SuperSign Control and Control+ for control and monitoring. A remote controller is included, and the display can also be managed over RJ45 LAN.
What power does the 55VH7E-H need?
It runs on 100–240 V AC, 50/60 Hz with built-in power. The manufacturer rates it at 110 W in Smart Energy Saving mode. It is rated for 0 to 40 °C operation and 10% to 80% humidity.
