LGDigital SignageSKU 65UM3DF

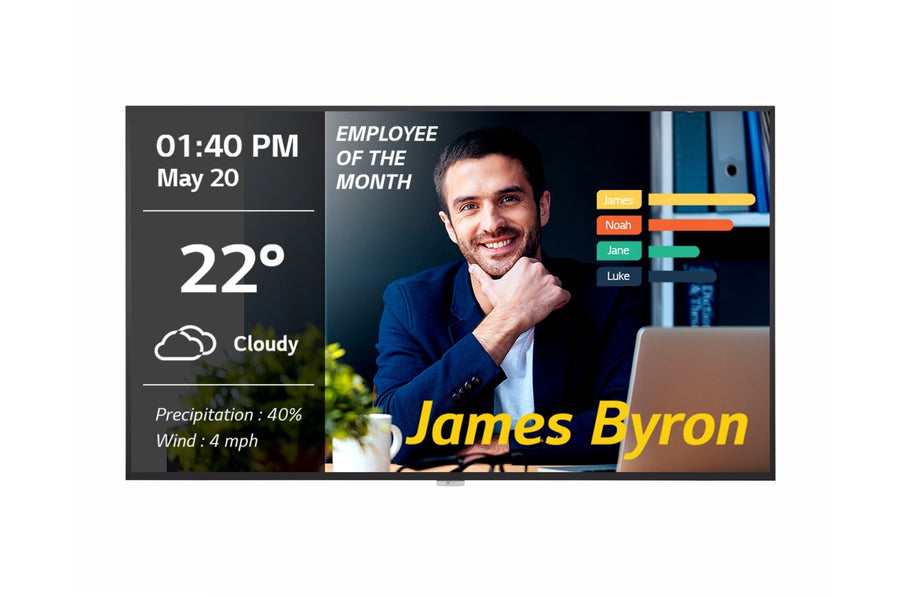

LG UM3D 65-inch UHD Digital Signage Display – 65UM3DF
The LG 65UM3DF is a discontinued 65-inch UHD digital signage display with an IPS panel, 350 nits typical brightness and IP5X dust protection. It was designed for 18-hour-a-day use in portrait or landscape orientation and supported OPS compatibility. Procure.ae can confirm current UAE availability or recommend the current successor model.
The IPS panel provides 3840 x 2160 UHD resolution with 350 nits typical brightness and a 1,100:1 contrast ratio. The viewing angle is 178 x 178 degrees and the response time is 8 ms (G to G). The display supports portrait and landscape orientation and lists an 18-hour-a-day operating schedule. The manufacturer rates the panel for a 50,000-hour life, and the IP5X rating covers dust protection for the housing.
The 65UM3DF is built for signage installations that need an IP5X dust-protected housing and an OPS-compatible design. It is controlled through RS-232C, RJ-45 LAN and IR, and manages content with SuperSign CMS and SuperSign Control software. The 300 x 300 mm VESA interface and face-down tilt of up to 30 degrees suit wall and tilted mounting. Procure.ae can recommend the current successor model for projects that need the same features.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Type
Digital Signage Display
- IP5X dust protection
- IPS UHD panel
- Portrait and landscape
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
IP5X dust protection
Rated for dust-prone installations.
02
IPS UHD panel
3840 x 2160 resolution with 350 nits typical brightness.
03
Portrait and landscape
Supports both orientations for signage content.
04
Network control
RS-232C in and out, RJ-45 LAN and IR input.
05
SuperSign software
SuperSign CMS and SuperSign Control for content and monitoring.
06
OPS compatible
Designed to accept an OPS media player.
07
Signage 365 Care
Listed as available for this model.
08
Energy saving
Smart Energy Saving mode at 85 W.
Specifications
28 specificationsGeneral
Key FeaturesIP5X dust protection, OPS type compatible, SuperSign CMS, SuperSign Control and Control+, Signage 365 Care, portrait and landscape orientation
Model65UM3DF
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick setup guide, regulation book, phone to RS-232C gender adapter
Display
Aspect Ratio16:9
Bezel Size9.9 mm sides and top, 14.4 mm bottom
Brightness350 nits (typical)
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size65 inch
Viewing Angle178 x 178 degrees
Connectivity
EthernetRJ-45 LAN In
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232C In/Out (4-pin phone jack)
Power
Power Consumption110 W (typical), 160 W (maximum), 85 W (smart energy saving)
Physical
ColorBlack bezel
Dimensions1453.3 x 844.0 x 39.9 mm (W x H x D)
Duty Cycle18 hours a day
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
TiltFace-down up to 30° (30 °C, 50% humidity)
VESA Mount300 x 300 mm
Weight28.2 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP, Energy Star 8.0
IP RatingIP5X
Downloads
Manufacturer documents for the LG UM3D 65-inch UHD Digital Signage Display – 65UM3DF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the LG 65UM3DF?
The LG 65UM3DF has a 65-inch IPS screen with a native resolution of 3840 x 2160 (4K UHD). It uses a 16:9 aspect ratio, supports portrait and landscape orientation, and lists 350 nits typical brightness with a 1,100:1 contrast ratio.
Is the 65UM3DF suitable for a dusty environment?
The manufacturer lists an IP5X rating for the 65UM3DF, which covers dust protection. The stated operating range is 0 to 40 °C at 10% to 80% humidity, and the display is rated for 18 hours a day. Confirm the site conditions with Procure.ae before installation.
How is the 65UM3DF mounted?
The display uses a 300 x 300 mm VESA interface. The monitor measures 1453.3 x 844.0 x 39.9 mm and weighs 28.2 kg without packaging, so use a bracket rated for that load. The manufacturer lists a face-down tilt of up to 30 degrees under stated conditions.
What control and management options does the 65UM3DF support?
The manufacturer lists RS-232C in and out, RJ-45 LAN and IR input for control, along with SuperSign CMS, SuperSign Control and Control+, and Signage 365 Care. It is also listed as OPS type compatible for an external media player.
