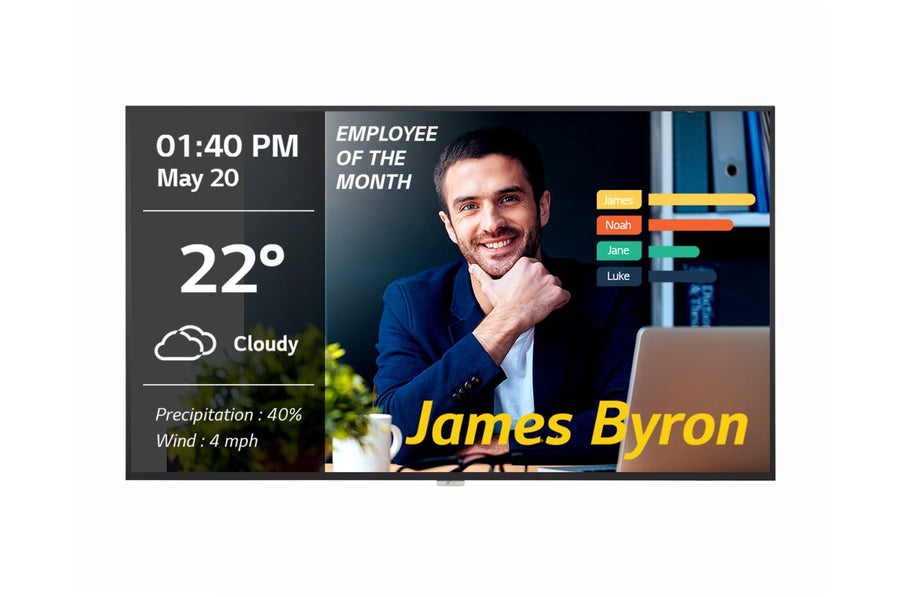

LG UM3D 65-inch UHD Digital Signage Display – 65UM3DF
The LG 65UM3DF is a discontinued 65-inch UHD digital signage display with an IPS panel, 350 nits typical brightness and IP5X dust protection. It was designed for 18-hour-a-day use in portrait or landscape orientation and supported OPS compatibility. Procure.ae can confirm current UAE availability or recommend the current successor model.
The IPS panel provides 3840 x 2160 UHD resolution with 350 nits typical brightness and a 1,100:1 contrast ratio. The viewing angle is 178 x 178 degrees and the response time is 8 ms (G to G). The display supports portrait and landscape orientation and lists an 18-hour-a-day operating schedule. The manufacturer rates the panel for a 50,000-hour life, and the IP5X rating covers dust protection for the housing.
The 65UM3DF is built for signage installations that need an IP5X dust-protected housing and an OPS-compatible design. It is controlled through RS-232C, RJ-45 LAN and IR, and manages content with SuperSign CMS and SuperSign Control software. The 300 x 300 mm VESA interface and face-down tilt of up to 30 degrees suit wall and tilted mounting. Procure.ae can recommend the current successor model for projects that need the same features.
Key features
Specifications
| Key Features | IP5X dust protection, OPS type compatible, SuperSign CMS, SuperSign Control and Control+, Signage 365 Care, portrait and landscape orientation |
| Model | 65UM3DF |
| Type | Digital Signage Display |
| What's in the Box | Remote controller, power cord, quick setup guide, regulation book, phone to RS-232C gender adapter |
| Aspect Ratio | 16:9 |
| Bezel Size | 9.9 mm sides and top, 14.4 mm bottom |
| Brightness | 350 nits (typical) |
| Contrast Ratio | 1,100:1 |
| Orientation | Portrait and landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (G to G) |
| Screen Size | 65 inch |
| Viewing Angle | 178 x 178 degrees |
| Ethernet | RJ-45 LAN In |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Serial Port | RS-232C In/Out (4-pin phone jack) |
| Power Consumption | 110 W (typical), 160 W (maximum), 85 W (smart energy saving) |
| Color | Black bezel |
| Dimensions | 1453.3 x 844.0 x 39.9 mm (W x H x D) |
| Duty Cycle | 18 hours a day |
| Operating Humidity | 10% to 80% |
| Operating Temperature | 0 to 40 °C |
| Tilt | Face-down up to 30° (30 °C, 50% humidity) |
| VESA Mount | 300 x 300 mm |
| Weight | 28.2 kg (head only) |
| Certifications | CB / NRTL, FCC Class A, CE, KC, ErP, Energy Star 8.0 |
| IP Rating | IP5X |
