LGDigital SignageSKU 55EW5TF-A

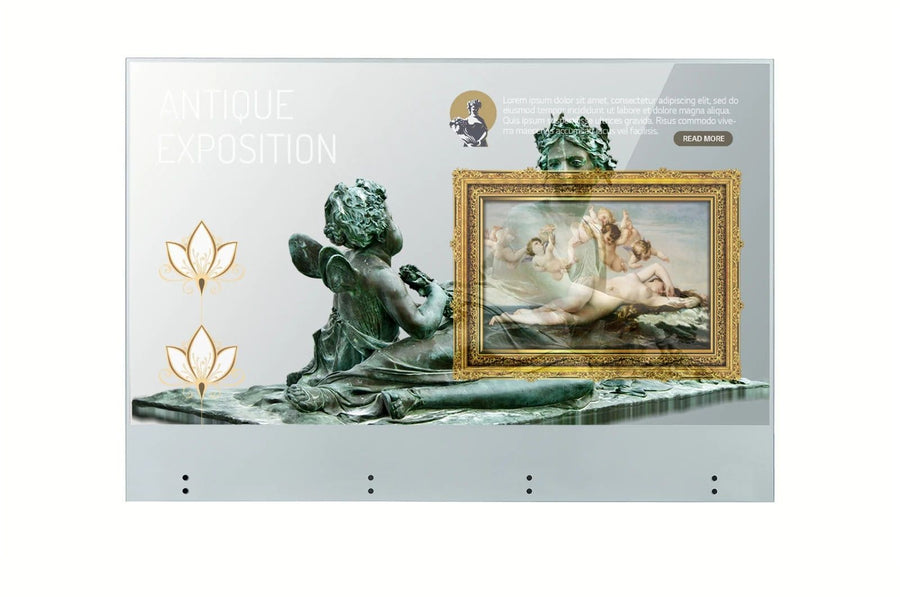

LG Transparent OLED Touch Signage 55-inch Display – 55EW5TF-A
The LG 55EW5TF-A is a 55-inch transparent OLED touch signage display with 10-point multi-touch and 33% transparency. Its 1920 x 1080 OLED panel offers a 120 Hz refresh rate and 150 nits at 100% APL without glass. Procure.ae supplies the LG 55EW5TF-A across the UAE.
The 55EW5TF-A supports up to 10 touch points at once, with 3.5 mm typical touch accuracy, connected over USB 2.0 Type B to the signage box. Its 150,000:1 contrast ratio, BT.709 120% colour gamut and 1 ms grey-to-grey response time suit moving content. The touch function is listed for Windows 7 Professional, Windows 8.1 and Windows 10. Built-in webOS 4.0 runs SuperSign CMS, SuperSign Control+ and Mobile CMS, with 16 GB of eMMC storage. Operating temperature is 0 to 40 °C.
The 55EW5TF-A suits interactive storefront glass, showroom windows and lobby displays where visitors touch the transparent panel. The model has a built-in fan, IR input for remote control and RJ45 LAN for network management with Control Manager and SNMP. The manufacturer's specifications do not list a VESA mount interface for this model. The model is also listed under the codes 55EW5TF-A.AMA, 55EW5TF-A.AMI and 55EW5TF-A.AMN.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
150 nits (400 nits at 25% APL, with...
Type
Transparent OLED Touch Signage Display
- Transparent touch panel
- 10-point touch
- Touch connection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Transparent touch panel
55-inch 1920 x 1080 OLED with 33% transparency.
02
10-point touch
Up to 10 simultaneous touch points with 3.5 mm typical accuracy.
03
Touch connection
USB 2.0 Type B link from the panel to the signage box.
04
Brightness
150 nits at 100% APL and 400 nits at 25% APL, without glass.
05
Fast response
1 ms grey-to-grey and 8 ms MPRT.
06
webOS signage platform
webOS 4.0 with SuperSign CMS, SuperSign Control+ and Mobile CMS.
07
Touch OS support
Windows 7 Professional, Windows 8.1 and Windows 10.
08
Network control
RJ45 LAN, RS232C, IR input, Control Manager, SNMP and wake-on-LAN.
Specifications
27 specificationsGeneral
Key FeaturesTransparency 33%, 10-point touch, Portrait/landscape, Screen rotation, Local scheduling, SuperSign CMS, Wake on LAN, HDMI-CEC
Model55EW5TF-A
TypeTransparent OLED Touch Signage Display
Display
Aspect Ratio16:9
Brightness150 nits (400 nits at 25% APL, without glass)
Color Depth1.07 billion colours
Color GamutBT.709 120%
Contrast Ratio150,000:1
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1920 x 1080 (Full HD)
Response Time1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Touch Accuracy3.5 mm
Touch Points10-point multi-touch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.0
Storage16 GB eMMC
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 Type A × 2, USB 2.0 Type B × 1 (touch), IR In/Out, Audio Out × 1
Power
Power Consumption0.5 W (standby)
Physical
Dimensions1225.5 x 832.9 x 7.0 mm (head)
Duty Cycle18/7 (moving content only)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight14.6 kg (head), 3.4 kg (signage box)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Transparent OLED Touch Signage 55-inch Display – 55EW5TF-A — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many touch points does the 55EW5TF-A support?
The 55EW5TF-A supports up to 10 touch points at once, with a typical accuracy of 3.5 mm. The touch connection runs over USB 2.0 Type B from the panel to the signage box, so plan the cable route when designing the installation.
Which operating systems does the touch function support?
The touch function is listed for Windows 7 Professional, Windows 8.1 and Windows 10. The display itself runs webOS 4.0 for signage content. Confirm the Windows version on your host PC before ordering, so the touch driver matches the system in use.
Can the 55EW5TF-A be used in a video wall?
No. The manufacturer's specifications list tile mode setting and daisy-chain connection as not supported for this model, so each panel needs its own source. Procure.ae can advise on an alternative layout for a multi-panel project.
How is the 55EW5TF-A mounted?
The manufacturer's specifications do not list a VESA mount interface for this model, so confirm the mounting method with Procure.ae before installation. The panel connects to the separate signage box with supplied FFC cables, 1600 mm long.
What is the brightness of the 55EW5TF-A?
The 55EW5TF-A is rated at 150 nits at 100% APL and 400 nits at 25% APL, both without glass. The manufacturer's specifications do not state a figure with glass fitted, so request a site check for a sunlit window.
Can I buy the 55EW5TF-A in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
