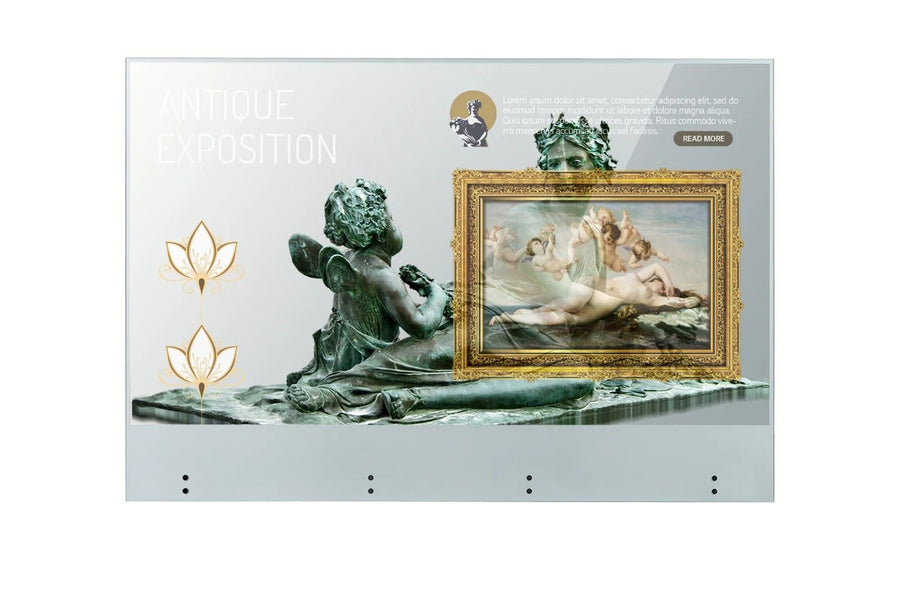

LG Transparent OLED Touch Signage 55-inch Display – 55EW5TF-A

The LG 55EW5TF-A is a 55-inch transparent OLED touch signage display with 10-point multi-touch and 33% transparency. Its 1920 x 1080 OLED panel offers a 120 Hz refresh rate and 150 nits at 100% APL without glass. Procure.ae supplies the LG 55EW5TF-A across the UAE.

The 55EW5TF-A supports up to 10 touch points at once, with 3.5 mm typical touch accuracy, connected over USB 2.0 Type B to the signage box. Its 150,000:1 contrast ratio, BT.709 120% colour gamut and 1 ms grey-to-grey response time suit moving content. The touch function is listed for Windows 7 Professional, Windows 8.1 and Windows 10. Built-in webOS 4.0 runs SuperSign CMS, SuperSign Control+ and Mobile CMS, with 16 GB of eMMC storage. Operating temperature is 0 to 40 °C.

The 55EW5TF-A suits interactive storefront glass, showroom windows and lobby displays where visitors touch the transparent panel. The model has a built-in fan, IR input for remote control and RJ45 LAN for network management with Control Manager and SNMP. The manufacturer's specifications do not list a VESA mount interface for this model. The model is also listed under the codes 55EW5TF-A.AMA, 55EW5TF-A.AMI and 55EW5TF-A.AMN.

Screen Size

55 inch

Resolution

1920 x 1080 (Full HD)

Brightness

150 nits (400 nits at 25% APL, without glass)

Type

Transparent OLED Touch Signage Display

Weight

14.6 kg (head), 3.4 kg (signage box)

Key features

Transparent touch panel

55-inch 1920 x 1080 OLED with 33% transparency.

10-point touch

Up to 10 simultaneous touch points with 3.5 mm typical accuracy.

Touch connection

USB 2.0 Type B link from the panel to the signage box.

Brightness

150 nits at 100% APL and 400 nits at 25% APL, without glass.

Fast response

1 ms grey-to-grey and 8 ms MPRT.

webOS signage platform

webOS 4.0 with SuperSign CMS, SuperSign Control+ and Mobile CMS.

Touch OS support

Windows 7 Professional, Windows 8.1 and Windows 10.

Network control

RJ45 LAN, RS232C, IR input, Control Manager, SNMP and wake-on-LAN.

Specifications

General
Key Features	Transparency 33%, 10-point touch, Portrait/landscape, Screen rotation, Local scheduling, SuperSign CMS, Wake on LAN, HDMI-CEC
Model	55EW5TF-A
Type	Transparent OLED Touch Signage Display

Display
Aspect Ratio	16:9
Brightness	150 nits (400 nits at 25% APL, without glass)
Color Depth	1.07 billion colours
Color Gamut	BT.709 120%
Contrast Ratio	150,000:1
Panel Technology	OLED
Refresh Rate	120 Hz
Resolution	1920 x 1080 (Full HD)
Response Time	1 ms (G to G), 8 ms (MPRT)
Screen Size	55 inch
Touch Accuracy	3.5 mm
Touch Points	10-point multi-touch
Viewing Angle	178° x 178°

Performance
Operating System	webOS 4.0
Storage	16 GB eMMC

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	HDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 Type A × 2, USB 2.0 Type B × 1 (touch), IR In/Out, Audio Out × 1

Power
Power Consumption	0.5 W (standby)

Physical
Dimensions	1225.5 x 832.9 x 7.0 mm (head)
Duty Cycle	18/7 (moving content only)
Operating Humidity	10% to 80% RH
Operating Temperature	0 to 40 °C
Weight	14.6 kg (head), 3.4 kg (signage box)

Compliance
Certifications	CB / NRTL, FCC Class A, CE, KC
