LGDigital SignageSKU 55EW5P-M

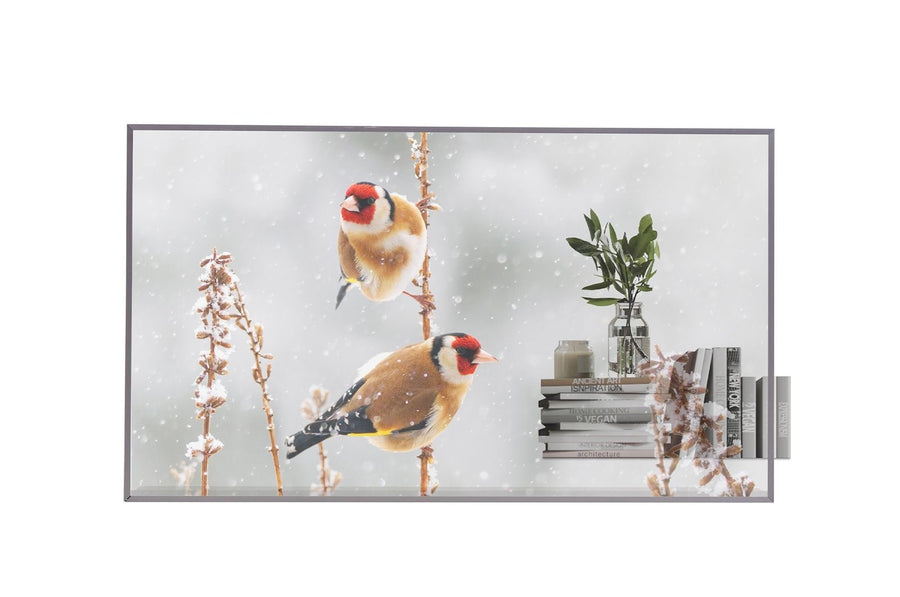

LG Transparent OLED EW5 55-inch Signage Display – 55EW5P-M
The LG 55EW5P-M is a 55-inch transparent OLED signage display for storefront windows, showrooms and lobbies. Its 1920 x 1080 OLED panel offers 43% transparency, 600 nits at 25% APL without glass, and a 120 Hz refresh rate. Procure.ae supplies the LG 55EW5P-M across the UAE.
The 55EW5P-M has a 200,000:1 contrast ratio, DCI 90% colour gamut and 10-bit colour depth. Its 0.1 ms grey-to-grey response time and 8 ms MPRT suit moving content. Built-in webOS 7.5 runs SuperSign CMS, SuperSign Control+, Connected Care and Mobile CMS, and 16 GB of eMMC storage holds local content. The panel can be set to portrait or landscape. Operating temperature is 0 to 40 °C, with 10% to 80% humidity.
The 55EW5P-M suits storefront windows, showroom displays and lobby glass where content should appear over the view behind the panel. Tile mode, HDMI and DisplayPort daisy-chaining and wake-on-LAN support multi-panel installations. Inputs include HDMI, DisplayPort and RS232C, with RJ45 LAN for network control and SNMP monitoring. The model is also listed under the code 55EW5P-M.AMA.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
200 nits (600 nits at 25% APL, with...
Type
Transparent OLED Signage Display
- Transparent OLED panel
- Bright transparent output
- Fast response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Transparent OLED panel
55-inch 1920 x 1080 OLED with 43% transparency.
02
Bright transparent output
600 nits at 25% APL and 200 nits at 100% APL, measured without glass.
03
Fast response
0.1 ms grey-to-grey and 8 ms MPRT for moving content.
04
Wide colour
DCI 90% and BT.709 110% colour gamut with 10-bit colour depth.
05
webOS signage platform
webOS 7.5 with SuperSign CMS, SuperSign Control+ and Connected Care.
06
Flexible orientation
Portrait and landscape operation with a screen rotation setting.
07
Video wall ready
Tile mode setting, HDMI and DisplayPort daisy-chaining and gapless playback.
08
Network control
RJ45 LAN, RS232C, SNMP, wake-on-LAN and HDMI-CEC.
Specifications
25 specificationsGeneral
Key FeaturesTransparency 43%, Portrait/landscape, Daisy chain, Video wall tile mode, Local scheduling, SuperSign CMS, Wake on LAN, HDMI-CEC
Model55EW5P-M
TypeTransparent OLED Signage Display
Display
Aspect Ratio16:9
Brightness200 nits (600 nits at 25% APL, without glass)
Color Depth10-bit (1.07 billion colours)
Color GamutDCI 90%, BT.709 110%
Contrast Ratio200,000:1
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1920 x 1080 (Full HD)
Response Time0.1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 7.5
Storage16 GB eMMC
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 × 2, IR In/Out, Audio Out × 1
Power
Power Consumption0.5 W (standby)
Physical
Dimensions1237.6 x 717.9 x 86.5 mm (head)
Duty Cycle18/7 (moving content only)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight14.1 kg (head), 2.6 kg (signage box)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Transparent OLED EW5 55-inch Signage Display – 55EW5P-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How bright is the LG 55EW5P-M?
The 55EW5P-M is rated at 200 nits at 100% APL and 600 nits at 25% APL, both measured without glass. The manufacturer's specifications do not state a figure with glass fitted.
Can the LG 55EW5P-M be used in a video wall?
Yes. The panel has a tile mode setting and daisy-chain connection through its HDMI and DisplayPort inputs. Gapless playback and screen rotation are also supported, so several panels can be arranged into one larger display area.
Which content management software does the 55EW5P-M support?
The display supports SuperSign CMS, SuperSign Control+, SuperSign Cloud, Mobile CMS and Connected Care. Local content scheduling, group management and fail-over are built into webOS 7.5, so several panels can be managed as one group.
Does the 55EW5P-M work in portrait orientation?
Yes. The 55EW5P-M supports both portrait and landscape orientation, and the image can be rotated with the screen rotation setting. Set the orientation in the display settings before scheduling content, so the playlist layout matches the mounted panel.
What installation requirements apply to the 55EW5P-M?
The display runs on 100–240 V AC, 50/60 Hz with built-in power and draws 0.5 W in standby. Operating temperature is 0 to 40 °C at 10% to 80% humidity. The signage box connects to the panel with supplied MCX harness cables.
Can I buy the 55EW5P-M in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
