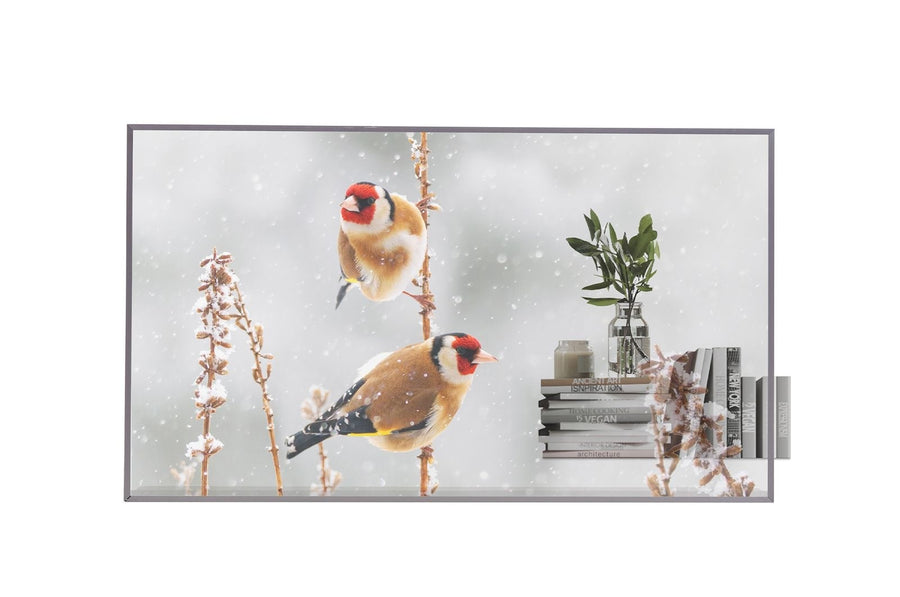

LG Transparent OLED EW5 55-inch Signage Display – 55EW5P-M

LG Transparent OLED EW5 55-inch Signage Display – 55EW5P-M

The LG 55EW5P-M is a 55-inch transparent OLED signage display for storefront windows, showrooms and lobbies. Its 1920 x 1080 OLED panel offers 43% transparency, 600 nits at 25% APL without glass, and a 120 Hz refresh rate. Procure.ae supplies the LG 55EW5P-M across the UAE.

The 55EW5P-M has a 200,000:1 contrast ratio, DCI 90% colour gamut and 10-bit colour depth. Its 0.1 ms grey-to-grey response time and 8 ms MPRT suit moving content. Built-in webOS 7.5 runs SuperSign CMS, SuperSign Control+, Connected Care and Mobile CMS, and 16 GB of eMMC storage holds local content. The panel can be set to portrait or landscape. Operating temperature is 0 to 40 °C, with 10% to 80% humidity.

The 55EW5P-M suits storefront windows, showroom displays and lobby glass where content should appear over the view behind the panel. Tile mode, HDMI and DisplayPort daisy-chaining and wake-on-LAN support multi-panel installations. Inputs include HDMI, DisplayPort and RS232C, with RJ45 LAN for network control and SNMP monitoring. The model is also listed under the code 55EW5P-M.AMA.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
200 nits (600 nits at 25% APL, without glass)
Type
Transparent OLED Signage Display
Weight
14.1 kg (head), 2.6 kg (signage box)

Key features

01
Transparent OLED panel
55-inch 1920 x 1080 OLED with 43% transparency.
02
Bright transparent output
600 nits at 25% APL and 200 nits at 100% APL, measured without glass.
03
Fast response
0.1 ms grey-to-grey and 8 ms MPRT for moving content.
04
Wide colour
DCI 90% and BT.709 110% colour gamut with 10-bit colour depth.
05
webOS signage platform
webOS 7.5 with SuperSign CMS, SuperSign Control+ and Connected Care.
06
Flexible orientation
Portrait and landscape operation with a screen rotation setting.
07
Video wall ready
Tile mode setting, HDMI and DisplayPort daisy-chaining and gapless playback.
08
Network control
RJ45 LAN, RS232C, SNMP, wake-on-LAN and HDMI-CEC.

Specifications

General
Key FeaturesTransparency 43%, Portrait/landscape, Daisy chain, Video wall tile mode, Local scheduling, SuperSign CMS, Wake on LAN, HDMI-CEC
Model55EW5P-M
TypeTransparent OLED Signage Display
Display
Aspect Ratio16:9
Brightness200 nits (600 nits at 25% APL, without glass)
Color Depth10-bit (1.07 billion colours)
Color GamutDCI 90%, BT.709 110%
Contrast Ratio200,000:1
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1920 x 1080 (Full HD)
Response Time0.1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 7.5
Storage16 GB eMMC
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DP In × 1, DP Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 × 2, IR In/Out, Audio Out × 1
Power
Power Consumption0.5 W (standby)
Physical
Dimensions1237.6 x 717.9 x 86.5 mm (head)
Duty Cycle18/7 (moving content only)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight14.1 kg (head), 2.6 kg (signage box)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
