LGDigital SignageSKU 75XF3P

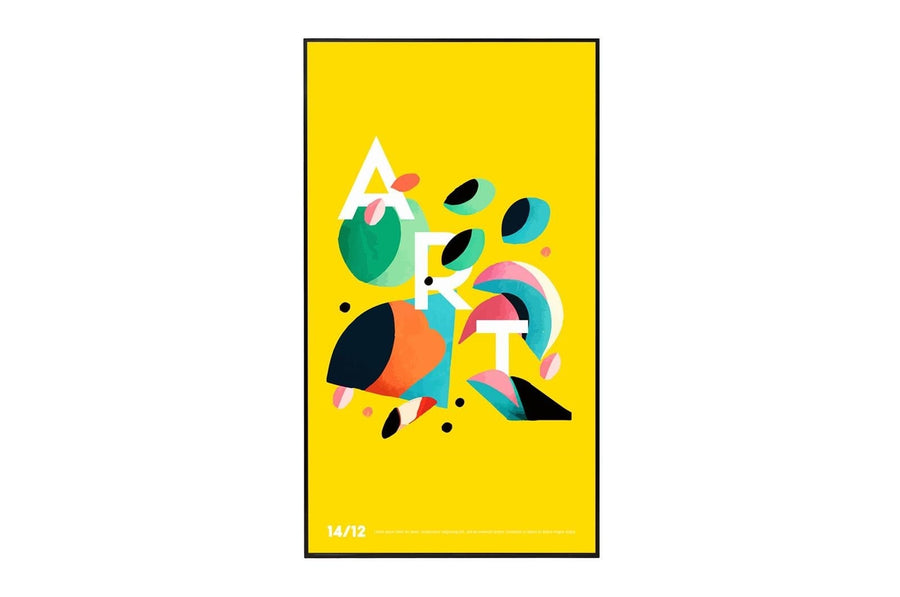

LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3P
The LG 75XF3P is a 75-inch open-frame 4K UHD digital signage display with 3,000 nits typical brightness and webOS 6.0. It supports PIP and PBP modes, Connected Care and SuperSign Control+ for networked content. Procure.ae supplies the LG 75XF3P across the UAE.
The 75XF3P uses a 3840 x 2160 UHD IPS panel with 3,000 nits typical and 2,800 nits minimum brightness. Its 1200:1 typical contrast ratio and 500,000:1 dynamic contrast are paired with 8 ms response time and 60 Hz refresh. The panel covers NTSC 72% gamut with 10-bit colour and dithering. The display lists 24-hour operation, a built-in fan and temperature, humidity and auto-brightness sensors, with an operating range of 0 to 40 °C with solar load and 0 to 50 °C without.
It fits open-frame signage in lobbies, malls and retail floors, and it suits video walls because it supports Tile Mode, Backlight Sync, Local Network Sync and Video Tag. For network management the manufacturer lists Connected Care, SuperSign CMS, SNMP, Status Mailing and webRTC. Compared with the 75XF3PS-BP, the 75XF3P lists a wider NTSC 72% colour gamut against 68%.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3000 nits (typical), 2800 nits (min...
Type
Digital Signage Display
- Open-frame 4K UHD
- Bright output
- PIP and PBP
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Open-frame 4K UHD
3840 x 2160 IPS panel on a 75-inch screen.
02
Bright output
3,000 nits typical and 2,800 nits minimum brightness.
03
PIP and PBP
Picture-in-picture and picture-by-picture modes are listed.
04
webOS 6.0 platform
Built-in platform with Connected Care and SuperSign Control+.
05
Video wall support
Tile Mode Setting, Backlight Sync and Video Tag with four tags.
06
Direct sunlight operation
Listed for direct sunlight with a solar operating range of 0 to 40 °C.
07
Network management
RJ45 LAN, SNMP, Status Mailing and Wake on LAN.
08
Playback control
Play via URL, Gapless Playback and Local Contents Scheduling.
Specifications
25 specificationsGeneral
Key FeaturesOpen-frame design, 3000 nits typical, 4K UHD IPS, PIP and PBP, webOS 6.0, Video wall tiling, Connected Care, Direct sunlight rating
Model75XF3P
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size11.8 mm (even)
Brightness3000 nits (typical), 2800 nits (minimum)
Color Depth1.07 billion colours (10-bit)
Color GamutNTSC 72%
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) x 178° (V)
Performance
Operating SystemwebOS 6.0
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In, DP Out, DVI-D In, Audio In, RS232C In/Out, RJ45 LAN In, IR In, USB 2.0 Type A, External Speaker Out
Physical
Dimensions1675.2 x 953.6 x 114.6 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (with solar load); 0 to 50 °C (without solar load)
Weight32.7 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
Downloads
Manufacturer documents for the LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 75XF3P a 4K display?
Yes. The 75XF3P has a 3840 x 2160 native UHD resolution on a 75-inch 16:9 IPS panel. It lists 1.07 billion colours at 10-bit with dithering and an NTSC 72% colour gamut, suited to 4K video and graphics content.
Does the LG 75XF3P support picture-in-picture?
Yes. The manufacturer lists PIP and PBP as supported modes, along with Video Tag with four tags for multi-zone content. Confirm the layout options and source combinations with Procure.ae before the installation is specified.
Can the LG 75XF3P be used in a video wall?
Yes. The display lists Tile Mode Setting, Backlight Sync, Local Network Sync and Screen Rotation, which are the settings used for tiled installations. Procure.ae can confirm the wall layout and control arrangement before ordering.
What are the mounting dimensions and weight of the LG 75XF3P?
The manufacturer's specifications do not state a VESA mount pattern for the 75XF3P. The monitor measures 1675.2 x 953.6 x 114.6 mm, the head weighs 32.7 kg and the packed weight is 43 kg, so plan the mounting frame and handling around these figures.
How is the LG 75XF3P managed and controlled?
It supports SuperSign CMS and SuperSign Control+, and Connected Care is listed. Control options include RS232C In/Out, RJ45 LAN and IR input, with Wake on LAN and Status Mailing for remote management and alerts.
