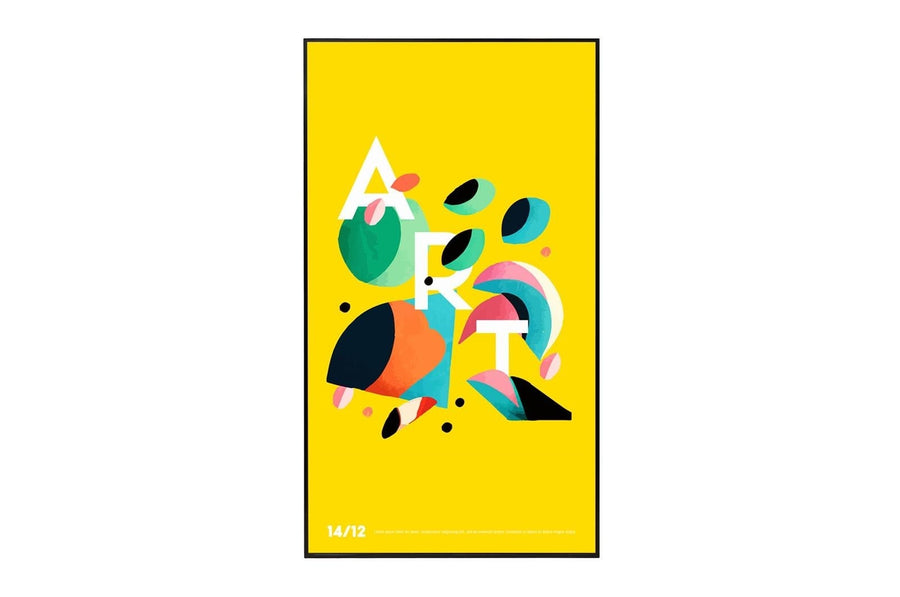

LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3P

LG Open Frame 75-inch 4K UHD Digital Signage Display – 75XF3P

The LG 75XF3P is a 75-inch open-frame 4K UHD digital signage display with 3,000 nits typical brightness and webOS 6.0. It supports PIP and PBP modes, Connected Care and SuperSign Control+ for networked content. Procure.ae supplies the LG 75XF3P across the UAE.

The 75XF3P uses a 3840 x 2160 UHD IPS panel with 3,000 nits typical and 2,800 nits minimum brightness. Its 1200:1 typical contrast ratio and 500,000:1 dynamic contrast are paired with 8 ms response time and 60 Hz refresh. The panel covers NTSC 72% gamut with 10-bit colour and dithering. The display lists 24-hour operation, a built-in fan and temperature, humidity and auto-brightness sensors, with an operating range of 0 to 40 °C with solar load and 0 to 50 °C without.

It fits open-frame signage in lobbies, malls and retail floors, and it suits video walls because it supports Tile Mode, Backlight Sync, Local Network Sync and Video Tag. For network management the manufacturer lists Connected Care, SuperSign CMS, SNMP, Status Mailing and webRTC. Compared with the 75XF3PS-BP, the 75XF3P lists a wider NTSC 72% colour gamut against 68%.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
3000 nits (typical), 2800 nits (minimum)
Type
Digital Signage Display
Weight
32.7 kg

Key features

01
Open-frame 4K UHD
3840 x 2160 IPS panel on a 75-inch screen.
02
Bright output
3,000 nits typical and 2,800 nits minimum brightness.
03
PIP and PBP
Picture-in-picture and picture-by-picture modes are listed.
04
webOS 6.0 platform
Built-in platform with Connected Care and SuperSign Control+.
05
Video wall support
Tile Mode Setting, Backlight Sync and Video Tag with four tags.
06
Direct sunlight operation
Listed for direct sunlight with a solar operating range of 0 to 40 °C.
07
Network management
RJ45 LAN, SNMP, Status Mailing and Wake on LAN.
08
Playback control
Play via URL, Gapless Playback and Local Contents Scheduling.

Specifications

General
Key FeaturesOpen-frame design, 3000 nits typical, 4K UHD IPS, PIP and PBP, webOS 6.0, Video wall tiling, Connected Care, Direct sunlight rating
Model75XF3P
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size11.8 mm (even)
Brightness3000 nits (typical), 2800 nits (minimum)
Color Depth1.07 billion colours (10-bit)
Color GamutNTSC 72%
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) x 178° (V)
Performance
Operating SystemwebOS 6.0
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In, DP Out, DVI-D In, Audio In, RS232C In/Out, RJ45 LAN In, IR In, USB 2.0 Type A, External Speaker Out
Physical
Dimensions1675.2 x 953.6 x 114.6 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (with solar load); 0 to 50 °C (without solar load)
Weight32.7 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, VCCI
