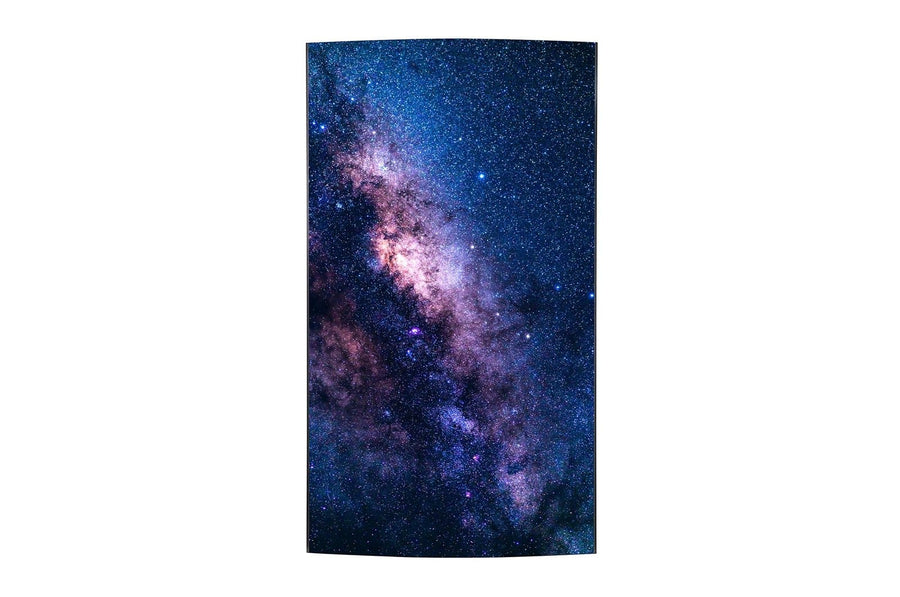

LG OLED EF5 Flexible Curved 55-inch Digital Signage Display – 55EF5K-P
The LG 55EF5K-P is a 55-inch flexible curved OLED digital signage display for commercial signage installations. It offers 1920 x 1080 resolution, a 120 Hz refresh rate and 150,000:1 contrast, with RS232C, RJ45 LAN and daisy-chain video connections. Procure.ae supplies this LG model in the UAE.
The 55EF5K-P uses a flexible curved OLED panel with 1920 x 1080 Full HD resolution, a 120 Hz refresh rate and a 1 ms (G to G) response time. Brightness is rated at 150 nits at 100% APL and 400 nits at 25% APL, with 150,000:1 contrast and 120% BT.709 colour gamut. The panel shows 1.07 billion colours across a 178-degree horizontal and vertical viewing angle. The built-in webOS 4.0 platform adds local content scheduling, four video tags and gapless playback.
The panel is rated for portrait orientation only, so it suits vertical signage and tiled layouts that use Tile Mode Setting and Group Manager. The head connects to a separate signage box with FFC cables. Control runs over RS232C, RJ45 LAN, IR and SNMP, with Crestron Connected support for integration with existing control systems. HDMI-CEC and Wake on LAN support power management.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
150 nits (APL 100%), 400 nits (APL ...
Type
Digital Signage Display
- Flexible curved OLED
- Full HD resolution
- Daisy-chain connections
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Flexible curved OLED
a flexible curved OLED panel in a 55-inch open frame design.
02
Full HD resolution
1920 x 1080 native resolution with a 120 Hz refresh rate.
03
Daisy-chain connections
HDMI and DisplayPort inputs with a DisplayPort output for chaining displays.
04
Remote control
RS232C, RJ45 LAN, IR and SNMP control, with Crestron Connected support.
05
Content scheduling
Local content scheduling, four video tags and gapless playback on webOS 4.0.
06
Tile and group layouts
Tile Mode Setting and Group Manager support multi-screen layouts.
07
Power management
PM mode, Wake on LAN and HDMI-CEC for power control.
08
Wide viewing angle
178-degree horizontal and vertical viewing angle on a 150,000:1 contrast panel.
Specifications
27 specificationsGeneral
Key FeaturesFlexible curved OLED panel, Daisy chain, Tile mode setting, Local content scheduling, Crestron Connected, Wake on LAN, HDMI-CEC, Video tag
Model55EF5K-P
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, DP cable (2 m), LAN cable (1.5 m), RS232 cable (1.5 m)
Display
Aspect Ratio16:9
Brightness150 nits (APL 100%), 400 nits (APL 25%)
Color Depth1.07 billion colors
Color GamutBT.709 120%
Contrast Ratio150,000:1
OrientationPortrait only
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1920 x 1080 (Full HD)
Response Time1 ms (G to G)
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.0
Storage16 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, DisplayPort In × 1, DisplayPort Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 × 2, Audio Out × 1
Power
Power Consumption0.5 W (power off)
Physical
ColorBlack
Dimensions701.4 x 1219.7 x 38.0 mm (head, portrait)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Weight7.0 kg (head)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ERP
Downloads
Manufacturer documents for the LG OLED EF5 Flexible Curved 55-inch Digital Signage Display – 55EF5K-P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 55EF5K-P?
The LG 55EF5K-P has a 55-inch flexible curved OLED panel with a 1920 x 1080 Full HD native resolution, a 16:9 aspect ratio and a 120 Hz refresh rate. Its brightness is rated at 150 nits at 100% APL and 400 nits at 25% APL.
Can the 55EF5K-P be used in a video wall?
Yes. It includes Tile Mode Setting, Daisy Chain input and output, and Group Manager, which support multi-screen layouts. The manufacturer lists side bezels of 6.7 mm in portrait orientation. The display has a 120 Hz refresh rate and a 1 ms (G to G) response time, and the manufacturer lists up to 18 hours of operation a day on moving content.
Which orientation and mounting does the 55EF5K-P support?
It is rated for portrait orientation only. The manufacturer's specifications do not state a VESA standard mount interface for this model, and the monitor measures 701.4 x 1219.7 x 38.0 mm in portrait. Procure.ae can advise on mounting for your installation.
Does the 55EF5K-P work with third-party control systems?
Yes. The display supports RS232C, RJ45 LAN, IR and SNMP control, and the manufacturer lists Crestron Connected support. HDMI-CEC and Wake on LAN also help it integrate with existing AV and management systems.
What are the operating temperature and humidity limits?
The 55EF5K-P operates from 0 to 40 °C at 10% to 80% relative humidity. It runs on 100–240 V AC, 50/60 Hz, and draws 0.5 W when powered off. It also carries CB, NRTL, FCC Class A, CE, KC and ERP certifications, as listed by the manufacturer.
Can I buy the 55EF5K-P in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
