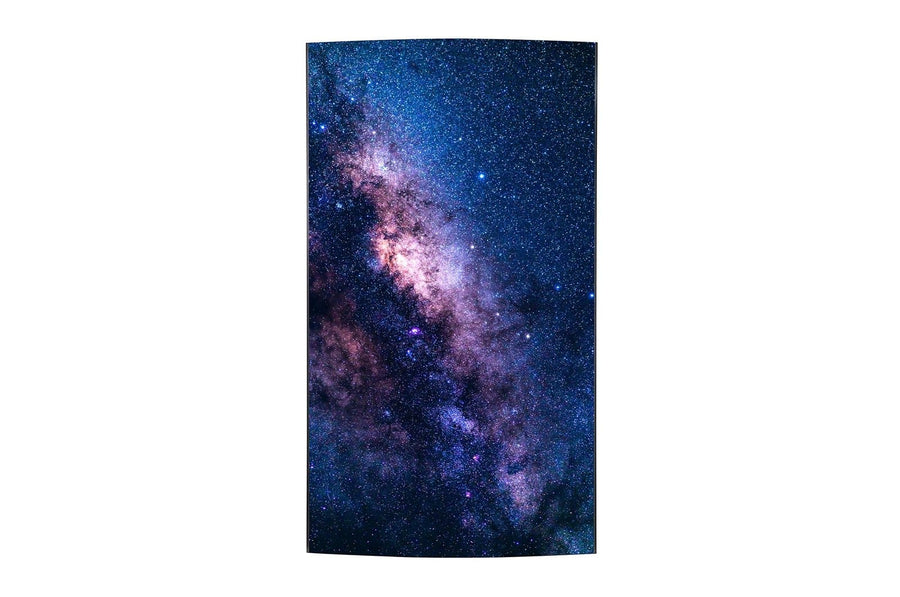

LG OLED EF5 Flexible Curved 55-inch Digital Signage Display – 55EF5K-P

The LG 55EF5K-P is a 55-inch flexible curved OLED digital signage display for commercial signage installations. It offers 1920 x 1080 resolution, a 120 Hz refresh rate and 150,000:1 contrast, with RS232C, RJ45 LAN and daisy-chain video connections. Procure.ae supplies this LG model in the UAE.

The 55EF5K-P uses a flexible curved OLED panel with 1920 x 1080 Full HD resolution, a 120 Hz refresh rate and a 1 ms (G to G) response time. Brightness is rated at 150 nits at 100% APL and 400 nits at 25% APL, with 150,000:1 contrast and 120% BT.709 colour gamut. The panel shows 1.07 billion colours across a 178-degree horizontal and vertical viewing angle. The built-in webOS 4.0 platform adds local content scheduling, four video tags and gapless playback.

The panel is rated for portrait orientation only, so it suits vertical signage and tiled layouts that use Tile Mode Setting and Group Manager. The head connects to a separate signage box with FFC cables. Control runs over RS232C, RJ45 LAN, IR and SNMP, with Crestron Connected support for integration with existing control systems. HDMI-CEC and Wake on LAN support power management.

Screen Size

55 inch

Resolution

1920 x 1080 (Full HD)

Brightness

150 nits (APL 100%), 400 nits (APL 25%)

Type

Digital Signage Display

Weight

7.0 kg (head)

Key features

Flexible curved OLED

a flexible curved OLED panel in a 55-inch open frame design.

Full HD resolution

1920 x 1080 native resolution with a 120 Hz refresh rate.

Daisy-chain connections

HDMI and DisplayPort inputs with a DisplayPort output for chaining displays.

Remote control

RS232C, RJ45 LAN, IR and SNMP control, with Crestron Connected support.

Content scheduling

Local content scheduling, four video tags and gapless playback on webOS 4.0.

Tile and group layouts

Tile Mode Setting and Group Manager support multi-screen layouts.

Power management

PM mode, Wake on LAN and HDMI-CEC for power control.

Wide viewing angle

178-degree horizontal and vertical viewing angle on a 150,000:1 contrast panel.

Specifications

General
Key Features	Flexible curved OLED panel, Daisy chain, Tile mode setting, Local content scheduling, Crestron Connected, Wake on LAN, HDMI-CEC, Video tag
Model	55EF5K-P
Type	Digital Signage Display
What's in the Box	Remote controller, power cord, quick start guide, DP cable (2 m), LAN cable (1.5 m), RS232 cable (1.5 m)

Display
Aspect Ratio	16:9
Brightness	150 nits (APL 100%), 400 nits (APL 25%)
Color Depth	1.07 billion colors
Color Gamut	BT.709 120%
Contrast Ratio	150,000:1
Orientation	Portrait only
Panel Technology	OLED
Refresh Rate	120 Hz
Resolution	1920 x 1080 (Full HD)
Response Time	1 ms (G to G)
Screen Size	55 inch
Viewing Angle	178° x 178°

Performance
Operating System	webOS 4.0
Storage	16 GB

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	HDMI In × 1, DisplayPort In × 1, DisplayPort Out × 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 × 2, Audio Out × 1

Power
Power Consumption	0.5 W (power off)

Physical
Color	Black
Dimensions	701.4 x 1219.7 x 38.0 mm (head, portrait)
Operating Humidity	10% to 80% RH
Operating Temperature	0 to 40 °C
Weight	7.0 kg (head)

Compliance
Certifications	CB / NRTL, FCC Class A, CE, KC, ERP
