LGDigital SignageSKU 65UH5F-H

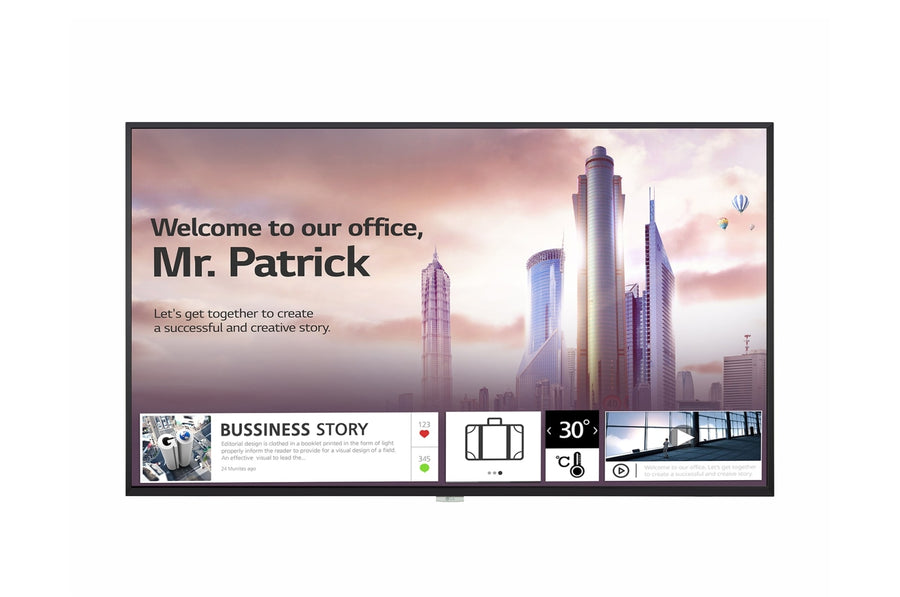

LG High Haze UHD 65-inch Digital Signage Display – 65UH5F-H
The LG 65UH5F-H is a 65-inch UHD digital signage display with an IPS panel, 500 nits typical brightness and a 28% haze surface for bright indoor spaces. It suits 24/7 lobby, retail and corporate information screens, and runs webOS 4.1 with built-in Wi-Fi. Procure.ae supplies the LG 65UH5F-H across the UAE.
The panel delivers 3840 x 2160 UHD resolution at 60 Hz, 500 nits typical brightness and a 1,100:1 contrast ratio, with 10-bit colour depth and 95% BT709 colour gamut. The 28% haze surface treatment is designed for bright rooms with reflective surfaces. The display supports portrait and landscape orientation, a 178 x 178 degree viewing angle and an 8 ms response time. It has 8 GB of internal storage for signage playback.
The 65UH5F-H runs webOS 4.1 with built-in Wi-Fi, webRTC and Pro:Idiom support. Local content scheduling, group management and PIP or PBP multi-screen modes are built in, and the Tile Mode setting supports video walls up to 15 x 15 displays. SuperSign CMS, Crestron connectivity and SNMP allow remote management. Mount it on the 300 x 300 mm VESA interface, and check the ambient temperature when setting the face-down tilt.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- High Haze surface
- UHD IPS panel
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High Haze surface
A 28% haze treatment is designed for bright, reflective rooms.
02
UHD IPS panel
3840 x 2160 resolution at 60 Hz with 10-bit colour depth.
03
Brightness and contrast
500 nits typical brightness with a 1,100:1 contrast ratio.
04
webOS 4.1 platform
Built-in Wi-Fi, webRTC and Pro:Idiom support.
05
Content scheduling
Local scheduling, group manager and video tags for up to 4 video sources.
06
Video wall ready
Tile Mode supports up to 15 x 15 displays, with PBP for up to 4 screens.
07
Remote management
SNMP, Crestron connectivity, RS-232C control and Wake on LAN.
08
Built-in sensors
Auto brightness, temperature and gyro sensors for unattended operation.
Specifications
31 specificationsGeneral
Key FeatureswebOS 4.1, built-in Wi-Fi, auto brightness sensor, PBP up to 4 screens, tile mode up to 15 x 15, SNMP, Crestron connectivity, Smart Energy Saving
Model65UH5F-H
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick setup guide, HDMI cable, regulation book, phone to RS-232C gender adapter
Display
Aspect Ratio16:9
Bezel Size9.9 mm sides and top, 14.4 mm bottom
Brightness500 nits
Color Depth10-bit, 1.07 billion colors
Color GamutBT709 95%
Contrast Ratio1,100:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size65 inch
Viewing Angle178 x 178 degrees
Performance
Operating SystemwebOS 4.1
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, DVI-D In × 1, RS-232C In/Out, RJ-45 LAN, USB 2.0 × 1
Wi-FiBuilt-in
Power
Power Consumption96 W (smart energy saving)
Physical
Dimensions1453.3 x 844.0 x 39.9 mm (W x H x D)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltFace-down up to 30°
VESA Mount300 x 300 mm
Weight28.2 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP, Energy Star 8.0
IP RatingIP5X
Downloads
Manufacturer documents for the LG High Haze UHD 65-inch Digital Signage Display – 65UH5F-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the LG 65UH5F-H?
The LG 65UH5F-H has a 65-inch IPS screen with a native resolution of 3840 x 2160 (4K UHD) at 60 Hz. It uses a 16:9 aspect ratio and supports both portrait and landscape orientation, so it can be mounted either way for signage content.
Can the 65UH5F-H run 24/7 in a busy lobby or retail space?
Yes. The manufacturer rates the LG 65UH5F-H for 24/7 operation, with an operating temperature of 0 to 40 °C and humidity of 10% to 80% RH. It carries an IP5X dust-protection rating and includes a 500-nit typical brightness panel for well-lit rooms.
How is the LG 65UH5F-H mounted?
The display uses a 300 x 300 mm VESA interface, so a compatible wall or stand bracket fits it. The monitor measures 1453.3 x 844.0 x 39.9 mm without a stand, and the manufacturer lists a face-down tilt of up to 30 degrees under stated temperature and humidity conditions. Confirm the bracket with Procure.ae before ordering.
Does the 65UH5F-H work with SuperSign and third-party control systems?
Yes. The display supports SuperSign CMS, SuperSign Control and Control+, and SuperSign Media Editor. It also supports Crestron network-based control, SNMP, RS-232C and RJ-45 LAN, so it can connect to building management and third-party control systems.
Can the 65UH5F-H be used in a video wall?
Yes. Tile Mode supports video walls up to 15 x 15 displays, and Gapless Playback is listed for seamless content. The bezel measures 9.9 mm on the sides and top and 14.4 mm on the bottom, which affects the overall wall layout and frame design.
