LG High Haze UHD 65-inch Digital Signage Display – 65UH5F-H — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
LG · 65UH5F-H · Digital Signage

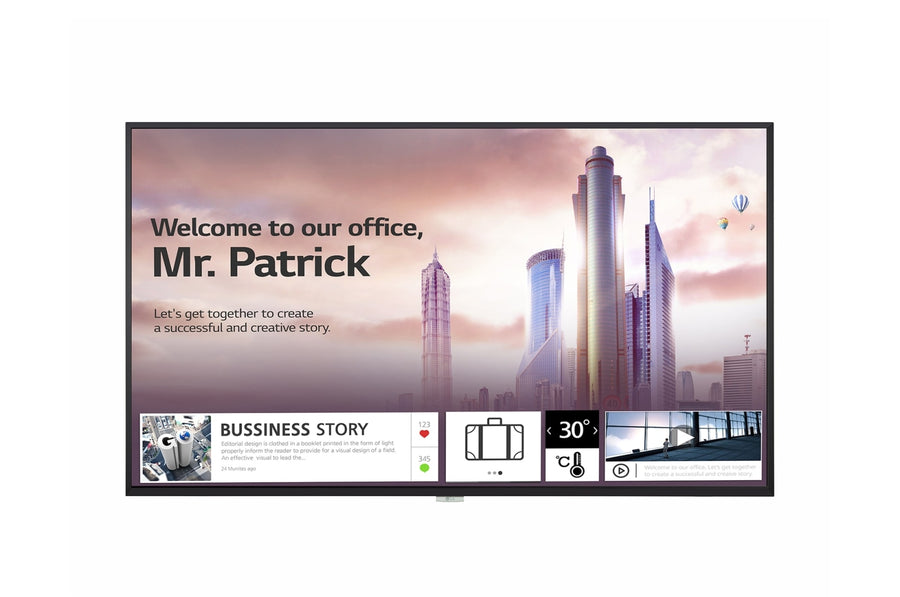

LG High Haze UHD 65-inch Digital Signage Display – 65UH5F-H

LG High Haze UHD 65-inch Digital Signage Display – 65UH5F-H

The LG 65UH5F-H is a 65-inch UHD digital signage display with an IPS panel, 500 nits typical brightness and a 28% haze surface for bright indoor spaces. It suits 24/7 lobby, retail and corporate information screens, and runs webOS 4.1 with built-in Wi-Fi. Procure.ae supplies the LG 65UH5F-H across the UAE.

The panel delivers 3840 x 2160 UHD resolution at 60 Hz, 500 nits typical brightness and a 1,100:1 contrast ratio, with 10-bit colour depth and 95% BT709 colour gamut. The 28% haze surface treatment is designed for bright rooms with reflective surfaces. The display supports portrait and landscape orientation, a 178 x 178 degree viewing angle and an 8 ms response time. It has 8 GB of internal storage for signage playback.

The 65UH5F-H runs webOS 4.1 with built-in Wi-Fi, webRTC and Pro:Idiom support. Local content scheduling, group management and PIP or PBP multi-screen modes are built in, and the Tile Mode setting supports video walls up to 15 x 15 displays. SuperSign CMS, Crestron connectivity and SNMP allow remote management. Mount it on the 300 x 300 mm VESA interface, and check the ambient temperature when setting the face-down tilt.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
Weight
28.2 kg (head only)

Key features

01
High Haze surface
A 28% haze treatment is designed for bright, reflective rooms.
02
UHD IPS panel
3840 x 2160 resolution at 60 Hz with 10-bit colour depth.
03
Brightness and contrast
500 nits typical brightness with a 1,100:1 contrast ratio.
04
webOS 4.1 platform
Built-in Wi-Fi, webRTC and Pro:Idiom support.
05
Content scheduling
Local scheduling, group manager and video tags for up to 4 video sources.
06
Video wall ready
Tile Mode supports up to 15 x 15 displays, with PBP for up to 4 screens.
07
Remote management
SNMP, Crestron connectivity, RS-232C control and Wake on LAN.
08
Built-in sensors
Auto brightness, temperature and gyro sensors for unattended operation.

Specifications

General
Key FeatureswebOS 4.1, built-in Wi-Fi, auto brightness sensor, PBP up to 4 screens, tile mode up to 15 x 15, SNMP, Crestron connectivity, Smart Energy Saving
Model65UH5F-H
TypeDigital Signage Display
What's in the BoxRemote controller with 2 batteries, power cord, quick setup guide, HDMI cable, regulation book, phone to RS-232C gender adapter
Display
Aspect Ratio16:9
Bezel Size9.9 mm sides and top, 14.4 mm bottom
Brightness500 nits
Color Depth10-bit, 1.07 billion colors
Color GamutBT709 95%
Contrast Ratio1,100:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size65 inch
Viewing Angle178 x 178 degrees
Performance
Operating SystemwebOS 4.1
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, DVI-D In × 1, RS-232C In/Out, RJ-45 LAN, USB 2.0 × 1
Wi-FiBuilt-in
Power
Power Consumption96 W (smart energy saving)
Physical
Dimensions1453.3 x 844.0 x 39.9 mm (W x H x D)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltFace-down up to 30°
VESA Mount300 x 300 mm
Weight28.2 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP, Energy Star 8.0
IP RatingIP5X
