LGDigital SignageSKU 55XF3E

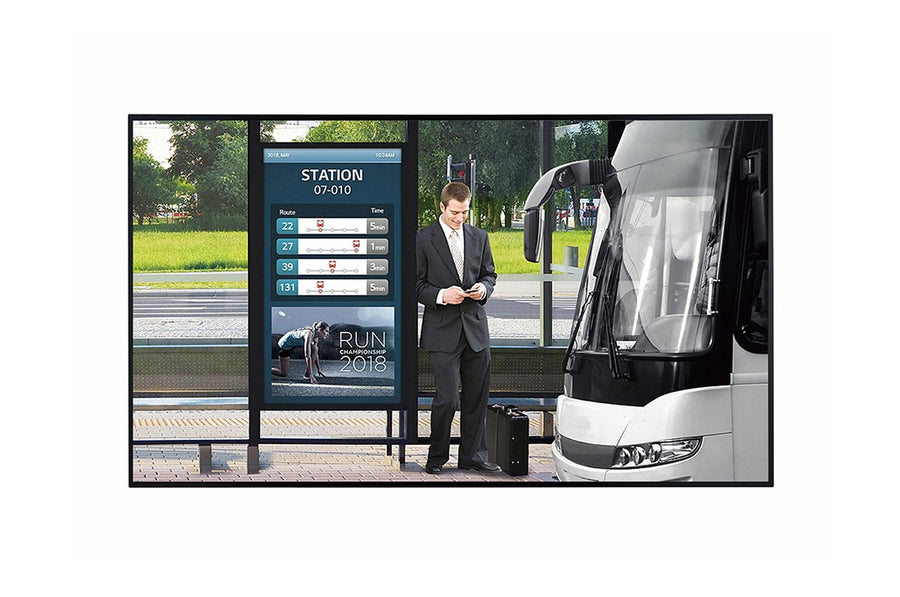

LG High-Brightness Open-Frame 55-inch Digital Signage Display – 55XF3E
The LG 55XF3E is a 55-inch open-frame digital signage display with 3,000 nits typical brightness and direct sunlight support. Its 1920 x 1080 IPS panel and 600 x 400 mm VESA interface suit bright indoor and window-side sites. Procure.ae supplies the LG 55XF3E across the UAE.
The 55XF3E is rated at 3,000 nits typical and 2,400 nits minimum brightness, with 1,300:1 contrast and 500,000:1 dynamic contrast. Its 1920 x 1080 IPS panel runs 24/7 at 60 Hz with 8 ms grey-to-grey response and 178° viewing angles. The display has an auto brightness sensor, a humidity sensor and a built-in fan. It operates at 0 to 50 °C without direct sunlight and 0 to 40 °C in direct sunlight, and runs webOS 3.0 with SuperSign CMS and SuperSign Control+.
The 55XF3E suits open-frame installations where the panel is fitted into a custom enclosure or bracket. Its VESA interface is 600 x 400 mm, and monitor dimensions are 1235.5 x 709.4 x 106.8 mm. Inputs include two HDMI, DVI-D, DisplayPort in and out, audio in, external speaker out, RS232C, RJ45 LAN and IR input. Tile mode setting and backlight sync are listed for multi-panel use. The model is also listed under the codes 55XF3E-B.AMA and 55XF3E-B.AMN.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
3,000 nits (typical), 2,400 nits (m...
Type
Open-Frame Signage Display
- Direct sunlight support
- High brightness
- Full HD IPS panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Direct sunlight support
Listed for direct sunlight, with 40 °C operation in direct sunlight.
02
High brightness
3,000 nits typical and 2,400 nits minimum.
03
Full HD IPS panel
1920 x 1080 with 178° viewing angles.
04
Environmental sensors
Auto brightness and humidity sensors with a built-in fan.
05
Multiple inputs
Two HDMI, DVI-D, DisplayPort in and out, and audio in.
06
Tile mode
Tile mode setting and backlight sync for multi-panel arrays.
07
Signage software
SuperSign CMS and SuperSign Control+ listed.
08
VESA mounting
600 x 400 mm interface.
Specifications
26 specificationsGeneral
Key FeaturesDirect sunlight rated, Auto brightness sensor, Humidity sensor, Portrait/landscape, Tile mode, SuperSign CMS, Backlight sync, Beacon
Model55XF3E
TypeOpen-Frame Signage Display
Display
Aspect Ratio16:9
Bezel Size12 mm (top), 9.9 mm (sides), 12 mm (bottom)
Brightness3,000 nits (typical), 2,400 nits (minimum)
Color Depth16.7 million colours
Color GamutNTSC 67%
Contrast Ratio1,300:1 (dynamic 500,000:1)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms (G to G)
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 3.0
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, DP Out × 1, DVI-D In × 1, Audio In × 1, External Speaker Out × 1, RS232C In/Out, RJ45 LAN In, IR In, USB 2.0 Type A × 1
Power
Power Consumption0.5 W (standby)
Physical
Dimensions1235.5 x 709.4 x 106.8 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 50 °C (40 °C in direct sunlight)
VESA Mount600 x 400 mm
Weight26.5 kg (head)
Compliance
CertificationsIEC 60950-1, EN 60950-1, UL 60950-1, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG High-Brightness Open-Frame 55-inch Digital Signage Display – 55XF3E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the 55XF3E be used in direct sunlight?
Yes. The manufacturer's specifications list direct sunlight support for the 55XF3E, with operation at 0 to 40 °C in direct sunlight and 0 to 50 °C without it. Confirm the mounting position and airflow with Procure.ae before installation.
How bright is the 55XF3E?
The 55XF3E is rated at 3,000 nits typical brightness and 2,400 nits minimum. Its contrast ratio is 1,300:1, with 500,000:1 dynamic contrast listed. Procure.ae can confirm the brightness setting that suits your site.
Does the 55XF3E have a VESA mount?
Yes. The 55XF3E has a 600 x 400 mm VESA mounting interface. Monitor dimensions are 1235.5 x 709.4 x 106.8 mm, and the head weighs 26.5 kg, so confirm the bracket's load rating before installation.
Can the 55XF3E be used in a video wall?
Yes. Tile mode setting is listed for the 55XF3E, and backlight sync is supported, so panels can be arranged into a larger array. Procure.ae can confirm the layout and control requirements for your project.
Which software and inputs does the 55XF3E use?
The 55XF3E supports SuperSign CMS and SuperSign Control+. Its inputs include two HDMI, DisplayPort, DVI-D and audio in, and it is controlled through RS232C, RJ45 LAN or IR input. Procure.ae can confirm which software and network setup suits your site.
Can I buy the 55XF3E in the UAE?
