LGDigital SignageSKU 86UM3DG-H

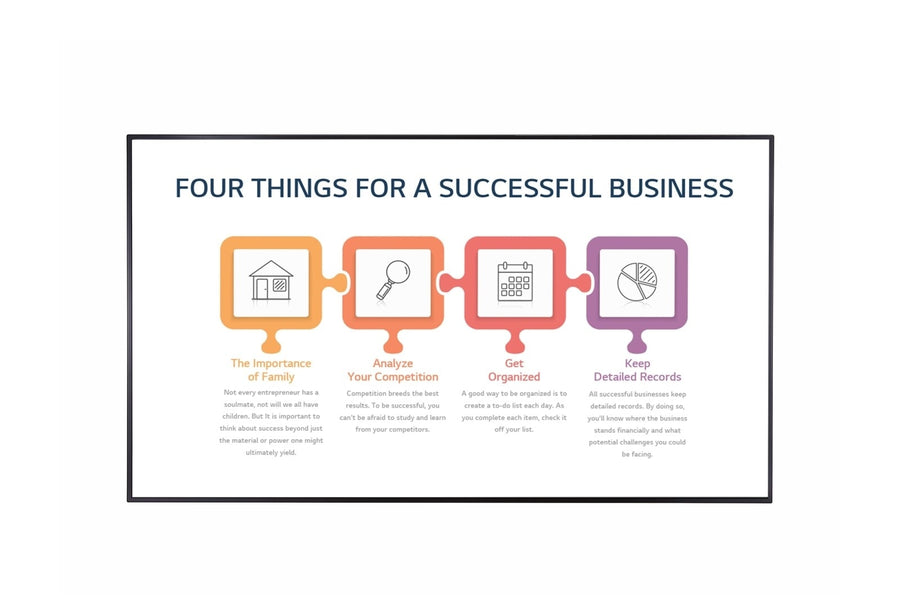

LG 86-inch UHD Digital Signage Display – 86UM3DG-H
The LG 86UM3DG-H is an 86-inch UHD large-screen digital signage display with an IPS panel, 350 nits typical brightness and 24/7 operation. It suits lobbies, showrooms and public information areas in portrait or landscape. The model is discontinued, and Procure.ae can confirm current availability in the UAE.
The 86UM3DG-H (also listed as 86UM3DG-H.AMAD) uses an IPS panel with 3840 x 2160 (UHD) resolution and 350 nits typical brightness. Contrast is listed at 1,100:1 with 1,000,000:1 dynamic contrast, and the 178 x 178 viewing angles keep images readable from the side. Color gamut is BT.709 95% with 10-bit, 1.07 billion colors, an 8 ms grey-to-grey response time and a 28% surface haze treatment. The manufacturer lists 24/7 operation hours.
The display is supplied with SuperSign CMS, SuperSign Control and Control+, SuperSign WB and SuperSign Media Editor for content management and device control, and LG ConnectedCare is listed in its feature set. Its 600 x 400 mm VESA interface and 14.3 mm even bezel suit wall installation, and it operates from 0 to 40 °C and 10% to 80% humidity. The specifications do not list a tile mode for video wall layouts.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
- IPS panel
- Wide viewing angle
- Wide color gamut
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
IPS panel
3840 x 2160 IPS panel with 350 nits typical brightness.
02
Wide viewing angle
178 x 178 viewing angles for readable content from the side.
03
Wide color gamut
BT.709 95% color gamut with 1.07 billion colors at 10-bit.
04
SuperSign content management
SuperSign CMS, Control, Control+ and Media Editor software.
05
LG ConnectedCare
Listed among the model feature set for management support.
06
Portrait and landscape
Supports portrait and landscape orientation.
07
Surface treatment
28% surface haze to diffuse reflections.
08
Built-in speaker
Built-in speaker listed in the specifications.
Specifications
25 specificationsGeneral
Key FeaturesIPS panel, 350 nits, 1,100:1 contrast, portrait and landscape, SuperSign CMS, SuperSign Control+, LG ConnectedCare
Model86UM3DG-H
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, regulation book, phone to RS232C gender
Display
Bezel Size14.3 mm (even)
Brightness350 nits
Color Depth10-bit, 1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait / Landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Audio
Speaker OutputBuilt-in speaker
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
Power
Power SourceBuilt-in power supply
Physical
Dimensions1926.2 x 1097.2 x 60.6 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.0 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 86UM3DG-H suitable for 24/7 operation?
Yes. The manufacturer lists 24/7 operation hours for the 86UM3DG-H, so it suits continuous public display use. The specifications list a 0 to 40 °C operating temperature, which should be checked against the installation site.
Can the LG 86UM3DG-H be wall-mounted?
Yes. The display has a 600 x 400 mm VESA mount interface. Its head weight is 49.0 kg, so use a wall or floor bracket rated for that load and have it installed by a qualified installer.
Does it support portrait orientation?
Yes. The manufacturer lists portrait and landscape orientation for the 86UM3DG-H. Portrait suits menu boards and vertical information displays, while landscape suits wide lobby walls and presentation use. Confirm the orientation the content needs before ordering.
Which management software does it work with?
The specifications list SuperSign CMS, SuperSign Control and Control+, SuperSign WB and SuperSign Media Editor for content and device management. A phone-to-RS232C gender adapter is included in the box for serial connection.
Can several 86UM3DG-H units form a video wall?
The manufacturer specifications do not state a tile mode or video wall feature for the 86UM3DG-H. The 14.3 mm even bezel is listed, so confirm multi-screen layout options with Procure.ae before planning a wall.
Can I buy the 86UM3DG-H in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
