LG 86-inch UHD Digital Signage Display – 86UM3DG-H — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
LG · 86UM3DG-H · Digital Signage

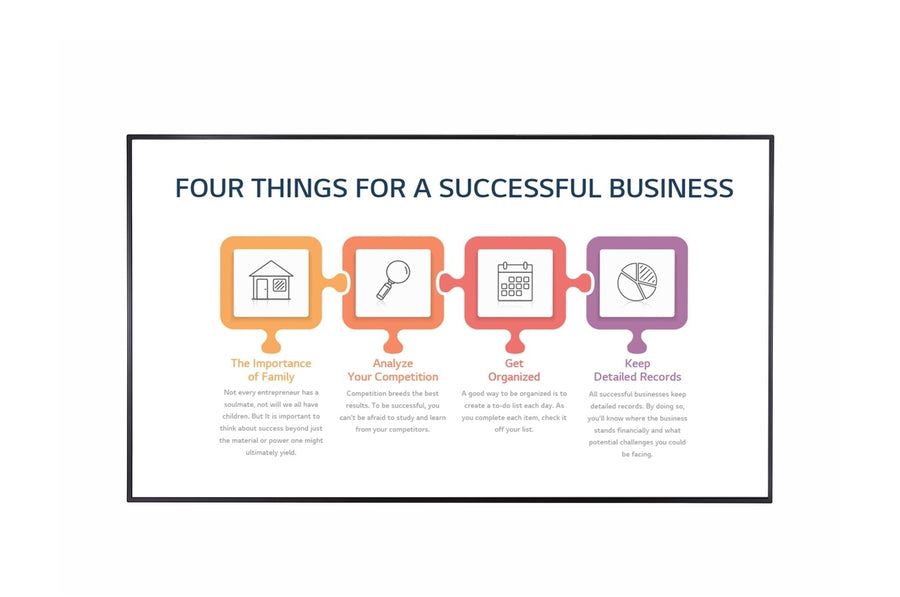

LG 86-inch UHD Digital Signage Display – 86UM3DG-H

LG 86-inch UHD Digital Signage Display – 86UM3DG-H

The LG 86UM3DG-H is an 86-inch UHD large-screen digital signage display with an IPS panel, 350 nits typical brightness and 24/7 operation. It suits lobbies, showrooms and public information areas in portrait or landscape. The model is discontinued, and Procure.ae can confirm current availability in the UAE.

The 86UM3DG-H (also listed as 86UM3DG-H.AMAD) uses an IPS panel with 3840 x 2160 (UHD) resolution and 350 nits typical brightness. Contrast is listed at 1,100:1 with 1,000,000:1 dynamic contrast, and the 178 x 178 viewing angles keep images readable from the side. Color gamut is BT.709 95% with 10-bit, 1.07 billion colors, an 8 ms grey-to-grey response time and a 28% surface haze treatment. The manufacturer lists 24/7 operation hours.

The display is supplied with SuperSign CMS, SuperSign Control and Control+, SuperSign WB and SuperSign Media Editor for content management and device control, and LG ConnectedCare is listed in its feature set. Its 600 x 400 mm VESA interface and 14.3 mm even bezel suit wall installation, and it operates from 0 to 40 °C and 10% to 80% humidity. The specifications do not list a tile mode for video wall layouts.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
Weight
49.0 kg

Key features

01
IPS panel
3840 x 2160 IPS panel with 350 nits typical brightness.
02
Wide viewing angle
178 x 178 viewing angles for readable content from the side.
03
Wide color gamut
BT.709 95% color gamut with 1.07 billion colors at 10-bit.
04
SuperSign content management
SuperSign CMS, Control, Control+ and Media Editor software.
05
LG ConnectedCare
Listed among the model feature set for management support.
06
Portrait and landscape
Supports portrait and landscape orientation.
07
Surface treatment
28% surface haze to diffuse reflections.
08
Built-in speaker
Built-in speaker listed in the specifications.

Specifications

General
Key FeaturesIPS panel, 350 nits, 1,100:1 contrast, portrait and landscape, SuperSign CMS, SuperSign Control+, LG ConnectedCare
Model86UM3DG-H
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, regulation book, phone to RS232C gender
Display
Bezel Size14.3 mm (even)
Brightness350 nits
Color Depth10-bit, 1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait / Landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Audio
Speaker OutputBuilt-in speaker
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
Power
Power SourceBuilt-in power supply
Physical
Dimensions1926.2 x 1097.2 x 60.6 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.0 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
QR code to LG 86-inch UHD Digital Signage Display – 86UM3DG-H on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
