LGDigital SignageSKU 55EF5K-L

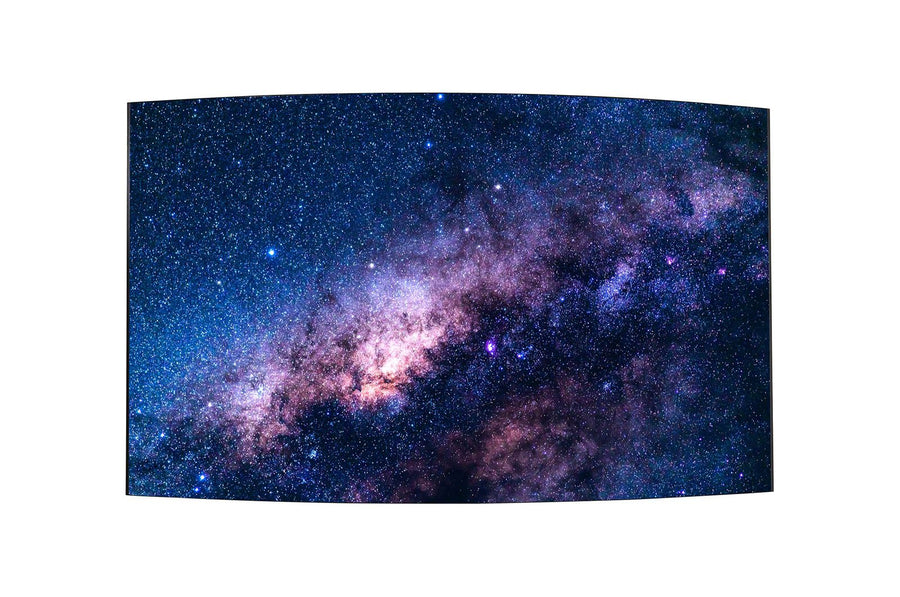

LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5K-L
The LG 55EF5K-L is a 55-inch flexible curved OLED open frame digital signage display for feature walls, showrooms and tiled indoor installations. It offers Full HD resolution, 120 Hz refresh, 150,000:1 contrast and webOS 4.0. Procure.ae can confirm current availability and recommend a successor model in the UAE.
The 55EF5K-L uses a 55-inch OLED panel at 1920 x 1080 with a 16:9 aspect ratio and a 120 Hz refresh rate. Typical brightness is 400 nits at 25% APL and 150 nits at 100% APL, with a 150,000:1 contrast ratio. The panel covers BT.709 120% colour gamut with 10-bit colour depth and a 1 ms grey-to-grey response time. Viewing angles are 178 degrees horizontally and vertically. The manufacturer rates the display for 18 hours a day, 7 days a week with moving content, and the open frame supports landscape and portrait orientation.
The 55EF5K-L is built for tiled and custom indoor installations, with the signage box mounted separately. It runs webOS 4.0 with 16 GB of internal memory, local contents scheduling, video tags, tile mode and screen rotation. Control is through RS232C, RJ45 LAN and IR, with SNMP, Wake on LAN and HDMI-CEC support. The manufacturer data lists a built-in fan and a tilt (face-down) option. The landscape head weighs 5.8 kg and the portrait head weighs 7.0 kg.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits (APL 25%, typical) / 150 n...
Type
Digital Signage Display
- OLED panel
- Fast refresh
- High contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
OLED panel
55-inch, 1920 x 1080 Full HD
02
Fast refresh
120 Hz refresh rate, 1 ms grey-to-grey
03
High contrast
150,000:1 contrast ratio
04
Flexible frame
curved open frame with tilt (face-down)
05
Embedded software
webOS 4.0 with local contents scheduling
06
Tiling
tile mode setting for multi-panel installations
07
Remote control
RS232C, RJ45 LAN, IR and Wake on LAN
Specifications
28 specificationsGeneral
Key FeaturesFlexible curved OLED, 120 Hz refresh, webOS 4.0, local contents scheduling, video tag, tile mode, FAN (built-in), Crestron Connected, Wake on LAN
Model55EF5K-L
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, IR receiver, regulation book, RS232C gender adapter, FFC cables (4), DP cable (2 m), LAN cable (1.5 m), RS232 cable (1.5 m), LC cable (3 m), cabling tape (4)
Display
Aspect Ratio16:9
Bezel SizeOff-bezel 0.6 mm top/bottom, 6.7 mm sides (landscape)
Brightness400 nits (APL 25%, typical) / 150 nits (APL 100%, typical)
Color Depth10-bit (R), 1.07 billion colours
Color GamutBT.709 120%
Contrast Ratio150,000:1
OrientationLandscape and portrait
Panel TechnologyOLED
Refresh Rate120 Hz
Resolution1920 x 1080 (Full HD)
Response Time1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle18 hours/day, 7 days a week (moving content only)
Operating SystemwebOS 4.0
Storage16 GB (internal memory)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In x 1, DP In x 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 x 2, IR In, Audio Out
Physical
Dimensions1224.9 x 696.2 x 38.0 mm (landscape head, with pem-nut)
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Weight17.0 kg (landscape packed)
Weight5.8 kg (landscape head) / 7.0 kg (portrait head)
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5K-L — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 55EF5K-L?
The LG 55EF5K-L has a 55-inch OLED panel with a 1920 x 1080 (Full HD) resolution, a 16:9 aspect ratio and a 120 Hz refresh rate.
Can the LG 55EF5K-L be tiled into a video wall?
Yes. The display includes a tile mode setting, and it can be synchronised over RS232C or local network sync.
Does it support portrait mounting?
Yes. The manufacturer lists landscape and portrait orientation, with separate dimensions and weights for each. Confirm the bracket and bezel layout with the installer before fitting.
Which software does the LG 55EF5K-L work with?
It runs webOS 4.0 with local contents scheduling, group management and Wake on LAN. The manufacturer data also lists SuperSign CMS v3.0, SuperSign Control+ v1.7 and v1.9, and SuperSign WB v3.7.15.
Can I buy the 55EF5K-L in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
