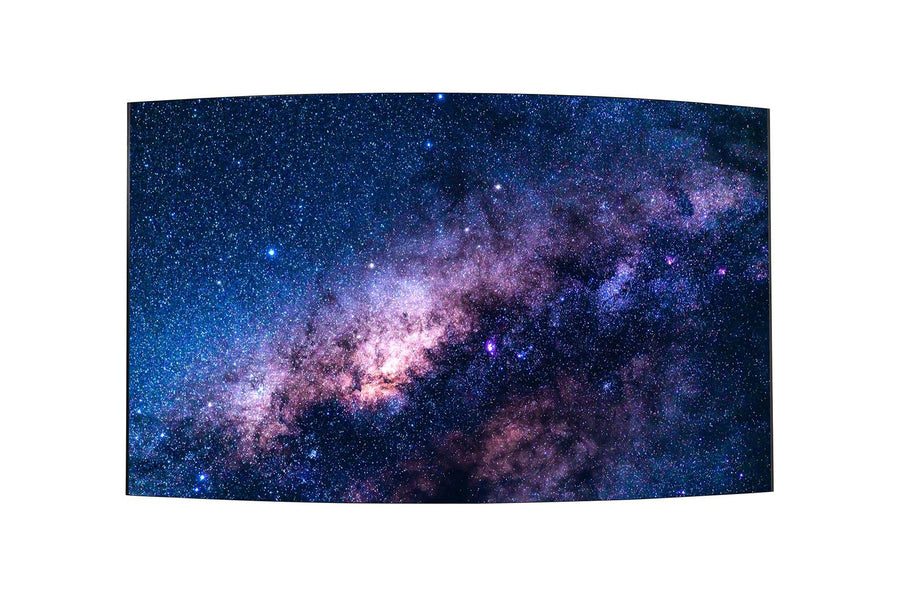

LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5K-L
The LG 55EF5K-L is a 55-inch flexible curved OLED open frame digital signage display for feature walls, showrooms and tiled indoor installations. It offers Full HD resolution, 120 Hz refresh, 150,000:1 contrast and webOS 4.0. Procure.ae can confirm current availability and recommend a successor model in the UAE.
The 55EF5K-L uses a 55-inch OLED panel at 1920 x 1080 with a 16:9 aspect ratio and a 120 Hz refresh rate. Typical brightness is 400 nits at 25% APL and 150 nits at 100% APL, with a 150,000:1 contrast ratio. The panel covers BT.709 120% colour gamut with 10-bit colour depth and a 1 ms grey-to-grey response time. Viewing angles are 178 degrees horizontally and vertically. The manufacturer rates the display for 18 hours a day, 7 days a week with moving content, and the open frame supports landscape and portrait orientation.
The 55EF5K-L is built for tiled and custom indoor installations, with the signage box mounted separately. It runs webOS 4.0 with 16 GB of internal memory, local contents scheduling, video tags, tile mode and screen rotation. Control is through RS232C, RJ45 LAN and IR, with SNMP, Wake on LAN and HDMI-CEC support. The manufacturer data lists a built-in fan and a tilt (face-down) option. The landscape head weighs 5.8 kg and the portrait head weighs 7.0 kg.
Key features
Specifications
| Key Features | Flexible curved OLED, 120 Hz refresh, webOS 4.0, local contents scheduling, video tag, tile mode, FAN (built-in), Crestron Connected, Wake on LAN |
| Model | 55EF5K-L |
| Type | Digital Signage Display |
| What's in the Box | Remote controller (2 batteries), power cord, quick setup guide, IR receiver, regulation book, RS232C gender adapter, FFC cables (4), DP cable (2 m), LAN cable (1.5 m), RS232 cable (1.5 m), LC cable (3 m), cabling tape (4) |
| Aspect Ratio | 16:9 |
| Bezel Size | Off-bezel 0.6 mm top/bottom, 6.7 mm sides (landscape) |
| Brightness | 400 nits (APL 25%, typical) / 150 nits (APL 100%, typical) |
| Color Depth | 10-bit (R), 1.07 billion colours |
| Color Gamut | BT.709 120% |
| Contrast Ratio | 150,000:1 |
| Orientation | Landscape and portrait |
| Panel Technology | OLED |
| Refresh Rate | 120 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 1 ms (G to G), 8 ms (MPRT) |
| Screen Size | 55 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Duty Cycle | 18 hours/day, 7 days a week (moving content only) |
| Operating System | webOS 4.0 |
| Storage | 16 GB (internal memory) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In x 1, DP In x 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 x 2, IR In, Audio Out |
| Dimensions | 1224.9 x 696.2 x 38.0 mm (landscape head, with pem-nut) |
| Operating Humidity | 10% to 80% |
| Operating Temperature | 0 to 40 °C |
| Shipping Weight | 17.0 kg (landscape packed) |
| Weight | 5.8 kg (landscape head) / 7.0 kg (portrait head) |
| Certifications | CB / NRTL, FCC Class A, CE, KC |
