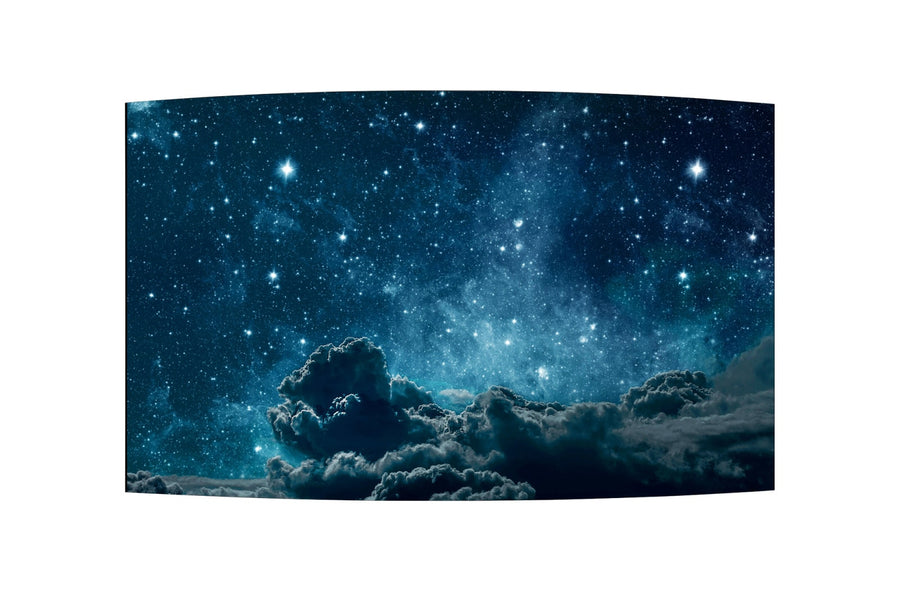

LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5F-L
The LG 55EF5F-L is a 55-inch flexible curved OLED open frame digital signage display for feature walls, showrooms and bespoke indoor installations. It offers Full HD resolution, 150,000:1 contrast and landscape or portrait use. Procure.ae can confirm current availability and recommend a successor model in the UAE.
The 55EF5F-L uses a 55-inch OLED panel at 1920 x 1080 with a 16:9 aspect ratio and a 150,000:1 contrast ratio. Typical brightness is 400 nits at 25% APL and 150 nits at 100% APL. Viewing angles are 178 degrees horizontally and vertically. The manufacturer rates the panel life at 30,000 hours typical and the display for 18 hours a day, 7 days a week with moving video. The open frame can be used in landscape or portrait orientation.
The frame is designed for custom and on-site installations where the signage box is mounted separately, connected with FFC cables. Control is through RS232C, RJ45 LAN and IR, and the unit works with SuperSign CMS and Signage365Care. The head weighs 6.6 kg, and the 55EF5F-L is listed as a flexible curved open frame model.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits (APL 25%, typical) / 150 n...
Type
Digital Signage Display
- OLED panel
- High contrast
- Flexible frame
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
OLED panel
55-inch, 1920 x 1080 Full HD
02
High contrast
150,000:1 contrast ratio
03
Flexible frame
curved open frame design
04
Orientation
landscape and portrait use
05
Control
RS232C, RJ45 LAN and IR inputs
06
Software
SuperSign CMS and Signage365Care support
07
Long life
30,000 hours typical panel life
Specifications
22 specificationsGeneral
Key FeaturesFlexible curved OLED, landscape and portrait, signage box controller, SuperSign CMS, Signage365Care, RS232C and LAN control
Model55EF5F-L
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick setup guide, IR receiver, regulation book, RS232C gender adapter, RS232 cable, FFC cables (4), DP cable, LAN cable, LC cable
Display
Aspect Ratio16:9
Bezel SizeOff-bezel 0.6 mm top/bottom, 6.7 mm sides
Brightness400 nits (APL 25%, typical) / 150 nits (APL 100%, typical)
Contrast Ratio150,000:1
OrientationLandscape and portrait
Panel TechnologyOLED
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle18 hours/day, 7 days a week (moving video)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsRS232C In/Out, RJ45 LAN In/Out, IR In
Power
Power Consumption309 W typical / 318 W maximum
Physical
Dimensions1224.9 x 696.2 x 38.0 mm (head, with pem-nut)
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Weight17 kg (head, packed)
Weight6.6 kg (head)
Downloads
Manufacturer documents for the LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5F-L — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 55EF5F-L?
The LG 55EF5F-L has a 55-inch OLED panel with a 1920 x 1080 (Full HD) resolution and a 16:9 aspect ratio.
Is the LG 55EF5F-L suitable for a curved wall?
Yes. It is a flexible curved open frame display, so it is designed for shaped installations. Confirm the mounting and bend radius with the installer before fitting.
Can the LG 55EF5F-L be controlled over a network?
Yes. It has RS232C in and out, RJ45 LAN in and out, and IR in, and supports SuperSign CMS and Control+ software.
What mounting does the LG 55EF5F-L need?
The head weighs 6.6 kg and the signage box weighs 3.5 kg. The manufacturer lists a 1,350 x 837 x 250 mm carton, and the installation uses the frame and signage box rather than a standard VESA plate.
Can I buy the 55EF5F-L in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
