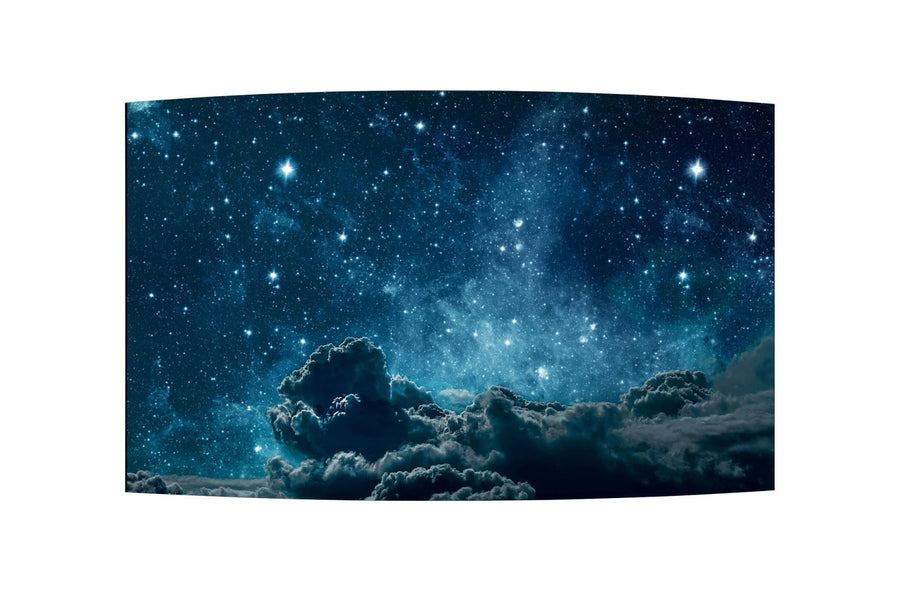

LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5F-L
The LG 55EF5F-L is a 55-inch flexible curved OLED open frame digital signage display for feature walls, showrooms and bespoke indoor installations. It offers Full HD resolution, 150,000:1 contrast and landscape or portrait use. Procure.ae can confirm current availability and recommend a successor model in the UAE.
The 55EF5F-L uses a 55-inch OLED panel at 1920 x 1080 with a 16:9 aspect ratio and a 150,000:1 contrast ratio. Typical brightness is 400 nits at 25% APL and 150 nits at 100% APL. Viewing angles are 178 degrees horizontally and vertically. The manufacturer rates the panel life at 30,000 hours typical and the display for 18 hours a day, 7 days a week with moving video. The open frame can be used in landscape or portrait orientation.
The frame is designed for custom and on-site installations where the signage box is mounted separately, connected with FFC cables. Control is through RS232C, RJ45 LAN and IR, and the unit works with SuperSign CMS and Signage365Care. The head weighs 6.6 kg, and the 55EF5F-L is listed as a flexible curved open frame model.
Key features
Specifications
| Key Features | Flexible curved OLED, landscape and portrait, signage box controller, SuperSign CMS, Signage365Care, RS232C and LAN control |
| Model | 55EF5F-L |
| Type | Digital Signage Display |
| What's in the Box | Remote controller, power cord, quick setup guide, IR receiver, regulation book, RS232C gender adapter, RS232 cable, FFC cables (4), DP cable, LAN cable, LC cable |
| Aspect Ratio | 16:9 |
| Bezel Size | Off-bezel 0.6 mm top/bottom, 6.7 mm sides |
| Brightness | 400 nits (APL 25%, typical) / 150 nits (APL 100%, typical) |
| Contrast Ratio | 150,000:1 |
| Orientation | Landscape and portrait |
| Panel Technology | OLED |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Size | 55 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Duty Cycle | 18 hours/day, 7 days a week (moving video) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | RS232C In/Out, RJ45 LAN In/Out, IR In |
| Power Consumption | 309 W typical / 318 W maximum |
| Dimensions | 1224.9 x 696.2 x 38.0 mm (head, with pem-nut) |
| Operating Humidity | 10% to 80% |
| Operating Temperature | 0 to 40 °C |
| Shipping Weight | 17 kg (head, packed) |
| Weight | 6.6 kg (head) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
