InFocusMeeting Room SolutionsSKU INOPS6

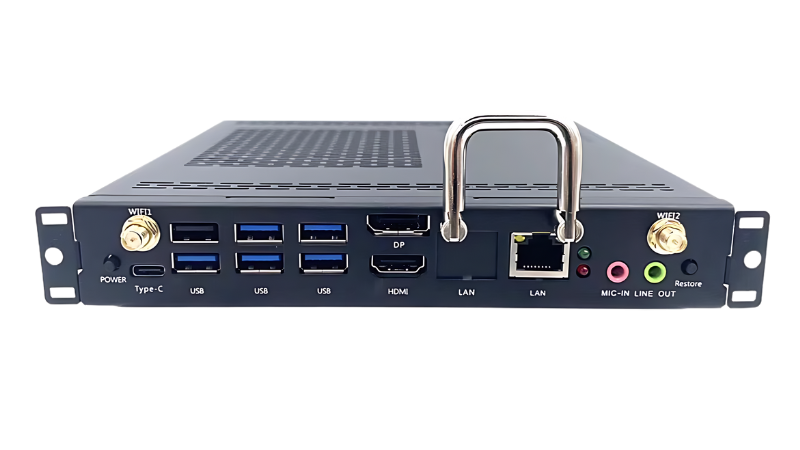

InFocus OPS Slot-In PC Module – INOPS6
The InFocus INOPS6 is an OPS slot-in PC module with an Intel Core i5-12450H processor, 8 GB DDR4 RAM and a 256 GB NVMe SSD. The manufacturer lists it for JTouch Series 13 displays, and it runs Windows 11 Pro. Procure.ae supplies the INOPS6 across the UAE.
The INOPS6 is an OPS (Open Pluggable Specification) module that connects to the rear of compatible InFocus interactive displays through an 80-pin JAE connector. It runs Windows 11 Pro on an Intel Core i5-12450H processor with Intel UHD Graphics for 12th Gen Intel Processors, 8 GB of DDR4 2666 MHz RAM and a 256 GB NVMe SSD. Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, Bluetooth 5.2 and RJ45 Ethernet provide wired and wireless networking.
Type
OPS Slot-In PC Module
Weight
1.2 kg
- Intel Core i5 processor
- 8 GB memory, 256 GB NVMe storage
- Windows 11 Pro
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5 processor
Intel Core i5-12450H with Intel UHD Graphics for 12th Gen Intel Processors.
02
8 GB memory, 256 GB NVMe storage
8 GB DDR4 2666 MHz RAM and a 256 GB NVMe SSD.
03
Windows 11 Pro
The module runs Windows 11 Pro.
04
Wi-Fi 6 and Bluetooth 5.2
Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, plus Bluetooth 5.2.
05
Multiple USB ports
Two USB 3.1, three USB 3.0, USB 2.0, USB Type-C (USB 3.1) and microphone input.
06
HDMI 2.0 and DisplayPort 1.4
Outputs include HDMI 2.0 (4K/60 Hz), DisplayPort 1.4 and line-out.
Specifications
20 specificationsGeneral
CompatibilityInFocus JTouch Series 13
ModelINOPS6
TypeOPS Slot-In PC Module
Performance
Operating SystemWindows 11 Pro
ProcessorIntel Core i5-12450H
RAM8 GB DDR4 2666 MHz
Storage256 GB NVMe SSD
Storage Conditions-40 to 80 °C
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Ethernet)
Inputs2 x USB 3.1, 3 x USB 3.0, USB 2.0, USB Type-C (USB 3.1), microphone in
OutputsHDMI 2.0 (4K/60 Hz), DisplayPort 1.4, line-out
Wi-FiIntel Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz
Power
Power Consumption89 W
Power Source19 V DC, 4.7 A
Standby Power0.5 W
Physical
Dimensions195 x 30 x 180 mm
Operating Humidity10% to 95% RH, non-condensing
Operating Temperature0 to 45 °C
Weight1.2 kg
Downloads
Manufacturer documents for the InFocus OPS Slot-In PC Module – INOPS6 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which InFocus displays is the INOPS6 compatible with?
The manufacturer lists the INOPS6 as compatible with JTouch Series 13 only. Confirm your display model before ordering, or ask Procure.ae to check compatibility for your exact panel. The module runs Windows 11 Pro, so check the operating system needed for your deployment.
Does the INOPS6 run Windows 11?
Yes. The INOPS6 runs Windows 11 Pro on an Intel Core i5-12450H processor with 8 GB of DDR4 RAM and a 256 GB NVMe SSD. The manufacturer's text also mentions Windows 11 Enterprise OPS modules in the same range.
How does the INOPS6 connect to the display?
The module connects through an 80-pin JAE rear connector. The manufacturer lists a 19 V DC, 4.7 A power supply and power consumption of 89 W, with 0.5 W in standby mode.
Can I buy the INOPS6 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
