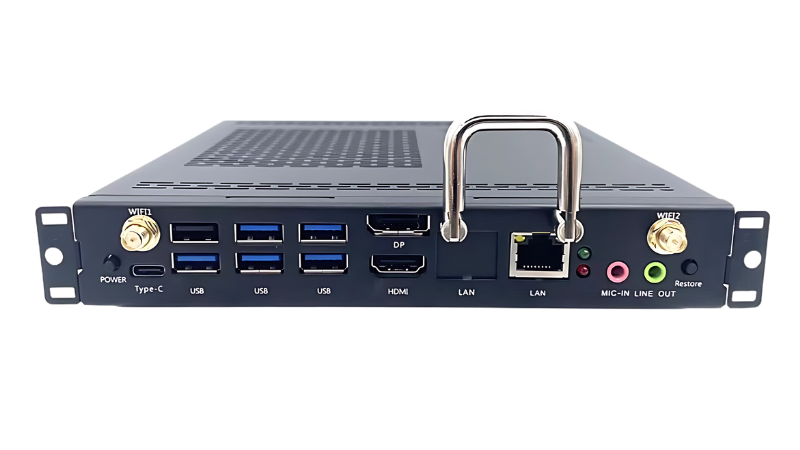

InFocus OPS Slot-In PC Module – INOPS6

InFocus OPS Slot-In PC Module – INOPS6

The InFocus INOPS6 is an OPS slot-in PC module with an Intel Core i5-12450H processor, 8 GB DDR4 RAM and a 256 GB NVMe SSD. The manufacturer lists it for JTouch Series 13 displays, and it runs Windows 11 Pro. Procure.ae supplies the INOPS6 across the UAE.

The INOPS6 is an OPS (Open Pluggable Specification) module that connects to the rear of compatible InFocus interactive displays through an 80-pin JAE connector. It runs Windows 11 Pro on an Intel Core i5-12450H processor with Intel UHD Graphics for 12th Gen Intel Processors, 8 GB of DDR4 2666 MHz RAM and a 256 GB NVMe SSD. Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, Bluetooth 5.2 and RJ45 Ethernet provide wired and wireless networking.

Type
OPS Slot-In PC Module
Weight
1.2 kg

Key features

01
Intel Core i5 processor
Intel Core i5-12450H with Intel UHD Graphics for 12th Gen Intel Processors.
02
8 GB memory, 256 GB NVMe storage
8 GB DDR4 2666 MHz RAM and a 256 GB NVMe SSD.
03
Windows 11 Pro
The module runs Windows 11 Pro.
04
Wi-Fi 6 and Bluetooth 5.2
Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, plus Bluetooth 5.2.
05
Multiple USB ports
Two USB 3.1, three USB 3.0, USB 2.0, USB Type-C (USB 3.1) and microphone input.
06
HDMI 2.0 and DisplayPort 1.4
Outputs include HDMI 2.0 (4K/60 Hz), DisplayPort 1.4 and line-out.

Specifications

General
CompatibilityInFocus JTouch Series 13
ModelINOPS6
TypeOPS Slot-In PC Module
Performance
Operating SystemWindows 11 Pro
ProcessorIntel Core i5-12450H
RAM8 GB DDR4 2666 MHz
Storage256 GB NVMe SSD
Storage Conditions-40 to 80 °C
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Ethernet)
Inputs2 x USB 3.1, 3 x USB 3.0, USB 2.0, USB Type-C (USB 3.1), microphone in
OutputsHDMI 2.0 (4K/60 Hz), DisplayPort 1.4, line-out
Wi-FiIntel Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz
Power
Power Consumption89 W
Power Source19 V DC, 4.7 A
Standby Power0.5 W
Physical
Dimensions195 x 30 x 180 mm
Operating Humidity10% to 95% RH, non-condensing
Operating Temperature0 to 45 °C
Weight1.2 kg
