InFocusMeeting Room SolutionsSKU INOPS5

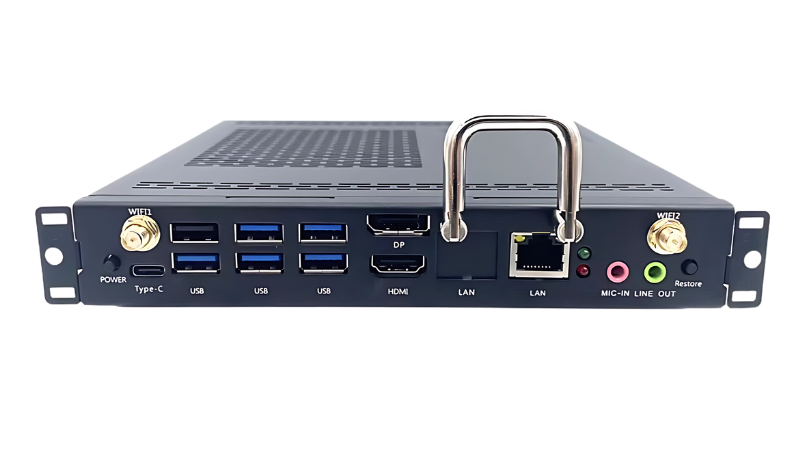

InFocus OPS Slot-In PC Module – INOPS5
The InFocus INOPS5 is a Windows 11 Enterprise OPS slot-in PC module with an Intel Core i5-12450H processor, 8 GB DDR4 RAM and a 256 GB SSD. It fits compatible InFocus JTouch Series 13, 10 and 12 interactive displays, excluding the SP5512, and turns the screen into an all-in-one computer. Procure.ae supplies the INOPS5 across the UAE.
The INOPS5 is an OPS (Open Pluggable Specification) module that connects to compatible InFocus interactive displays through an 80-pin JAE rear connector. It runs Windows 11 Enterprise on an Intel Core i5-12450H processor with Intel UHD Graphics for 12th Gen Intel Processors, 8 GB of DDR4 2666 MHz RAM and a 256 GB SSD. Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, Bluetooth 4.2 and 10/100/1000 Gigabit Ethernet provide wired and wireless networking.
Type
OPS Slot-In PC Module
Weight
1.2 kg
- Intel Core i5 processor
- 8 GB memory, 256 GB storage
- Windows 11 Enterprise
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5 processor
Intel Core i5-12450H with Intel UHD Graphics for 12th Gen Intel Processors.
02
8 GB memory, 256 GB storage
8 GB DDR4 2666 MHz RAM and a 256 GB SSD.
03
Windows 11 Enterprise
The module runs Windows 11 Enterprise.
04
Gigabit Ethernet
10/100/1000 Gigabit Ethernet plus Intel Wi-Fi 6 on 2.4 GHz and 5 GHz.
05
USB and audio connectivity
Five USB 3.0 ports, USB 2.0, USB Type-C 2.0 and microphone input.
06
HDMI 2.0 and DisplayPort 1.4
Outputs include HDMI 2.0 (4K/60 Hz) and DisplayPort 1.4.
Specifications
20 specificationsGeneral
CompatibilityInFocus JTouch Series 13, 10 and 12 (excluding SP5512)
ModelINOPS5
TypeOPS Slot-In PC Module
Performance
Operating SystemWindows 11 Enterprise
ProcessorIntel Core i5-12450H
RAM8 GB DDR4 2666 MHz
Storage256 GB SSD
Storage Conditions-40 to 80 °C
Connectivity
BluetoothBluetooth 4.2
Ethernet10/100/1000 Gigabit Ethernet
Inputs5 x USB 3.0, USB 2.0, microphone in, USB Type-C 2.0
OutputsHDMI 2.0 (4K/60 Hz), DisplayPort 1.4, audio out
Wi-FiIntel Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz
Power
Power Consumption89 W
Power Source19 V DC, 4.7 A
Standby Power0.5 W
Physical
Dimensions195 x 30 x 180 mm
Operating Humidity10% to 95% RH, non-condensing
Operating Temperature0 to 45 °C
Weight1.2 kg
Downloads
Manufacturer documents for the InFocus OPS Slot-In PC Module – INOPS5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which InFocus displays is the INOPS5 compatible with?
The INOPS5 is compatible with InFocus JTouch Series 13, 10 and 12 interactive displays, excluding the SP5512. Check your display model before ordering, or ask Procure.ae to confirm compatibility for your exact panel.
Does the INOPS5 run Windows 11?
Yes. The INOPS5 runs Windows 11 Enterprise on an Intel Core i5-12450H processor with 8 GB of DDR4 RAM and a 256 GB SSD, so the display can run Windows applications from the module.
How does the INOPS5 connect to the display?
The module connects through an 80-pin JAE rear connector. The manufacturer lists a 19 V DC, 4.7 A power supply and power consumption of 89 W, with 0.5 W in standby mode.
