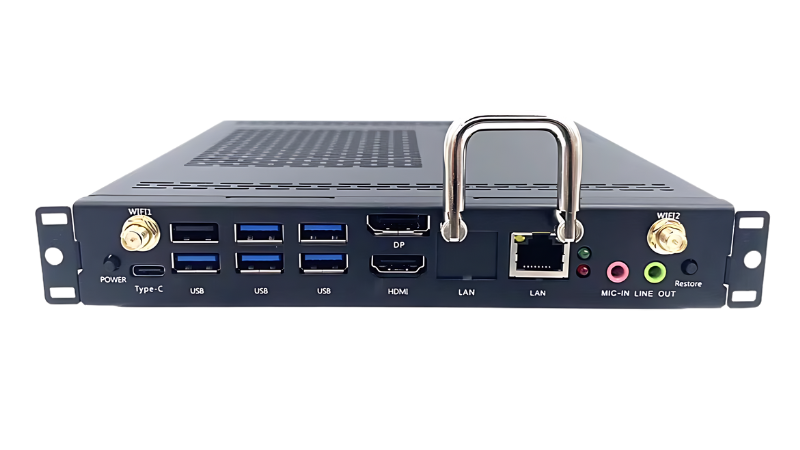

InFocus OPS Slot-In PC Module – INOPS5

The InFocus INOPS5 is a Windows 11 Enterprise OPS slot-in PC module with an Intel Core i5-12450H processor, 8 GB DDR4 RAM and a 256 GB SSD. It fits compatible InFocus JTouch Series 13, 10 and 12 interactive displays, excluding the SP5512, and turns the screen into an all-in-one computer. Procure.ae supplies the INOPS5 across the UAE.

The INOPS5 is an OPS (Open Pluggable Specification) module that connects to compatible InFocus interactive displays through an 80-pin JAE rear connector. It runs Windows 11 Enterprise on an Intel Core i5-12450H processor with Intel UHD Graphics for 12th Gen Intel Processors, 8 GB of DDR4 2666 MHz RAM and a 256 GB SSD. Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, Bluetooth 4.2 and 10/100/1000 Gigabit Ethernet provide wired and wireless networking.

Type

OPS Slot-In PC Module

Weight

1.2 kg

Key features

Intel Core i5 processor

Intel Core i5-12450H with Intel UHD Graphics for 12th Gen Intel Processors.

8 GB memory, 256 GB storage

8 GB DDR4 2666 MHz RAM and a 256 GB SSD.

Windows 11 Enterprise

The module runs Windows 11 Enterprise.

Gigabit Ethernet

10/100/1000 Gigabit Ethernet plus Intel Wi-Fi 6 on 2.4 GHz and 5 GHz.

USB and audio connectivity

Five USB 3.0 ports, USB 2.0, USB Type-C 2.0 and microphone input.

HDMI 2.0 and DisplayPort 1.4

Outputs include HDMI 2.0 (4K/60 Hz) and DisplayPort 1.4.

Specifications

General
Compatibility	InFocus JTouch Series 13, 10 and 12 (excluding SP5512)
Model	INOPS5
Type	OPS Slot-In PC Module

Performance
Operating System	Windows 11 Enterprise
Processor	Intel Core i5-12450H
RAM	8 GB DDR4 2666 MHz
Storage	256 GB SSD
Storage Conditions	-40 to 80 °C

Connectivity
Bluetooth	Bluetooth 4.2
Ethernet	10/100/1000 Gigabit Ethernet
Inputs	5 x USB 3.0, USB 2.0, microphone in, USB Type-C 2.0
Outputs	HDMI 2.0 (4K/60 Hz), DisplayPort 1.4, audio out
Wi-Fi	Intel Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz

Power
Power Consumption	89 W
Power Source	19 V DC, 4.7 A
Standby Power	0.5 W

Physical
Dimensions	195 x 30 x 180 mm
Operating Humidity	10% to 95% RH, non-condensing
Operating Temperature	0 to 45 °C
Weight	1.2 kg
