HikvisionMeeting Room SolutionsSKU DS-D5SC4B-B
Hikvision Wireless Dongle for Interactive Flat Panels – DS-D5SC4B-B

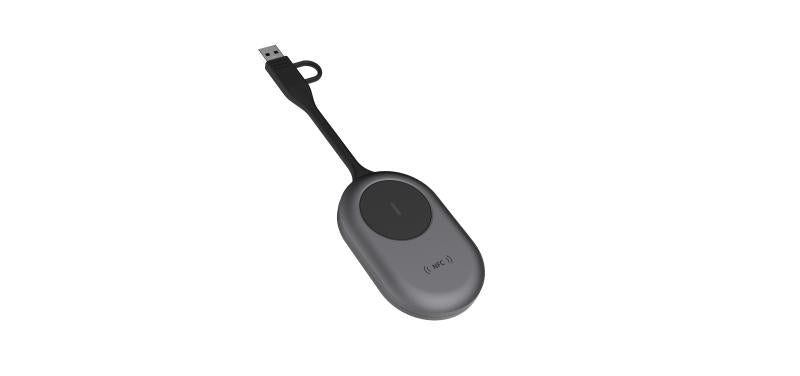

The Hikvision DS-D5SC4B-B is a wireless screen-sharing dongle for Hikvision interactive flat panels. It supports Wi-Fi 6 on 2.4 GHz and 5 GHz, resolutions up to 4K and NFC mirroring with Android phones. Procure.ae supplies the DS-D5SC4B-B across the UAE, with delivery and quotes.
The DS-D5SC4B-B connects to a Hikvision interactive flat panel through a Type-C interface with plug-and-play setup. The manufacturer lists support for Windows and Mac OS, with reverse control from Windows or Mac. The specifications list 1080p and 4K resolution, 10-bit color depth and H.264 encoding, with a transmission delay of up to 200 ms. The dongle has 512 MB of memory and 4 GB of built-in storage.
The dongle includes Wi-Fi 6 (IEEE 802.11 a/g/n/ac/ax) on 2.4 GHz and 5 GHz, and an NFC module that supports screen mirroring with Android phones. Audio is listed at 48 kHz sampling, 16-bit depth and dual channel AAC encoding. It is powered through a Type-C or Type-A connection rated 5 V / 900 mA, drawing 2.8 W, and it operates from 0 to 40 °C at 10% to 90% RH.
Resolution
1080p and 4K
Type
Wireless Screen Sharing Dongle
Weight
90 g (net)
- Wireless screen sharing
- Up to 4K resolution
- Dual-band Wi-Fi 6
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wireless screen sharing
quick screen mirroring on Hikvision interactive flat panels.
02
Up to 4K resolution
1080p and 4K support with 10-bit color depth.
03
Dual-band Wi-Fi 6
supports 2.4 GHz and 5 GHz, IEEE 802.11 a/g/n/ac/ax.
04
NFC mirroring
screen mirroring with Android phones through an NFC module.
05
Windows and Mac support
reverse control from Windows or Mac.
06
Plug-and-play Type-C
Type-C interface with plug-and-play setup.
Specifications
22 specificationsGeneral
CompatibilityHikvision interactive flat panels; Windows and Mac OS; Android phones via NFC
Key FeaturesWireless screen sharing, Wi-Fi 6, NFC mirroring, 4K support
ModelDS-D5SC4B-B
TypeWireless Screen Sharing Dongle
What's in the BoxHost x 1, Manual x 1
Display
Color Depth10-bit
Resolution1080p and 4K
Performance
RAM512 MB
Storage4 GB built-in
Audio
Audio48 kHz, 16-bit, AAC, dual channel
Connectivity
ConnectivityWi-Fi 6, NFC, Type-C
ProtocolsIEEE 802.11 a/g/n/ac/ax
Wi-FiWi-Fi 6, 2.4 GHz and 5 GHz
Power
Power Consumption2.8 W
Power SourceType-C / Type-A, 5 V / 900 mA
Transfer Time≤ 200 ms
Physical
Dimensions199.12 x 58.02 x 17.30 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions237 x 92 x 31 mm
Shipping Weight210 g (gross)
Weight90 g (net)
Downloads
Manufacturer documents for the Hikvision Wireless Dongle for Interactive Flat Panels – DS-D5SC4B-B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the DS-D5SC4B-B compatible with Hikvision interactive flat panels?
Yes. The manufacturer lists quick screen mirroring on Hikvision interactive flat panels as a feature. Confirm your exact panel model with Procure.ae before ordering, through WhatsApp or by email, and ask for the current setup requirements.
Does the dongle support 4K and which operating systems?
It supports resolutions up to 4K, and the manufacturer lists Windows and Mac OS support. The specifications list 1080p and 4K resolution, 10-bit color depth and H.264 encoding, with reverse control available from Windows or Mac.
Can it mirror an Android phone?
Yes. The dongle has an NFC module that supports NFC screen mirroring with Android phones, according to the manufacturer features list. The manufacturer specifications do not state iPhone or iPad mirroring.
Can I buy the DS-D5SC4B-B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
